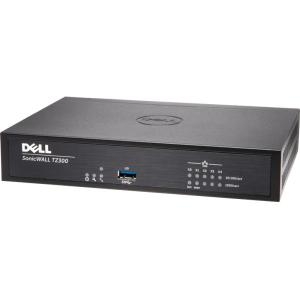

Dell Sonicwall Tz300 01-ssc-0215

$815.00
SKU: 216806
MPN: 01-SSC-0215 Link
Manufacturer: http://www.dell.com
Brand: Dell
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

TZ300 Network Security Firewall - Higher broadband demands high-speed protection.
These affordable firewalls let small businesses and home offices take full advantage of high-speed broadband, without compromising the highly effective protection needed to stop cyberattacks.

The TZ300 offers affordable protection for small businesses that need enterprise-level protection.

  • High-performance security engine.
  • Advanced IPSec and SSL VPN.
  • Streamlined GUI and advanced management.
  • Content/URL filtering.
  • Intrusion prevention.
  • Gateway anti-virus and anti-spyware.
  • SonicWALL Mobile Connect app.
  • Wireless network security.

Firewall Product Features

5 x 1 GbE Copper Interfaces
1 - 25
750 Mbps
50 - 100 Mbps
45 Mbps
300 Mbps
200 Mbps
50,000 (50,000 with DPI)
25
10
1 (10 Max)
1 (50 Max)
8
30-Day FREE Trial
30-Day FREE Trial
30-Day FREE Trial
30-Day FREE Trial
30-Day FREE Trial
30-Day FREE Trial

Warranty & Support

1-Yr hardware/no support or firmware updates
None, optional 24x7 or 8x5
OVERVIEW 　
Operating system SonicOS 6.2.x
Security Processor 2x800MHz
Memory (RAM) 1GB
1 GbE Copper interfaces 5
Expansion USB
Firewall inspection throughput 750 Mbps
Full DPI throughput 100 Mbps
Application inspection throughput 300 Mbps
IPS throughput 300 Mbps
Anti-malware inspection throughput 100 Mbps
IMIX throughput 200 Mbps
SSL Inspection and Decryption (DPI SSL) 45 Mbps
IPSec VPN throughput 300 Mbps
Connections per second 5,000/sec
Maximum connections (SPI) 50,000
Maximum connections (DPI) 50,000
Single Sign On (SSO) Users 500
VLAN interfaces 25
SonicPoints supported (Maximum) 8
VPN 　
Site-to-Site VPN Tunnels 10
IPSec VPN clients (Maximum) 1 (10)
SSL VPN licenses (Maximum) 1 (50)
Virtual assist bundled (Maximum) 1 (30-day trial)
Encryption/Authentication DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14
Route-based VPN RIP, OSPF
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for Dell SonicWALL-to-Dell SonicWALL VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit
NetExtender Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Windows 8.1 (Embedded)
SECURITY SERVICES 　
Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Enforced Client Anti-Virus and Anti-Spyware McAfee®
Comprehensive Anti-Spam Service Supported
Application Intelligence and Control Yes
Application Visualization Yes
NETWORKING 　
IP address assignment Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing, multicast
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
Local user database 150
VoIP Full H.323v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications VPNC, IPv6 (Phase 2)
Certifications pending Common Criteria NDPP, FIPS 140-2 (with Suite B) Level 2, ICSA Firewall, ICSA Anti-virus, UC APL
Common Access Card (CAC) Supported
High Availability Active/Standby
HARDWARE 　
Form factor Desktop
Power Supply (W) 24W external
Maximum power consumption (W) 6.9 / 12.0
Input power 100 to 240 VAC, 50-60 Hz, 1 A
Total heat dissipation 23.5 / 40.9 BTU
Dimensions 3.5x13.4x19cm
Weight 0.73 kg / 1.61 lbs 0.84 kg / 1.85 lbs
WEEE weight 1.15 kg / 2.53 lbs 1.26 kg / 2.78 lbs
Shipping weight 1.37 kg / 3.02 lbs 1.48 kg / 3.26 lbs
MTBF (Years) 28 / 14
Environment 40-105° F, 0-40° C
Humidity 5-95% non-condensing
REGULATORY 　
Regulatory Model (Wired) APL28-0B4
Major regulatory compliance (Wired Models) "FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, KCC/MSIP"
Regulatory Model (Wireless) APL28-0B5
Major regulatory compliance (Wireless Models) FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH
INTEGRATED WIRELESS 　
Standards 802.11a/b/g/n/ac (WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS
Frequency bands 802.11a: 5.180-5.825 GHz 802.11b/g: 2.412-2.472 GHz 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz 802.11ac: 2.412-2.472 GHz, 5.180-5.825 GHz
Operating Channels 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only) 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64
Transmit output power Based on the regulatory domain specified by the system administrator
Transmit power control Supported
Data rates supported 802.11a: 6,9,12,18,24,36,48,54 Mbps per channel 802.11b: 1,2,5.5,11 Mbps per channel 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel
Modulation technology spectrum 802.11a: Orthogonal Frequency Division Multiplexing (OFDM) 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM)
