Lenovo Storage V3700 V2 1.8tb 2.5inch 10k Hdd 01de355
$1,319.00
| SKU: | 225286 |
|---|---|
| MPN: | 01DE355 Link |
| Manufacturer: | http://shop.lenovo.com/ae/en/ |
| Brand: | Lenovo |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
Highlights
- Customize your storage system with flexible software and hardware options
- Boost performance with next-generation Lenovo Storage V3700 V2
- Implement configurations for high availability and data mobility
- Simplify management with an industry-leading graphical user interface
Specifications
▼

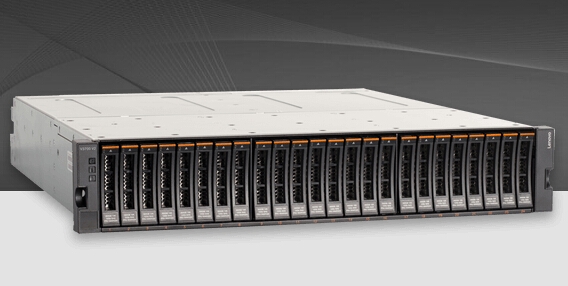

LENOVO STORAGE V3700 V2 1.8TB 2.5INCH 10K HDD 01DE355
| DESCRIPTION | SPECIFICATIONS |
|---|---|
| Control Enclosures | 6535C1D Storage V3700 V2 LFF Control Enclosure 6535C2D Storage V3700 V2 SFF Control Enclosure |
| Expansion Enclosures | 6535N1F Lenovo Storage V3700 V2 LFF Expansion Enclosure 6535N2F Lenovo Storage V3700 V2 SFF Expansion Enclosure |
| Single or Dual Controller | Dual |
| Connectivity (standard) | 1Gb iSCSI |
| Connectivity (optional) | 16Gb Fibre Channel, 12Gb SAS, 10Gb iSCSI/FCoE, 1Gb iSCSI |
| Processor | Two-core, two-thread |
| Number of Processors | Two |
| Cache (per system) | 16GB |
| Drives Supported | SFF 2.5-inch disk drives: 300GB, 600GB @ 15,000rpm 900GB, 1.2TB, 1.8TB @ 10,000rpm 2TB @ 7,200rpm NL SAS LFF 3.5-inch disk drives: 300GB, 600GB @ 15,000rpm, SAS (2.5-inch drive in a 3.5-inch drive carrier) 900GB, 1.2TB, 1.8TB @ 10,000rpm, SAS (2.5-inch drive in a 3.5-inch drive carrier) 4TB, 6TB, 8TB @ 7,200rpm SSD 2.5-inch drives: 400GB, 800GB, 1.6TB, 3.2TB |
| Maximum Drives Supported | Max of 240 drives per system with 9 expansion enclosures: SFF enclosure: 24 x 2.5-inch drives, LFF enclosure: 12 x 3.5-inch drives |
| Software | IBM Spectrum Virtualize |
| User Interface | Web-based GUI |
| RAID Levels | RAID 0, 1, 5, 6, 10, distributed |
| Fans and Power Supplies | Fully redundant, hot-swappable |
| Rack Support | Standard 19-inch |
| Advanced Functions Included With Each System |
|
| Additional Available Advanced Functions | Easy Tier, FlashCopy, Remote mirroring |
| Warranty | 3-year limited warranty with optional upgrades available |
| Control Enclosures | 6535C3D Storage V3700 V2 XP LFF Control Enclosure 6535C4D Storage V3700 V2 XP SFF Control Enclosure |
| Expansion Enclosures | 6535N1F Lenovo Storage V3700 V2 LFF Expansion Enclosure 6535N2F Lenovo Storage V3700 V2 SFF Expansion Enclosure |
| Single or Dual Controller | Dual |
| Connectivity (standard) | 12Gb SAS |
| Connectivity (optional) | 16Gb Fibre Channel, 12Gb SAS, 10Gb iSCSI.FCoE, 1Gb iSCSI |
| Processor | Two-core, four-thread |
| Number of Processors | Two |
| Cache (per system) | 16GB or 32GB |
| Drives Supported | SFF 2.5-inch disk drives: 300GB, 600GB @ 15,000rpm 900GB, 1.2TB, 1.8TB @ 10,000rpm 2TB @ 7,200rpm NL SAS LFF 3.5-inch disk drives: 300GB, 600GB @ 15,000rpm, SAS (2.5-inch drive in a 3.5-inch drive carrier) 900GB, 1.2TB, 1.8TB @ 10,000rpm, SAS (2.5-inch drive in a 3.5-inch drive carrier) 4TB, 6TB, 8TB @ 7,200rpm SSD 2.5-inch drives: 400GB, 800GB, 1.6TB, 3.2TB |
| Maximum Drives Supported | Max of 240 drives per system with 9 expansion enclosures: SFF enclosure: 24 x 2.5-inch drives, LFF enclosure: 12 x 3.5-inch drives |
| Software | IBM Spectrum Virtualize |
| User Interface | Web-based GUI |
| RAID Levels | RAID 0, 1, 5, 6, 10, distributed |
| Fans and Power Supplies | Fully redundant, hot-swappable |
| Rack Support | Standard 19-inch |
| Advanced Functions Included With Each System |
|
| Additional Available Advanced Functions | Easy Tier, FlashCopy, Remote mirroring |
| Warranty | 3-year limited warranty with optional upgrades available |
