QUANTITY IN PACK	100
CONDUCTOR SIZE	2.5mm²
STRANDING METRIC	7/0.67
ID SIZE	2.4
FULL LENGTH	22
MATERIAL	Copper Grade C11000
CONDUCTIVE MATERIAL	Copper 99.9% pure Oxygen content 30 p.p.m Max. Tensile strength 205 Mpa Min Ductile rating 40% Final metal state fully annealed Electroplating material tin 99.9% pure Other metals lead + antimony Thickness 5 -10 microns
TOTAL CONDUCTIVITY	99.9% IACS
TOTAL RESISTIVITY	1.72 micro-ohm cm
OPERATING TEMPERATURE	-55°C to 155°C due to oxygen-free copper
COMPLIANCES	AS/NZS4325 Part 1:1995

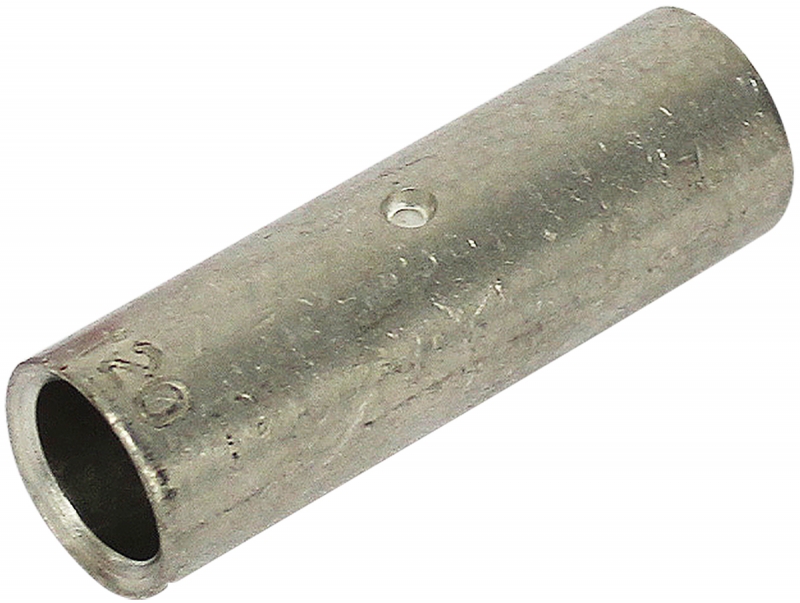

COPPER CRIMP LINK 2.5MM² - 100 PACK Copper cable lugs are used to terminate the ends of the electrical cable so they can be connected to other electrical equipment, such as busbars and electric motors. Cable lugs are highly conductive and can handle very high currents. Our range of Copper Lugs/Links complies to Australian & New Zealand standard AS/NZS4325 Part 1:1995. Features and Benefits Wide range of sizes Can be crimped using handheld crimper or hydraulic crimper Easy insertion of a cable Specifications QUANTITY IN PACK 100 CONDUCTOR SIZE 2.5mm² STRANDING METRIC 7/0.67 ID SIZE 2.4 FULL LENGTH 22 MATERIAL Copper Grade C11000 CONDUCTIVE MATERIAL Copper 99.9% pureOxygen content 30 p.p.m Max.Tensile strength 205 Mpa MinDuctile rating 40%Final metal state fully annealedElectroplating material tin 99.9% pureOther metals lead + antimonyThickness 5 -10 microns TOTAL CONDUCTIVITY 99.9% IACS TOTAL RESISTIVITY 1.72 micro-ohm cm OPERATING TEMPERATURE -55°C to 155°C due to oxygen-free copper COMPLIANCES AS/NZS4325 Part 1:1995 Why 4Cabling? 100% Aussie Owned and Operated Expert Advice and Sales Team Trusted by Over 100,000 Aussie Customers ISO 9001, NSW & QLD Government Approved Supplier Massive Stock Levels, Ready to Go Lightning Fast Delivery Nationwide Warranty & Easy Return Policy Secure Online Shopping 24/7
