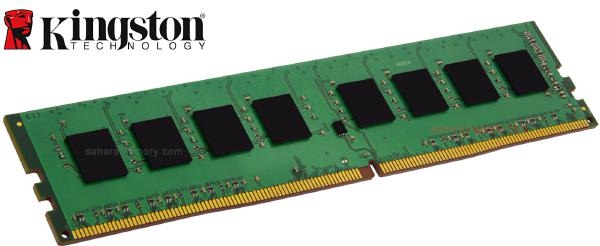

Kingston Ddr4 8Gb 2400Mhz Non Ecc Memory Ram Dimm Kvr24N17S8/8
$54.00
| SKU: | 275978 |
|---|---|
| MPN: | KVR24N17S8/8 Link |
| Manufacturer: | https://www.kingston.com |
| Brand: | Kingston |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
Specifications
▼
Vendor Info
▼
The KVR24N17S8/8 is a 1G x 64-bit (8GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
⚫Power Supply: VDD=1.2V Typical
⚫VDDQ = 1.2V Typical
⚫VPP - 2.5V Typical
⚫VDDSPD=2.2V to 3.6V
⚫Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
⚫Low-power auto self refresh (LPASR)
⚫Data bus inversion (DBI) for data bus
⚫Power Supply: VDD=1.2V Typical
⚫VDDQ = 1.2V Typical
⚫VPP - 2.5V Typical
⚫VDDSPD=2.2V to 3.6V
⚫Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
⚫Low-power auto self refresh (LPASR)
⚫Data bus inversion (DBI) for data bus
