main product photo

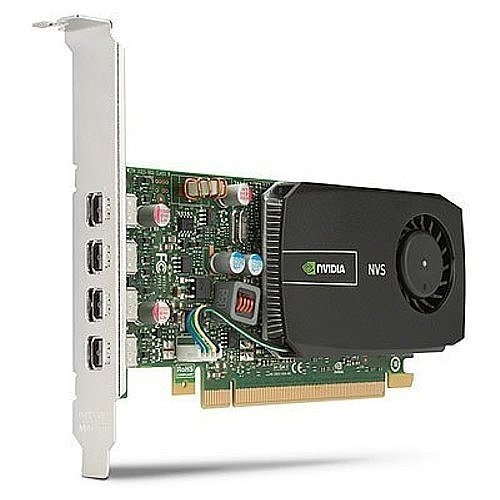

Lenovo Nvidia Nvs 510 2gb Graphics Card By (4 X Mini-dp) 0b47077

$840.00
SKU: 228908
MPN: 0B47077 Link
Manufacturer: http://www.lenovo.com
Brand: Lenovo
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

Overview

The NVIDIA NVS 510 offers the latest in graphics and display technologies along with industry-leading, multi-display management capabilities in a power-friendly, low-profile form factor. This makes it the ideal graphics solution for professionals who need to efficiently visualize and digest a great deal of information in the financial trading, command and control, and digital-signage markets. Four compact mini DisplayPort connectors with a custom built-in retention mechanism, let the NVIDIA NVS 510 drive ultra-high resolution displays up to 3,840 x 2,160 at 60Hz. Plus, it supports advanced DisplayPort 1.2 features like Multi-Stream Technology and Stream Cloning, which enables efficient cable management, as well as cost-effective multi-display installations.

Tech Specs

Part number

0B47077
Ship Group

- NVIDIA NVS 510 2GB Graphics Card - 4 x Mini DisplayPort to DisplayPort Adapter - Low profile bracket - Warranty poster - CD
Form Factor

Low Profile
Video on Planar

No
Bus

PCI Express 2.0 ×16
Chipset

Kepler
Data Width

--
Description

NVIDIA Quadro NVS510
Graphics Priority

1.0
Max Resolution w/max video RAM

3840x2160
Graphics Memory

2GB
Agency Approvals & Certifications

C-Tick,VCCI,KC (Korea),UL,BSMI,FCC,CE
Maximum Operating Humidity

90
Maximum Operating Humidity Units

%
Minimum Operating Humidity

5
Minimum Operating Humidity Units

%
Maximum Operating Temperature

55
Maximum Operating Temperature Units

C
Minimum Operating Temperature

0
Minimum Operating Temperature Units

C
Depth Metric

160
Depth

160mm
Depth Metric Units

mm
Depth (US)

6.3 in
Height Metric

69
Height

69mm
Height Metric Units

mm
Height (US)

2.72 in
Max Operating Humidity + Units

90%
Min Operating Humidity + Units

5%
Max Operating Temperature + Units

55 C
Min Operating Temperature + Units

0C
Weight US Units

lbs
Weight Metric Units

Kg
Width

mm
Width Metric Units

mm
Width (US)

in
Warranty Period

Three Year
Warranty Type

Customer Replaceable Unit
