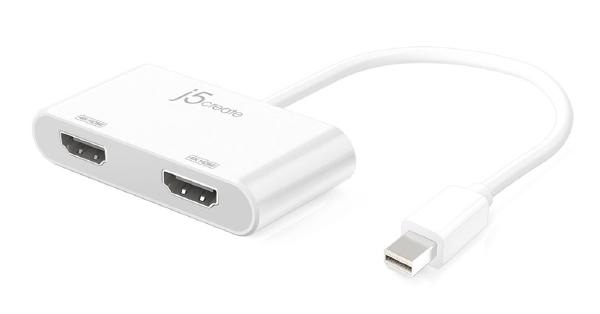

J5create Jda156 Mini Displayport (mpd) To Dual Hdmi Adapter Jda156
| SKU: | 264842 |
|---|---|
| MPN: | JDA156 Link |
| Manufacturer: | https://en.j5create.com/ |
| Brand: | J5ceate |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
The JDA156 Mini DisplayPort to Dual HDMI Adapter allows you to connect up to 2 HDMI monitors from a single Mini DisplayPort output. The JDA156 utilizes multi-stream transport (MST) protocol, supporting up to 2 displays independently at up to 4K @ 30 Hz each with DP 1.2.
PRODUCT FEATURES
- Supports resolutions up to 4K @ 30 Hz
- Extends single mini display port to dual display
- Enables 2 monitors to work simultaneously with Extended Mode, Expansion Mode or Mirror Mode
- No drivers needed, simply plug & play
- Perfect for Microsoft Surface Pro or Lenovo ThinkPad
Specifications
| Hardware | |
| Connector Type | Passive |
| Interface | |
| Host Interface | Mini-DisplayPort (20 pin) Male |
| Video Interface | DisplayPort (20 pin) Female HDMI (19 pin) Female |
| Power | |
| Power Source | USB-Powered |
| Physical Specifications | |
| Housing Material | Plastic |
| Dimensions | Main Body: |
| Weight | Approximately 0.0425 kg |
System Requirements
- DisplayPort 1.2 graphics card with Multi Stream Transport (MST) + High Bit Rate 2 (HBR2)
- Windows supports extended and mirror mode
- Mac OS only supports mirror mode
- Requires an external USB power source (USB cable included)
Package Contents
- Mini DisplayPort to Dual HDMI Adapter (JDA156)
- 7.8 in./20 cm USB cable
- Quick Installation Guide
Vendor Info
⚫Supports resolutions up to 4k @ 30Hz
⚫Extends single mini display port to dual display
⚫Enables 2 monitors to work simultaneously with Extended Mode, Expansion Mode or Mirror Mode
⚫No drivers needed, simply plug & play
⚫Perfect for Microsoft Surface Pro or Lenovo ThinkPad
⚫Video Interface DisplayPort (20 pin) Female HDMI (19 pin) Female
⚫USB-Powered (Requires an external USB power source (USB cable included))
⚫Cable legnth 15 cm
⚫System Requirements The graphics card of DisplayPort 1.2 with Multi Stream Transport(MST)+High Bit Rate 2(HBR2)
⚫Extended dual HDMI supported by Windows only Microsoft Surface Pro2, Pro3, Pro4, Book - Mac OS X does not support extended mode
