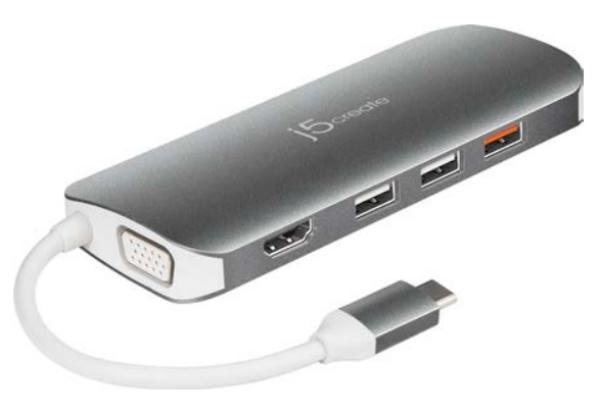

main product photo

J5ceate Jcd384 Usb-c Multi-adapter - Usb-c To Hdmi/ Vga 3-port Usb-a Hub 1-port Usb-c Sd Card Reader

RJ-45 JCD384
$98.00
SKU: 264837
MPN: JCD384 Link
Manufacturer: https://en.j5create.com/
Brand: J5ceate
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
The j5create USB Type-C Multi Adapter provides extra connectivity from your computer. These pocket-sized multi-adapters allow you to add an additional USB 3.1/SD/MicroSD computer peripheral, VGA monitor or Gigabit Ethernet through your USB ports. One of the USB 3.0 SuperSpeed port supports fast charging BC 1.2 for smartphone/table/iPad®. USB Type-C port supports charging, power delivery 3.0 and data transfer. When connected with a power source, the USB Type-C input charging port allows you to keep charging your notebook or smartphone. USB Type-C is the new standard for connecting PCs and laptops and will eventually replace all current USB cables and connectors. This new USB standard can be found on laptops, phones, tablets, etc. The USB Type-C has a slim and reversible design, so there is no wrong way to plug it in. USB Type-C offers greater power delivery and faster data transfer rates of up to 10 Gbps.




  • Power Delivery 3.0
  • Power Delivery 3.0 provides you with more stability and better compatibility.
    Only have PD 2.0? Don't worry, PD 3.0 devices work with PD 2.0.

  • Spring Push MicroSD Slot
  • The spring push design will make sure your memory card is inserted safely.

  • BC 1.2 Fast Charging
  • Provides up to 2.5x faster charging than standard chargers. Up to 2.4A, USB 3.0 SuperSpeed port supports fast charging BC 1.2 for smartphone/table/iPad® or similar device.

PRODUCT FEATURES

  • Quickly add an VGA and Gigabit Ethernet port
  • Supports VGA resolution up to 1920 x 1200 @ 60 Hz
  • USB 3.0 Type-A port x 3; BC 1.2 port x 1
  • Supports USB Type-C upstream & downstream: charging, power delivery 3.0 and data transfer
  • SD/MicroSD card slots allow for external memory access
Interface

Host Interface

USB Type-C Male connector

Video Interface

VGA Female Connector x 1

Type-C Port

USB Type-C Female connector x 1

Ethernet Port

RJ-45 Female connector (Gigabit Ethernet) x 1

USB Port

USB 3.0 Type-A Female connector

Card slots

USB 3.0 SD x 1 Slot
USB 3.0 Micro-SD x 1 Slot
Power

Power Mode

Bus-powered or self-powered
Functions

VGA

Display resolution: 1920 x 1200 @ 60 Hz

Type-C

Upstream & downstream: charging, power delivery 3.0 and data transfer

USB

USB 3.0 Type-A port x 3 (USB 3.1 Gen1/ 5 Gbps)
BC 1.2 port x 1 (CDP 1.5A/DCP 2.4A)

Ethernet

Transfer Rate:
1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex) IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x

Modes:

  • Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
  • Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
  • Supports Jumbo Frame
  • Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
Physical Specifications
Dimensions

Main body:
0.16 (W) x 0.39 (H) x0.05 (D) In
50 (W) x 120 (H) x16.5 (D) mm Cable length: 0.45 In./137 mm

Weight

Approximately: 0.18 lbs/ 88g
(including cable)
Environmental

Storage Temperature

-10-65°C

Storage Humidity

< 85% non-condensing

Operation Temperature

0-40°C

Operation Humidity

< 85% non-condensing



System Requirements

  • Available DisplayPort Alt Mode over USB Type-C port
  • USB PD 3.0/2.0 compatible for upstream charging
Notes:
  • The port with the icon provides additional power of up to 2.4A, fast-charging an iPad®, smart phone, tablet or similar device
  • If you are using a high-powered USB device, attach the USB Type-C power adapter to the power delivery port to ensure maximum performance
  • To ensure files copy completely, do not remove the USB Type-C power adapter while copying files. For maximum performance, use a PC and USB Type-C power adapter equipped with PD 3.0

Package Contents

  • JCD384 USB Type-C Multi Adapter
  • Quick Installation Guide
⚫HDMI: 4K Ultra HD (3840 X 2160) @ 30 Hz
⚫VGA: 1920 x 1200 @ 60 Hz
⚫SD & MicroSD card reader
⚫3-port USB-A Hub
⚫1-port USB-C
⚫Supports USB Type-C upstream & downstream: charging, power delivery 3.0 and data transfer
⚫DisplayPort Alt Mode / USB Power Delivery Compatible
⚫RJ-45 Gigabit Ethernet port
