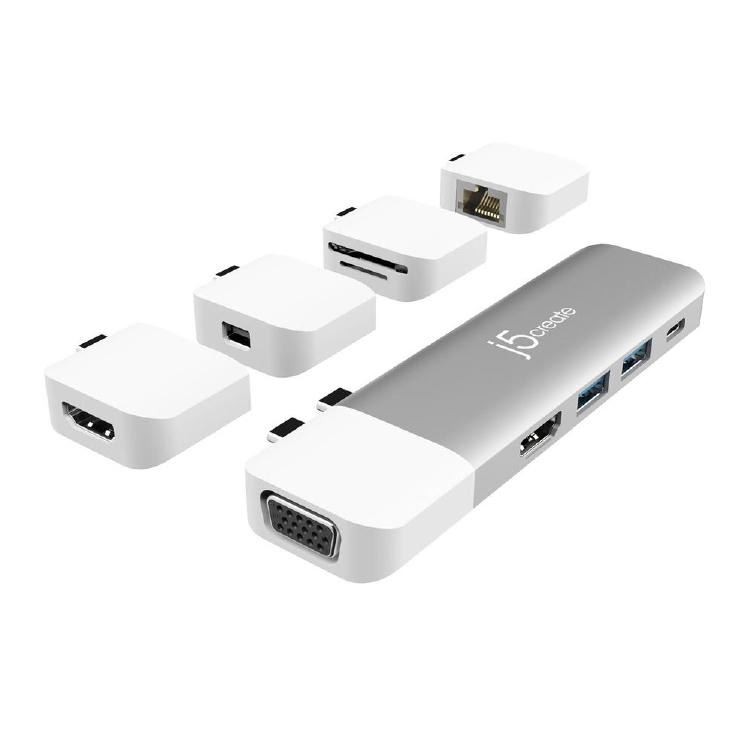

J5Create Jcd389 Ultradrive Kit Usb-C Modular Mini Dock 11-In-1 Jcd389

$171.00
SKU: 291317
MPN: JCD389 Link
Manufacturer: https://en.j5create.com/
Brand: J5create
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate

The j5create USB-C Multi-Display Modular Dock 11-in-1 is a versatile, amazing hub featuring 5 detachable magnetic kits along with the main body for 12 combinations of configurations for video, data storage and charging all in one device. The HDMI/mini DisplayPort/VGA kits can be connected to the USB-C™ on the short end of the dock to give dual USB-C input on MacBook Pro® for up to 3 monitors extended from the laptop.

(Main Body) The HDMI port supports resolutions up to 4K @ 30 Hz, and the two USB Type-A Gen 1 ports support up to 5 Gbps for data transfer. The USB- C female port on the long side of the dock provides PD 100W for charging a notebook or MacBook®, whereas the other USB-C female port on the short end provides Gen 1, 5 Gbps for data transfer.

The amazing thing is it includes 5 detachable small adapters (kits), namely USB-C to HDMI/VGA/mini DisplayPort/Gigabit Ethernet/SD™ & microSD™ 3.0, that give you the ability to expand even further with additional functions. Each module can work separately as a stand-alone mini adapter or be magnetically attached to the main body for use together.

It’s a perfect all-in-one solution for you to connect your USB-C laptops to any device whether in the office, home or on the road by simply switching the modules accordingly. The device is plug-and-play, with no driver required. It acts as a perfect companion for your laptop while on the go! This product includes a hard carrying case that can be taken wherever you go, eliminating the hassle of carrying and sorting multiple adapters and cables.

Features:

  • • 12 COMBINATIONS FOR 11-in-1 FUNCTIONS:
    5 different kits can combine with the main dock
  • • 5 MAGNETIC KITS:
  • ① USB-C to 4K HDMI: resolutions up 4K @ 60 Hz
  • ② USB-C to 4K mini DisplayPort: resolutions up 4K @ 60 Hz
  • ③ USB-C to VGA: resolutions up to 1920 x 1080 @ 60 Hz
  • ④ USB-C to Gigabit Ethernet
  • ⑤ USB-C to USB 3.0 memory card read & writer slots for external memory cards up to 2 TB
  • • MAIN BODY OF DOCK:
    USB-C to 4K @ 30 Hz HDMI/ USB Type-A 3.1 port x 2 supports 5 Gbps data transfer/PD 3.0 charging up to 100W/USB-C female supports 5 Gbps data transfer
  • • 100W POWER DELIVERY 3.0
  • • Perfect for MacBook Pro® 2016-2019 / MacBook Air® 2018-2019
  • • DUAL OR TRIPLE MONITORS: When the main body and USB-C to 4K HDMI, USB-C to 4K mini DisplayPort or USB-C to VGA are used at the same time, MacBook Pro® can be used with triple monitors.
  • • No driver required
System Requirements
  • • Available USB-C DisplayPort Alt mode
  • • Available USB power delivery over USB-C to support upstream charging
  • • Compatible with MacBook Pro® 2016 and up / MacBook Air® 2018 and up

Notes
  • • If you are using a high-powered USB device, attach a USB-C power adapter to the power delivery port to ensure maximum performance.
  • • To ensure files copy completely, do not remove the USB-C power adapter while copying files.


Interface & Functions of Main Body

Host Interface

USB-C male connector

Video Interface

HDMI female connector; Resolution: 4K @ 30 Hz

USB-C Port

USB-C upstream port female connector x 1; Power Delivery 3.0 supporting 100W

USB-C data transfer port female connector x 1; USB-C 3.1 Gen 1/5 Gbps

USB Type-A Port

USB Type-A 3.1 5G female connector x2: USB 3.1 Gen 1/5 Gbps

Interface & Functions

1. USB-C to 4K HDMI

USB-C male connector

HDMI™ female connector: resolutions up to 4K @ 60 Hz

2. USB-C to 4K mini DisplayPort

USB-C male connector

4K mini DisplayPort female connector: resolutions up to 4K @ 60 Hz

3. USB-C to VGA

USB-C male connector

VGA female connector: resolutions up to 1920 x 1080 @ 60 Hz

4. USB-C to Gigabit Ethernet

USB-C male connector

RJ45 female connector (Gigabit Ethernet) x 1

Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)

5. USB-C to USB 3.0 memory card reader & writer

USB-C male connector

SD 3.0 x 1 Slot

microSD 3.0 x 1 Slot

Power

Power Mode

Bus-powered or self-powered

JCD389 Physical Specifications

Material

Main Body: aluminum/ Kit: plastic

Dimensions

Main Body:

1.34(W) x 0.51(H) x 3.86(D) in.

34.00(W) x 13.00(H) x 98(D) mm

Kit:

1.34(W) x 0.51(H) x 0.83(D) in.

34.00(W) x 13.00(H) x 21(D) mm

Environment

Storage Temperature

-10 – 65°C

Storage Humidity

< 85% non-condensing

Operation Temperature

0 – 40°C

Operation Humidity

< 85% non-condensing


Package Contents
  • • USB-C Triple 4K Display Modular Dock (main body and 5 kits)
  • • Hard Carrying Case
  • • Quick Installation Guide
The JCD389 USB-C modular mini dock is a versatile hub featuring video, data storage and charging all in one. It includes 5 detachable small adapters (modular kits) to add extra ports and features to your laptop. Each module can work separately as a complete mini adapter or be magnetically connected to the main body for use together. There are 12 combinations of magnetic connections. Three kits, of HDMI, mini DisplayPort and VGA can be connected to the USB-C end to achieve dual USB-C inputs to extend up to 3 monitors on your MacBook Pro. It's a perfect all-in-one solution to connect your USB-C laptop to any device in the office, home or on the road by switching the modules accordingly.
⚫The main body includes a single or dual USB-C input to the following outputs
⚫1 x HDMI: resolutions up to 4K @ 30 Hz
⚫2 x USB Type-A 3.1 port supports 5 Gbps data transfer
⚫1 x USB-C PD 3.0 charging up to 100W
⚫1 x USB-C port supports 5 Gbps data transfer and downstream streaming
⚫The UltraDrive Kit includes:
⚫1 x HDMI: resolutions up to 4K @ 60 Hz
⚫1 x mini DisplayPort: resolutions up to 4K @ 60 Hz
⚫1 x VGA: resolutions up to 1920 x 1080 @ 60 Hz
⚫1 x Gigabit Ethernet
⚫1 x USB 3.0 memory card reader/writer slots for external memory cards up to 2 TB
