main product photo

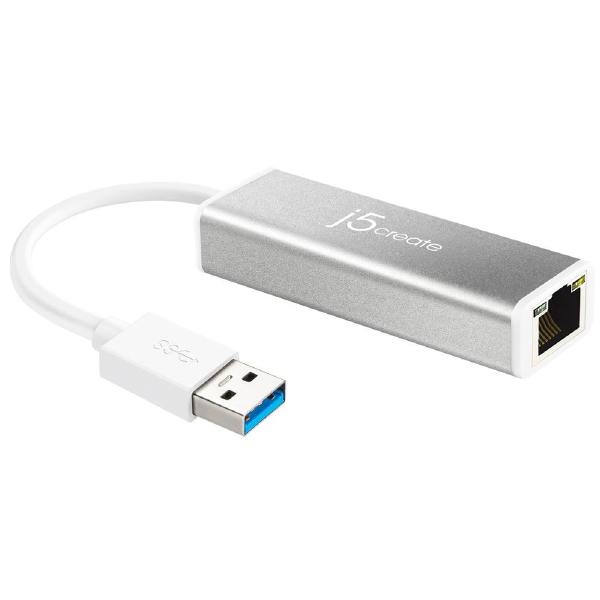

J5Create Jue130 Usb 3.0 To Gigabit Ethernet Adapter Jue130

$32.00
SKU: 291319
MPN: JUE130 Link
Manufacturer: https://en.j5create.com
Brand: J5create
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
  • • Quickly add a Gigabit Ethernet port through USB™ 3.0
  • • USB™ 3.0 plug-and-play and backwards compatible with USB™ 2.0/1.1
  • • Transfer all your files almost instantly over a true Gigabit network
  • • IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
  • • USB™ bus-powered
  • • Compatible with Windows® and macOS®
  • • Activity and Link LED indicators

The JUE130 USB™ 3.0 Gigabit Ethernet Adapter is a simple, one-piece external adapter that plugs into the USB™ port on your Ultrabook™ or MacBook®. It is the ultimate solution if you do not have an Ethernet port or if you just want to increase your connection speed.

The elegantly designed JUE130 uses an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance and allows you to add networking capabilities to a computer without them through a Wireless LAN connection.

Interface

USB™ Port

USB™ 3.0 A-Type Male connector supporting USB™ 3.0 & 2.0 & 1.1 specifications

Ethernet Port

RJ-45 Female connector

Transfer Rate

Maximum Data

1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)

Power

Power Mode

Bus-Powered

Supports

IEEE

IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x

Modes



  • Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet™, or Microsoft® wake-up frame
  • Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
  • Supports Jumbo Frame
  • Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload



Physical Specifications

LED Indicators

Network Link / Activity

Housing Material

Aluminum

Dimensions

Main Body
83 (W) x 57 (H) x 16 (D) mm

USB™ Cable Length

5.71 in (0.145 m)

Weight

0.09 lbs (0.04 kg)



System Requirements

  • Windows® 10 / 8.1 / 8 / 7 / Windows Vista™ / XP
  • macOS® X 10.6 or later
  • Linux® Kernel 3.x / 2.6.x
  • Available USB™ port (USB™ 3.0 is recommended)
  • Driver not required for Linux® 3.x / Chrome OS™ 3.8
  • Driver will automatically install on Windows® 7 / 8.1 / 10 (Requires internet access)
  • NOTE: A manual installation may still be required on Windows® 7 / 8.1 / 10



Package Contents

  • JUE130 USB™ 3.0 Gigabit Ethernet Adapter
  • Driver CD
  • Quick Installation Guide
he JUE130 USB 3.0 Gigabit Ethernet Adapter is a simple, one-piece external adapter that plugs into the USB port on your Ultrabook or MacBook. It is the ultimate solution if you do not have an Ethernet port or if you just want to increase your connection speed.The elegantly designed JUE130 uses an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance and allows you to add networking capabilities to a computer without them through a Wi-Fi connection.
⚫Quickly add a Gigabit Ethernet port through USB 3.0
⚫USB 3.0 plug-and-play and backwards compatible with USB 2.0/1.1
⚫Transfer all your files almost instantly over a true Gigabit network
⚫IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
⚫USB bus-powered
⚫Compatible with Windows and Mac OS
⚫Activity and Link LED indicators
