Camera Hardware Profile

• 1/4” 2 megapixel progressive CMOS sensor
• Minimum illumination:
  • B/W mode (IR LEDs on): 0 lux
• Lens focal length: 1.9 mm
• Aperture: F2.2
• 7.5 metre IR illumination distance
• Angle of view:
  • Horizontal: 115°
  • Vertical: 64°
  • Diagonal: 140°
• Built-in Infrared-Cut Removable (ICR) Filter
• Built-in microphone and speaker

Image Features

• Pinch to Zoom Digital zoom
• Configurable sound detection level
• Time stamp and text overlay
• Configurable resolution
• Configurable motion detection windows

Video Compression

• H.264 streaming
• JPEG for still images

Video Resolution

• Main Profile 1080P (1920 x 1080) at up to 24 fps
• Second Profile 720P (1280 x 720) at up to 15 fps

Audio Support

• MPEG-2 AAC LC

Connectivity

• 802.11n/g/b wireless with WPA/WPA2 encryption
• Bluetooth 4.0

Network Protocols

• IPv4, IPv6, ARP, TCP, UDP, ICMP
• DHCP client

Event Management

• Motion detection
• Sound level detection
• Event recording to external Hard Drive or MicroSD card²
• Event notification and snapshot/video clip download to mobile device
• mydlink Cloud Recording²

Mobile Support

• mydlink app for iOS and Android devices¹,³

Physical Weight

• 240 grams  ± 5%

Power Adapter

• Input: 100 to 240 V AC, 50/60 Hz
• Output: 5 V DC 2 A (Micro-USB)

Power Consumption

• Standby:  <0.28 mW ± 5%
• Active Day Mode: <1,200mW ± 5%
• Active Night Mode: <1,880mW ± 5%

Temperature

• Operating: -20 to 45 °C
• Storage: -20 to 70 °C

Humidity

• Operating: 10% to 95% non-condensing

<sup>1. Smartphone or tablet must have access to the Internet via Wi-Fi or mobile Internet.
2. Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain countries or jurisdictions. The end-user assumes all liability for compliance with applicable local laws.
3. Please refer to the mobile app’s store page to check whether your device is compatible.</sup>

ePTZ :	No
MicroSD Card Slot :	No
Digital Zoom :	Pinch to Zoom
Two-way Audio :	Yes
Email Notification :	No
Ethernet Port :	No
Wireless Range Extender Built In :	No
Built-in Speaker :	Yes
Motion Detection :	Yes
Sound Detection :	Yes
Built-in Microphone :	Yes
Dimensions (Size) :	85 x 66 x 85 mm
Wireless Connectivity :	802.11n
Indoor / Outdoor :	Indoor|Outdoor
Video Compression :	H.264
Night Vision Range :	B&W 7.5m
Camera Type :	Wire-Free (Battery)
Smart Home Compatible :	Amazon Alexa|Google Assistant|IFTTT|mydlink
Maximum Video Resolution :	1920 x 1080 @ 24fps
Warranty :	1-Year Limited Warranty
Night Vision :	Yes
Motorised Pan / Tilt :	No

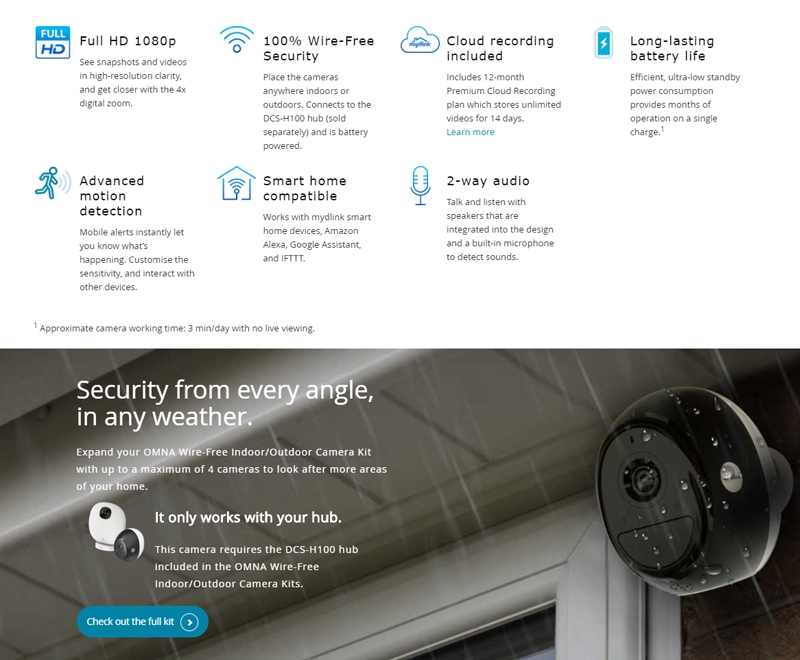

Omna Wire-Free Wi-Fi Battery Camera
⚫Requires Omna Wire-Free Camera Kit (sold seperately)
⚫100% Wire-Free Lithium battery powered camera
⚫140º Full HD 1080p resolution video recording at 24 fps
⚫Receive real-time notifications and remotely view live Full HD 1080p video with 2-way audio
⚫Night vision captures up to 7.5m clear video in complete darkness
⚫IP65 weatherproof camera body
⚫Works with Google Assistant, Amazon Alexa and IFTTT compatible
