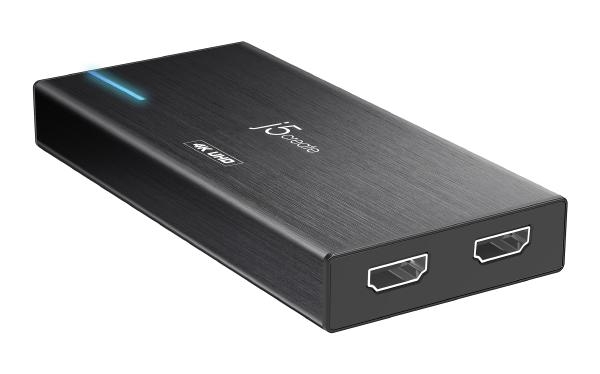

J5Create Jva04 Hdmi To Usb Game Capture Station (Hdmi To Usb-C Include Usb-C To Usb-A Cable) Jva04

Special Price $204.00 Regular Price $235.00
SKU: 272441
MPN: JVA04 Link
Manufacturer: https://en.j5create.com/
Brand: J5create
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
  •  4K pass-through support (4K @ 60 fps)
  • • Capture resolution up to 1080p @ 60 fps
  • • Audio recording mixer – 3.5 mm Aux and Mic in
  • • Supports party chat voice for newer consoles
  • • Driver free on Windows® and macOS®
  • • Low power consumption with high performance
  • • Free j5create capture software allows you to capture and stream games on your PC or notebook
  • • Aluminum design and LED light

Specifications

OS

Windows® 7/8.1/10, macOS® 10.8 or later, Linux® Driver Installation required on Windows® 7

Video Input

 HDMI™ (up to 4K @ 60 fps)

Video bypass

 HDMI™ (up to 4K @ 60 fps)

Video Capture Resolution
  • 480i @ 60 fps
  • 576i @ 50 fps
  • 480p @ 60fps
  • 4576p @ 50 fps
  • 720p @ 50 fps
  • 720p @ 60 fps
  • 1080i @ 50 fps
  • 1080i @ 60 fps
  • 1080p @ 25 fps
  • 1080p @ 30 fps
  • 1080p @ 30 fps
  • 1080p @ 50 fps
  • 1080p @ 60 fps

USB™

 Interface:
USB Type-C™ 3.1 Gen1
Device:
UAC, UVC

Video Loop Resolution
  • 480i @ 60 fps
  • 576i @ 50 fps
  • 480p @ 60 fps
  • 576p @ 50 fps
  • 720p @ 50 fps
  • 720p @ 60 fps
  • 1080i @ 50 fps
  • 1080i @ 60 fps
  • 1080p @ 24 fps
  • 1080p @ 25 fps
  • 1080p @ 30 fps
  • 1080p @ 50 fps
  • 1080p @ 60 fps
  • 4Kp @ 60 fps
*Does not support HDR, 1440p, ultra-wide monitor

Audio In/Out

 1. Headset: 4-pole 3.5 mm phone jack (Mic in/Audio out)
*Stereo microphone supported
2. Game controller: 4-pole 3.5 mm phone jack (Mic out/Audio in)

Audio Frequency

 48 KHz

Compression

 USB™ 3.0: MJPG/YUV 4:2:2
*Uncompressed
USB™ 2.0: MJPG
*Up to 1080p @ 60 fps

Encode Format

 MP4, H.264 / AVC + AAC

LED Light
  • Power on: Purple
  • USB™ 3.0 connection: Blue (Uncompressed)
  • USB™ 3.0 connection: Purple (MJPG)
  • USB™ 2.0 connection: Orange

Power Consumption
  • USB™ 3.0 Normal: 850 mA, Max:1050 mA
  • USB™ 2.0 Normal: 800 mA, Max:1000 mA

Physical Specifications

Case Material

 Aluminum

Dimensions

 Main body:
133.8 (W) x 64.5 (H) x 17.5 (D) mm

Weight

 Approximately: 142.5g

Environmental

Storage Temperature

 -10 – 65°C

Storage Humidity

 <85% non-condensing

Operation Temperature

 0 – 40°C

Operation Humidity

 <80% non-condensing


　

Package Contents

  • JVA04 HDMI™ to USB Type-C™ Game Capture Station
  • USB™ 3.0 Type-C to A cable 3.3 ft/1m
  • Audio cable 4.9 ft/1.5m
  • HDMI™ 2.0 cable 3.3 ft/1m
  • Quick Installation Guide
Our Game Capture Station, the JVA04, supports 1080p @ 60 fps Full HD video capturing with 4K @ 60 fps input and pass-through. Easily run on your Windows or Mac OS laptop/desktop with no driver needed. Supports live commentary streaming and party chat voice mix from PS4/PS4 Pro or Xbox One/Xbox One X and Mic in. It is compatible with OBS and other video editing software, perfect for assisting quick, live video editing.
⚫4K pass-through support (4K @ 60 fps)
⚫Capture resolution up to 1080p @ 60 fps
⚫Audio recording mixed - 3.5 mm Aux and Mic in
⚫Supports party chat voice from PS4/PS4 Pro or XBox One/Xbox One X
⚫Driver free on Windows and Mac OS
⚫Low power consumption with high performance
⚫USB 3.0 Type-C to A cable 3.3 ft/1m
