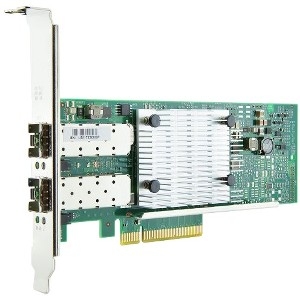

Lenovo Broadcom Netxtreme Ii Ml2 Dual Port 10gbe Sfp+ For Ibm System X 00d2028
| SKU: | 259500 |
|---|---|
| MPN: | 00D2028 Link |
| Manufacturer: | https://www3.lenovo.com/ |
| Brand: | Lenovo |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Abstract
Lenovo offers the Broadcom 10 GbE SFP+ network adapter family that is based on the Broadcom BCM57811S and BCM57810S controllers for System x® servers. These adapters use Broadcom's controller technology, which provides outstanding performance, efficiency, and scalability for the enterprise data center. The adapters connect to SFP+ Multimode Fiber SR optical modules and direct-attach copper (DAC) cables.
Change History
Changes in the January 15 update:
- Broadcom NetXtreme 2x10 GbE SFP+ Mezz Adapter, 44T1360, withdrawn from marketing
Introduction
Lenovo offers the Broadcom 10 GbE SFP+ network adapter family by QLogic that is based on the Broadcom BCM57811S and BCM57810S controllers for System x® servers. These adapters use QLogic's controller technology, which provides outstanding performance, efficiency, and scalability for the enterprise data center. The adapters connect to SFP+ Multimode Fiber SR optical modules and direct-attach copper (DAC) cables.
Specifications
| Basic | |
|---|---|
| Brand Name: | Lenovo |
| Device Supported: | Server |
| Expansion Slot Type: | SFP+ |
| Form Factor: | Mezzanine |
| Host Interface: | PCI Express x8 |
| Network Technology: | 10GBase-X |
| Product Type: | 10Gigabit Ethernet Card |
| General Information | |
|---|---|
| Brand Name: | Lenovo |
| Manufacturer Part Number: | 00D2028 |
| Manufacturer Website Address: | http://www3.lenovo.com/au/en |
| Manufacturer: | Lenovo Group Limited |
| Packaged Quantity: | 1 |
| Product Name: | Broadcom NetXtreme II ML2 Dual Port 10GbE SFP+ For IBM System x |
| Product Type: | 10Gigabit Ethernet Card |
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP+ |
| Number of SFP+ Slots: | 2 |
| Number of Total Expansion Slots: | 2 |
| Interfaces/Ports | |
|---|---|
| Host Interface: | PCI Express x8 |
| Miscellaneous | |
|---|---|
| Device Supported: | Server |
| Platform Supported: | PC |
| Network & Communication | |
|---|---|
| Network Technology: | 10GBase-X |
| Physical Characteristics | |
|---|---|
| Card Height: | Low-profile |
| Depth: | 167.6 mm |
| Form Factor: | Mezzanine |
| Height: | 17.8 mm |
| Width: | 68.6 mm |
| Warranty | |
|---|---|
| Limited Warranty: | 1 Year |
