Model

Brand

NETGEAR

Model

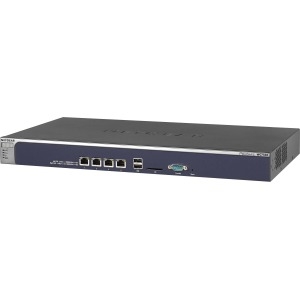

WC7500-10000S

Details

Type

Wireless LAN Controller

Specifications

Supported AP Models:
WAC730 ProSafe 802.11ac 3x3 (1.7 Gbps) Wireless Access Point
WAC720 ProSafe 802.11ac 2x2 (1.3 Gbps) Wireless Access Point
WNDAP660 ProSafe 802.11n 3x3 (900 Mbps) Wireless Access Point
WND930 Outdoor Dual Band 802.11n (600 Mbps) Wireless Access Point
WNDAP360 ProSafe Dual Band 802.11n (600 Mbps) Wireless Access Point
WNDAP350 ProSafe Dual Band 802.11n (600 Mbps) Wireless Access Point
WN370 ProSafe 802.11n (300 Mbps) Wall Mount Wireless Access Point
WNAP320 ProSafe 802.11n (300 Mbps) Wireless Access Point
WNAP210 ProSafe 802.11n (300 Mbps) Wireless Access Point

Maximum AP Supported per Controller:
10 (default)
15 with Incremental 5-AP License Upgrades (WC05APL-10000S)

Maximum Profile Groups per Controller:
8
Each access point belongs to only one profile group

Maximum Security Profiles (SSID) per Profile Group:
8 per radio (2.4 GHz; 5 GHz)

Maximum Security Profiles (SSID) per Controller:128

Maximum Rogue APs Detectable per Controller: 512

Maximum Floorplans per Controller
3 (default)
Additional floorplans possible with USB local storage (up to a maximum of 18 floorplans)

Number of Captive Portals per Controller: 1

Maximum Clients per AP:
WNAP210 support up to 32 clients
WNAP320 support up to 64 clients
WN370 support up to 64 clients
All other AP’s support up to 128 clients

Features

Features

Performance
Great support for latency-intensive applications (video, audio, voice over wireless) with seamless L2 and L3 fast roaming
Minimized interferences and dynamic RF Management: Automatic controls of AP transmit power and channel allocations ensure coverage
Robust wireless connectivity: Fair bandwidth allocation among all clients is ensured by load balancing and rate limiting
Limiting bottlenecks: Dynamic load balancing of clients across APs based on number of clients per AP or signal strength threshold/data rate threshold of clients per AP

Business Value
Self-healing Wireless with automatic WLAN healing after loss of AP or due to RF interferences adapts the power and channel of the other APs around the area
Full control by complete view of customer deployment with heat map, wireless channel, and signal strength for real-time reporting of network status
Simplified deployment and cost optimization with concurrent support of 802.11n and 802.11ac Access Points

Scalability
The scalable WC7500 Controller enables businesses to grow their wireless network as needed with a dramatic return on investment: WC7500 scales up to 15 access points (AP) with base support of 10 AP's and optional license for additional 5 AP's.

Ease of Use
Configure the MAC address ?lters, make SSID changes, and change the password for all access points—all from the single WC7500 interface
Triangulation: Administrators can easily locate known APs, rogue APs, and associated clients on the heat map
Wireless bundles (for single and dual band APs) for ease of ordering
