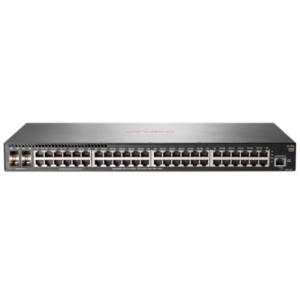

Aruba 2930F 48G 4Sfp Switch Jl260A
$2,600.00
| SKU: | 281781 |
|---|---|
| MPN: | JL260A Link |
| Manufacturer: | https://h20195.www2.hpe.com |
| Brand: | Hpe |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP |
| Number of SFP Slots: | 4 |
| Number of Total Expansion Slots: | 4 |
| Shared SFP Slot: | No |
| Interfaces/Ports | |
|---|---|
| Modular: | Yes |
| Port/Expansion Slot Details: | 4 x Gigabit Ethernet Uplink |
| 48 x Gigabit Ethernet Network | |
| Stack Port: | No |
| Total Number of Network Ports: | 48 |
| Uplink Port: | Yes |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Media & Performance | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Media Type Supported: | Optical Fiber |
| Twisted Pair | |
| Network Technology: | 10/100/1000Base-TX |
| 1000Base-X | |
| Miscellaneous | |
|---|---|
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Compatible Rack Unit: | 1U |
| Depth: | 246.3 mm |
| Form Factor: | Desktop |
| Rack-mountable | |
| Height: | 43.9 mm |
| Weight (Approximate): | 3.10 kg |
| Width: | 442.5 mm |
| Power Description | |
|---|---|
| Power Source: | Power Supply |
Vendor Info
▼
| Marketing Text | The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security. |
| PI Date | Sep 2016 |
| Brand Name | HP |
| Manufacturer Web Site | http://www.hp.com |
| Form Factor | 1U |
| Product Model | 2930F 48G 4SFP |
| Product Type | Ethernet Switch |
| Mac Address | 32768entries |
| Forwarding Rate | 77.4Mpps |
| Latency | 3.8microseconds |
| Switching Fabric | 104Gbps |
| Jumbo Frame Size | 9220Bytes |
| Expansion Ports | 4 x SFP |
| Gigabit Ethernet Port | Yes |
| No. of Ports | 48 |
| Type | 10/100/1000 |
| Other Port | 1 x Console Port |
| Virtual LAN | * VLAN Support and Tagging: supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously * Rapid Per-VLAN Spanning Tree (RPVST+) * Private VLAN: Provides network security by restricting peer-to-peer communication to prevent a variety of malicious attacks; typically a switch port can only communicate with other ports in the same community and/or an uplink port, regardless of VLAN ID or destination MAC address |
| Management Features | * Aruba AirWave Network Management * IMC - Intelligent Management Center * Command-line interface * Web browser * Configuration menu * SNMP manager |
| Security Features | * Source-port filtering * RADIUS/TACACS+ * Secure shell * Secure Sockets Layer (SSL) * Port security * MAC address lockout |
| Standards | * IEEE 802.3 Type 10BASE-T * IEEE 802.3u Type 100BASE-TX * IEEE 802.3ab Type 1000BASE-T |
| Quality of Service (QoS) | * Traffic prioritization (IEEE 802.1p) * Layer 4 prioritization * Rate limiting * Large buffers |
| Weight (Kg) | 3.1 |
| Layer Support | 3 |
| Management | Managed |
| RAM Installed | 1GB |
| Flash Memory | 4GB |
| Network Technology | 10/100/1000 |
| Other Features | * Dual Core ARM Coretex @ 1016 MHz * Routing table size: 10000 entries (IPv4), 5000 entries (IPv6) |
