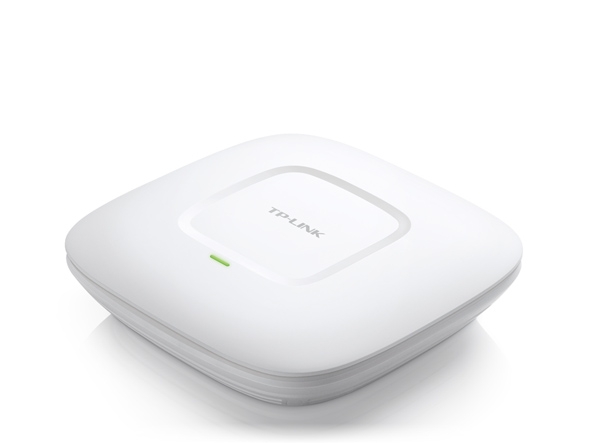

main product photo

Tp-link 300mbps Wireless N Ceiling Mount Access Point Eap115

$81.00
SKU: 264527
MPN: EAP115 Link
Manufacturer: https://www.tp-link.com/
Brand: Tp-link
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

300Mbps Wireless N Ceiling Mount Access PointEAP115

  • Free Omada Controller Software enables administrators to easily manage hundreds of EAPs

    　

  • Supports Power over Ethernet (802.3af) for convenient and affordable installation

    　

  • Simple mounting design for easy attachment to a wall or ceiling

    　

  • Captive portal provides one convenient method of authentication for Wi-Fi guests

    　

  • Facebook Wi-Fi and SMS authentication help to boost your business

    　

  • Enterprise class Wi-Fi security help to decrease network security threats

    　

  • Multi-SSID divides multiple wireless networks for different user types

    　

  • Supports management vlan for an enhanced network management

Trouble-Free Centralized Management.
No Technicians Needed.

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Learn more >

Captive Portal

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Easy Mount Design and PoE

Timesaving and Flexible Deployment

The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.

Unified Wi-Fi for Multi-user Environment

The Omada business Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for hotels, salons, chain-stores, schools, and restaurants.

  • Hotel
  • Café
  • Chain-store
  • School
HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
Button Reset
Power Supply PoE or external 12VDC/1.0A power supply
Power Consumption 5W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Dimensions 7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
Antenna Type Internal 2* 3dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions Multiple SSIDs （Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power CE:
≤19dBm
FCC:
≤26dBm
MANAGEMENT
Auranet Controller Software Yes
Omada Controller Software Yes
Cluster Mode Yes
EAP Controller Software 　
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP115
Power Adapter
Mounting Kits,
Installation Guide
System Requirements Microsoft Windows 10/8/7/Vista/XP
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty Limited 3-Year Warranty

For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
Marketing TextBuild and manage a scalable Wi-Fi network for your business with the Auranet business class solution, tailored to handle the power of hundreds of TP-LINK EAPs at an affordable cost.
PI DateMay 2018
Brand NameTP-Link
Manufacturer Web Sitehttp://www.tp-link.com
Product SeriesEAP
Product ModelEAP115
Product TypeWireless-N Access Point
Frequency Band 2.4 - 2.4835GHz
No. of Antenna2
Antenna Gain3dBi
Security* Kensington Lock Slot
Management* Web-based Management
* Management VLAN
* Management MAC Access Control
OSWindows
Power Consumption5Watt
Operating Temperature0 to 40°C
Compliance Standards* RoHS
Other Features* Mounting: Ceiling /Wall Mounting
* Watch Dog
* Multiple SSIDs Up to 8 SSIDs
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* LED ON/OFF Control
