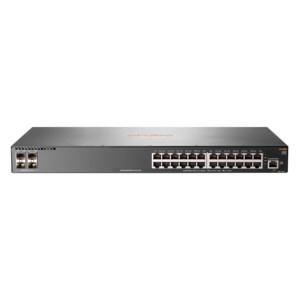

Hpe Aruba 2540 24g 4sfp+ Switch Jl354a
| SKU: | 255518 |
|---|---|
| MPN: | JL354A Link |
| Manufacturer: | http://www8.hp.com/us/en/ |
| Brand: | Hp |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With advanced security and network management tools — Aruba ClearPass Policy Manager and Aruba AirWave — this layer-2 access switch is easy to deploy and manage.
With support from cloud-based Aruba Central, you can quickly set up remote branch sites with little or no IT help.
-
Reliable and secure access
Enhanced access security, ACLs, traffic prioritization, sFlow, and IPv6 host support.
-
Cloud management
Speed remote deployment with Aruba Central.
-
Single view of the network
Consistent wired and wireless experience with Aruba ClearPass Policy Manager and AirWave Network Management.
Specifications
| General Information | |
| Product Name | Aruba 2540 24G 4SFP+ Switch |
| Manufacturer Part Number | JL354A |
| Product Series | 2540 |
| Product Model | 2540 24G 4SFP+ |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | No |
| Port / Expansion Slot Details | 24 x Gigabit Ethernet Network 4 x 10 Gigabit Ethernet Expansion Slot |
| I/O Expansions | |
| Number of Total Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | No |
| Number of SFP+ Slots | 4 |
| Media & Performance | |
| Media Type Supported | Twisted Pair Optical Fiber |
| Ethernet Technology | Gigabit Ethernet 10 Gigabit Ethernet |
| Network Technology | 1000Base-X 10/100/1000Base-T 10GBase-X |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Management & Protocols | |
| Manageable | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 7.9" |
| Other Information | |
| Product Family | 2540 |
| Stock Details | |
| Manufacturer | HPE |
| Manuf Part# | JL354A |
| Availability | Special Order |
Vendor Info
| Marketing Text | Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With advanced security and network management tools - Aruba ClearPass Policy Manager and Aruba AirWave - this Layer 2 access switch is easy to deploy and manage. |
| PI Date | Apr 2017 |
| Brand Name | HPE |
| Manufacturer Web Site | http://www.hpe.com |
| Form Factor | 1U |
| Product Model | 2540-24G-4SFP+ |
| Product Type | Gigabit Switch |
| Mac Address | 16384entries |
| Routing Table | 2Kentries |
| Forwarding Rate | 95.2Mpps |
| Packet Buffer | 12.38MB |
| Switching Fabric | 128Gbps |
| Jumbo Frame Size | 9220Bytes |
| Expansion Ports | 4 x SFP+ |
| Gigabit Ethernet Port | Yes |
| No. of Ports | 24 |
| Type | 10/100/1000 |
| Virtual LAN | * Supports IEEE 802.1Q |
| Management Features | * Aruba AirWave Network Management * IMC - Intelligent Management Center * Command-line interface * Web browser * Configuration menu |
| Security Features | * RA guard * DHCPv6 protection * Dynamic IPv6 lockdown * ND snooping |
| Standards | * IEEE 802.1X * IEEE 802.3 Type 10BASE-T * IEEE 802.3u Type 100BASE-TX * IEEE 802.3ab Type 1000BASE-T * IEEE 802.3at PoE+ |
| Quality of Service (QoS) | * Traffic prioritization (IEEE 802.1p) * Layer 4 prioritization * Class of Service (CoS) * Rate limiting * Large buffers |
| Output Power | 29.3Watt |
| Depth (mm) | 200.2 |
| Height (mm) | 43.9 |
| Width (mm) | 442.5 |
| Weight (Kg) | 2.4 |
| Layer Support | 3 |
| Management | Managed |
| RAM Installed | 1GB |
| Network Technology | 10/100/1000 |
| Other Features | * Differentiator: 24-port 1 GbE switch with four 1/10 GbE SFP+ uplinks * Memory and processor: Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM |
