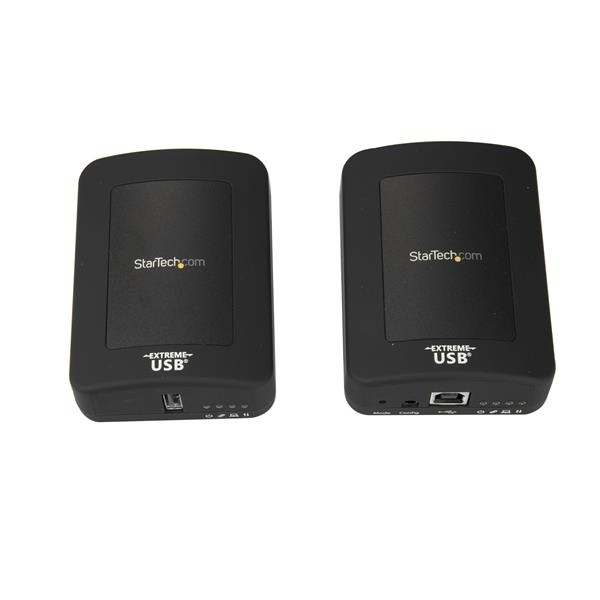

Startech 1-port Usb 2.0-over-cat5-or-cat6 Extender Kit - Locally Or Remotely Powered - 330 Ft.

(100 M) USB2001EXT2P
$667.00
SKU: 253875
MPN: USB2001EXT2P Link
Manufacturer: https://www.startech.com/
Brand: Startech
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks

Fright Estimate

This single-port USB 2.0 extender lets you access and use your USB device up to 100 m away over Cat5e or Cat6 cable. And, because it can be powered by either the local or the remote unit, you have more flexibility to place your USB device exactly where you need it. It’s the perfect USB extension solution for warehouses, factories, classrooms, boardrooms, homes, or offices.

Flexible power input options

Many USB-to-Ethernet extenders require that the remote unit has a power source connected for operation, which can make installation difficult. This versatile extender overcomes that restriction, letting you connect the power adapter to either the local (transmitter) unit or the remote (receiver) unit as needed.

When the power adapter is connected to the local unit, the extender delivers power over your Cat5e or Cat6 cable, eliminating the need for a power adapter in the remote location. Now you have the added convenience to install your USB device even in a remote location where a power outlet is unavailable, up to 100 m away.

Eliminates hassle and smashes distance limitations

This USB extender overcomes the 16 ft. cable length limitations of traditional USB 2.0 cables, so you can create a more efficient, more flexible workspace. It’s perfect for connecting webcams, printers, flash drives, and virtually any USB peripheral.

Plus, with the included power adapter, you can connect power-hungry USB devices such as external hard drives. For added installation convenience, the USB-to-Ethernet extender features built-in cable-tie slots for mounting to a pole.

Supports any operating system and older devices

The USB 2.0-over-Cat5-or-Cat6 extender is multi-platform compatible, so it supports a variety of operating systems such as Windows®, Mac, Linux® and Chrome OS™. Setup is easy with no additional drivers or software required, and the universal USB extender is backward compatible with USB 1.1 and 1.0 peripherals.

The USB2001EXT2P is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Local Unit ConnectorsRJ-45 Female
USB B (4 pin) Female
Remote Unit ConnectorsRJ-45 Female
USB Type-A (4 pin) USB 2.0 Female
Environmental
Humidity20~80% RH (Non-condensing)
Operating Temperature0?C to 50?C (32?F to 122?F)
Storage Temperature-20?C to 70?C (-4?F to 158?F)
Hardware
CablingCat 5e UTP or better
Ports1
Indicators
LED IndicatorsActivity
Host
Link
Power
Packaging Information
Shipping (Package) Weight1.1 kg [2.5 lb]
Performance
Max Distance100 m / 330 ft
Maximum Data Transfer Rate480Mbps
Physical Characteristics
ColorBlack
Enclosure TypePlastic
Product Height30 mm [1.2 in]
Product Length88 mm [3.5 in]
Product Weight171 g [6 oz]
Product Width65 mm [2.6 in]
Power
Center Tip PolarityPositive
Input Current0.58 A
Input Voltage100 ~ 240 AC
Output Current1 A
Output Voltage24 DC
Plug TypeM
Power Consumption (In Watts)24
Power SourceAC Adapter Included
Software
OS CompatibilityOS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable RequirementsA host computer with an available USB-A port (USB Type-A)
An RJ45-terminated UTP Cat5e or better Ethernet cable
What's in the Box
Included in Packagequick-start guide
universal power adapter (NA/JP, UK, EU, ANZ)
USB 2.0 cable 6.1 ft [1.8 m]
USB 2.0 extender local unit
USB 2.0 extender remote unit
