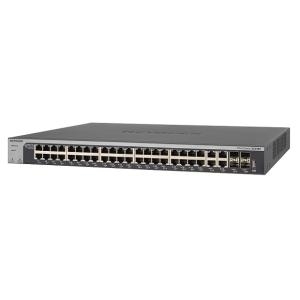

Netgear 48Prt 10G Ethernet Smart Switch 4 X Sfp+ Xs748T-100Ajs
$5,438.00
| SKU: | 281784 |
|---|---|
| MPN: | XS748T-100AJS |
| Manufacturer: | https://www.netgear.com/ |
| Brand: | Netgear |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
| General Information | |
|---|---|
| Brand Name: | Netgear |
| Manufacturer Part Number: | XS748T-100AJS |
| Manufacturer Website Address: | http://www.netgear.com.au |
| Manufacturer: | Netgear, Inc |
| Product Line: | ProSafe |
| Product Model: | XS748T |
| Product Name: | ProSafe XS748T Layer 3 Switch |
| Product Type: | Layer 3 Switch |
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP+ |
| Number of SFP+ Slots: | 4 |
| Number of Total Expansion Slots: | 4 |
| Shared SFP Slot: | Yes |
| Interfaces/Ports | |
|---|---|
| Modular: | Yes |
| Port/Expansion Slot Details: | 4 x 10 Gigabit Ethernet Expansion Slot |
| 44 x 10 Gigabit Ethernet Network | |
| Stack Port: | No |
| Total Number of Network Ports: | 44 |
| Uplink Port: | Yes |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Depth: | 310 mm |
| Form Factor: | Desktop |
| Rack-mountable | |
| Height: | 43 mm |
| Weight (Approximate): | 6.25 kg |
| Width: | 440 mm |
| Power Description | |
|---|---|
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | No |
Vendor Info
▼
| Marketing Text | The 10-Gigabit Smart Managed Switch series from Netgear presents the right solution for this requirement; delivering unprecedented non-blocking 10-Gigabit bandwidth at an affordable cost. |
| PI Date | Oct 2016 |
| Brand Name | Netgear |
| Manufacturer Web Site | http://www.netgear.com |
| Form Factor | Rack Mount |
| Product Line | Prosafe |
| Product Model | XS748T |
| Product Type | Ethernet Switch |
| Mac Address | 16kentries |
| Forwarding Rate | 714.2Mpps |
| Packet Buffer | 3MB |
| Switching Fabric | 960Gbps |
| Expansion Ports | 4 x SFP+ |
| Gigabit Ethernet Port | Yes |
| No. of Ports | 44 |
| Type | 10GBase-T |
| Other Port | 1 x USB |
| Virtual LAN | * Private VLAN: Private VLANs help reduce broadcast with added security * Number of VLANs: 512 |
| Management Features | * Password management * Configurable management VLAN * Admin access control via RADIUS and TACACS+ * IPv6 management * SNTP client over UDP port 123 * SNMP v1/v2c * SNMP v3 with multiple IP addresses |
| Security Features | * 802.1x authentication (EAP) * Port-based security by locked MAC * ACL filtering to permit or deny traffic based on * MAC and IP addresses |
| Standards | * IEEE 802.3 Ethernet * IEEE 802.3ab 1000BASE-T * IEEE 802.3an 10GBASE-T 10Gbps Ethernet Over Copper Twisted Pair Cable * IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4) * IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX * IEEE 802.3x Full-Duplex Flow Control * IEEE 802.1Q VLAN Tagging |
| Quality of Service (QoS) | * Port-based or 802.1p-based prioritization * Layer 3-based (DSCP) prioritization * Port-based ingress and egress rate limiting |
| Output Power | 262.8Watt |
| Depth (mm) | 310.0 |
| Height (mm) | 43.0 |
| Width (mm) | 440.0 |
| Weight (Kg) | 6.3 |
| Layer Support | 3 |
| Management | Managed |
| RAM Installed | 512MB |
| Flash Memory | 256MB |
| Network Technology | 10GBase-T |
| Other Features | * Forwarding modes: Store-and-forward * CPU: 800 MHz Dual Core * Priority queues: 8 |
| Cabling Type | CAT5/5e/6/6a/7 |
