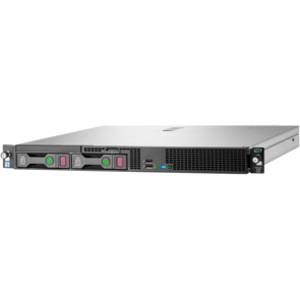

Hpe Dl20 Gen9 E3-1220v6 Lff Base Svr 871429-b21
$1,991.00
| SKU: | 264586 |
|---|---|
| MPN: | 871429-B21 Link |
| Manufacturer: | https://www8.hp.com/au/en/home.html |
| Brand: | Hp |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel Pentium, Core i3 and E3-1200v5 processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.
Specifications
▼
| Controllers | |
|---|---|
| Controller Type: | Serial ATA/600 |
| RAID Levels: | 0, 1, 5, 10 |
| RAID Supported: | Yes |
| Display & Graphics | |
|---|---|
| Graphics Controller Manufacturer: | Matrox |
| Graphics Controller Model: | G200 |
| I/O Expansions | |
|---|---|
| Number of 3.5" Bays: | 2 |
| Number of External 5.25" Bays: | 1 |
| Number of Total Expansion Bays: | 3 |
| Memory | |
|---|---|
| Maximum Memory: | 64 GB |
| Memory Technology: | DDR4 SDRAM |
| Number of Occupied Memory Slots: | 1 |
| Number of Total Memory Slots: | 4 |
| Standard Memory: | 8 GB |
| Network & Communication | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Physical Characteristics | |
|---|---|
| Depth: | 382.3 mm |
| Form Factor: | Rack |
| Height: | 43.2 mm |
| Rack Height: | 1U |
| Weight (Approximate): | 7.90 kg |
| Width: | 434.6 mm |
| Power Description | |
|---|---|
| Maximum Power Supply Wattage: | 290 W |
| Number of Power Supplies Installed: | 1 |
| Number of Power Supplies Supported: | 1 |
| Redundant Power Supply: | No |
| Software | |
|---|---|
| Operating System: | No |
| Storage | |
|---|---|
| Optical Drive Type: | No |
| Total Hard Drive Capacity: | No |
Vendor Info
▼
| Marketing Content | The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel E3-1200 v6, processors provides a unique blend of enterprise-class capabilities at a great value making it an ideal rack server platform for growing businesses and service providers. |
| PI Date | Dec 2017 |
| Brand Name | HPE |
| Manufacturer Web Site | http://www.hpe.com |
| Product Line | ProLiant |
| Product Type | Rack Server |
| Product Model | DL20 G9 |
| Form Factor | Rack 1U |
| No. of Processors | 1 |
| Manufacturer | Matrox |
| Processor Type | Xeon |
| Processor Model | E3-1220 v6 |
| Processor Speed | 3GHz |
| Cache Size | 8MB |
| Cache Type | L3 |
| No. of Slots | 4 |
| Memory Size | 8GB |
| Memory Type | DDR4 |
| Maximum Memory | 64GB |
| Model | C232 |
| Bay Size | LFF |
| No. of Bays | 2 |
| Storage Controller | Smart Array B140i |
| Type/Model | G200 |
| Network Type | Gigabit Ethernet |
| Network Controller | 332i |
| No. of ports | Dual port |
| Slot Type | 2 x PCI-e |
| No. of Power Supply | 1 |
| Power Supply Type | Non-Hot Plug |
| Power Supply Output | 290Watt |
| Depth (mm) | 382.2 |
| Height (mm) | 43.2 |
| Width (mm) | 434.6 |
| Weight (Kg) | 7.9 |
| Security Features | * Power-on password * Serial interface control * Administrator's password |
| Compliance Standards | * PCIe 3.0 Compliant |
| Other Features | * Memory type: 1R x8 PC4-2400T-E * Memory protection features: Advanced ECC |
| Warranty Information | 1 Year |
