Full-range loudspeaker with a single 4.5" (114 mm) full-range driver in a ported enclosure designed for surface mounting in foreground and background music and paging applications

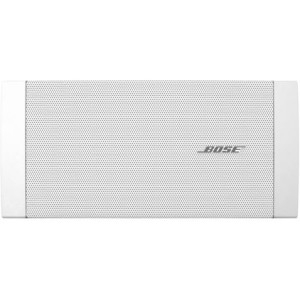

Bose Freespace Ds40se Environmental Surface Mount Loudspeaker - White (single) 70/100v Taps 2.5
5 10 20 40W AND 8OHM 321279-0210
$277.00
| SKU: | 270040 |
|---|---|
| MPN: | 321279-0210 Link |
| Manufacturer: | https://pro.bose.com/en_us/ |
| Brand: | Bose |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
FEATURES
Simple 1->2->3 installation system. Mounting hardware allows for horizontal and vertical orientation with adjustable pitch or yaw
Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap settings from under front end cap
Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40, and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
Supported by a suite of accessories, including wall-mount bracket, ceiling-mount bracket, pole-mount bracket and junction boxes
Applications
- Retail stores
- Restaurants and bars
- Concourse
- Transportation facilities
- Resorts and hospitality venues
- Houses of worship
Specifications
▼
SPECS
Technical Summary
Frequency Response (+/-3 dB)
80 Hz - 17 kHz
Frequency Range (-10 dB)
70 Hz - 19 kHz
Nominal Dispersion
125° H x 125° V
Long-Term Power Handling
40 W (160 W peak)
Sensitivity (SPL / 1 W @ 1 m)
87 dB SPL
Maximum SPL @ 1 m
103 dB SPL (109 dB SPL peak)
Nominal Impedance
8 Ω (transformer bypassed)
Mechanical Diagrams
Front View
Top View
Side View
Product Codes
Black
321279-0110
White
321279-0210
