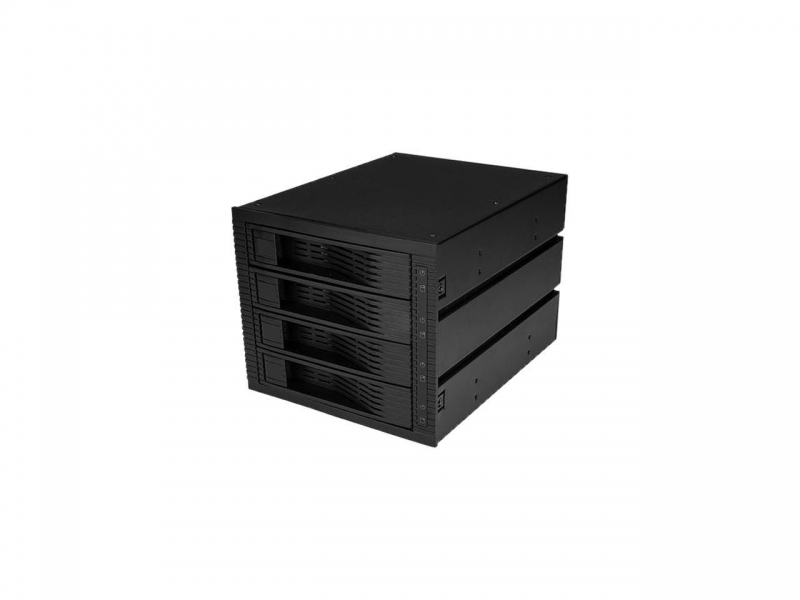

Startech 4 Bay 3.5in Sata Sas Backplane - Hot Swap Mobile Rack For 3 5.25in Bays - Hdd Rack - Sas
Backplane - SATA Backplane - Trayless Mobile HSB43SATSASB
Special Price
$168.00
Regular Price
$193.00
| SKU: | 258650 |
|---|---|
| MPN: | HSB43SATSASB Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
Specifications
▼
| Hardware | |
| Front Door Key Lock | Yes |
| Interface | SAS |
| SATA | |
| Number of Drives | 4 |
| Number of internal 3.5 inch bays | 4 |
| Indicators | |
| LED Indicators | Drive Power/Activity |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.3 lb] |
| Performance | |
| Air Flow Rate | 4.48 CFM |
| Hot Swap Capability | Yes |
| Insertion Rating | 50,000 cycles |
| Max Drive Capacity | Currently tested with up to 10TB 7200 RPM hard drive |
| Maximum Data Transfer Rate | 6 Gbps |
| Noise Level | 21.13 dBA |
| Type and Rate | SATA/SAS 6 Gbps |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic and Aluminum |
| Max Drive Height | 26.1 mm [1 in] |
| Product Height | 127 mm [5 in] |
| Product Length | 195 mm [7.7 in] |
| Product Weight | 1352 g [47.7 oz] |
| Product Width | 148 mm [5.8 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | installation screws |
| LP4 to SATA & LED power cable adapters | |
| mobile rack | |
| quick-start guide | |
| SATA cables | |
| SATA to SATA & LED Y power cable adapters | |
| Hardware | |
| Fans | 40 mm |
| Fan(s) | Yes |
| Fan Bearing Type | Dual Ball Bearing |
| Drive Size | 3.5in |
| Drive Installation | Fixed |
| Compatible Drive Types | SAS & SATA |
| Environmental | |
| Storage Temperature | -20?C to 55?C (-4?F to 131?F) |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Humidity | 5% ~ 65% |
| Connector(s) | |
| Other Interface(s) | 4 Pin Fan/LED |
| Host Connectors | 22 pin SATA / SAS Data + Power (7 + 15 pin) Receptacle |
| Drive Connectors | 29 pin SAS SFF-8482 Female |
