Startech Mini Thunderbolt 3 Dock - Mac And Windows - Dual Displayport - 4k 60hz - Usb C Laptop Docking
| SKU: | 264714 |
|---|---|
| MPN: | TB3DKM2DP Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Overview

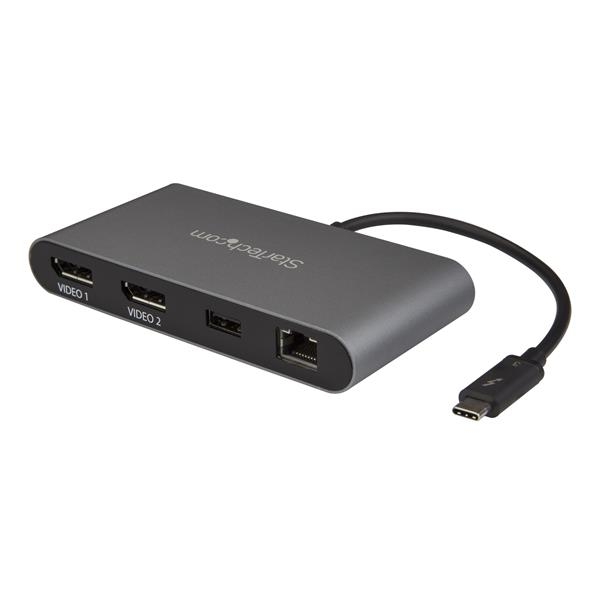

This Thunderbolt™ 3 docking station packs big performance into a cost-effective, compact mini dock, delivering essential connections for productivity. The bus-powered Thunderbolt 3 dock lets you connect to dual 4K DisplayPort displays, Gigabit Ethernet and a USB 3.0 (Type-A) port. Compatible with macOS and Windows®, it’s the ideal accessory for your MacBook Pro, Dell™ XPS or other Thunderbolt 3 laptop.
Create a Dual-4K 60Hz Workstation
Great for editing 4K video or other Ultra HD tasks, this portable dual DisplayPort docking station supports 40Gbps of throughput and 4K resolution at 60Hz on two DisplayPort monitors, through a single Thunderbolt 3 port. Run resource-demanding applications on two independent displays without draining system resources.
Connect your laptop to:
- 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
You can also connect a single 5K 60Hz display to your laptop.
The Ports You Need Most
To enhance your productivity, the Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support) ensures reliable wired network access. A USB 3.0 Type-A port, with ample space around it, lets you connect a USB device, like a flash drive, for easy file access.
Bus Powered for Easy Portability
This mini Thunderbolt 3 docking station offers a versatile solution for permanent and shared office workspaces. It’s bus-powered, with no external power required. For flexible setup, the attached USB-C cable has an extended length of (7.9 in./ 20 cm).
The TB3DKM2DP is Thunderbolt Certified, and backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| PRODUCT NUMBERS | ||
|---|---|---|
| TechData Dis | 13146655 | |
| ASI | 215141 | |
| D and H | TB3DKM2DP | |
| Ingram Micro USA | 3FM144 | |
| Synnex US | STA-TB3DKM2DP | |
| UPC Code | 065030872904 | |
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 3 Years | |
| HARDWARE | ||
| 4K Support | Yes | |
| Bus Type | Thunderbolt 3 | |
| Chipset ID | Intel - Alpine Ridge JHL6540 Intel - WGI210AT Texas Instruments - TPS65983 ASMedia - ASM1042A | |
| Displays Supported | 2 | |
| Fast-Charge Port(s) | No | |
| Industry Standards | Thunderbolt 3 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 | |
| PERFORMANCE | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Data Transfer Rate | 40 Gbps (Thunderbolt 3) 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) | |
| Maximum Digital Resolutions | Dual 4K displays - DisplayPort 4096 x 2160p @ 60Hz / 3840 x 2160p @ 60Hz Single 5K display - DisplayPort 5120 × 2880 @ 60Hz | |
| PXE | No | |
| Type and Rate | Thunderbolt 3 - 40 Gbit/s | |
| UASP Support | Yes | |
| CONNECTOR(S) | ||
| Connector Type(s) | 1 - Thunderbolt™ 3 USB-C (24-pin) Male | |
| 2 - DisplayPort (20 pin) Female | ||
| 1 - USB Type-A (9 pin) USB 3.0 Female | ||
| 1 - RJ-45 Female | ||
| SOFTWARE | ||
| OS Compatibility | Windows® 7, 8, 8.1, 10 macOS 10.12 - 10.13 | |
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). | |
| A 5K-capable DisplayPort display is required to achieve 5120 × 2880 resolution. | ||
| Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz). | ||
| Active adapters are required if adapting DisplayPort to HDMI/DVI/VGA monitors. | ||
| System and Cable Requirements | Thunderbolt 3 equipped computer with a Thunderbolt 3 port. | |
| POWER | ||
| Power Source | USB-Powered | |
| ENVIRONMENTAL | ||
| Humidity | 5~95% RH (Non-condensing) | |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 7.9 in [200 mm] | |
| Color | Black & Gray | |
| Enclosure Type | Aluminum | |
| Product Height | 0.7 in [18.8 mm] | |
| Product Length | 4.7 in [120 mm] | |
| Product Weight | 5.1 oz [145.8 g] | |
| Product Width | 2.4 in [60 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 9.5 oz [268.2 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - Thunderbolt 3 dock | |
| 1 - instruction manual | ||
