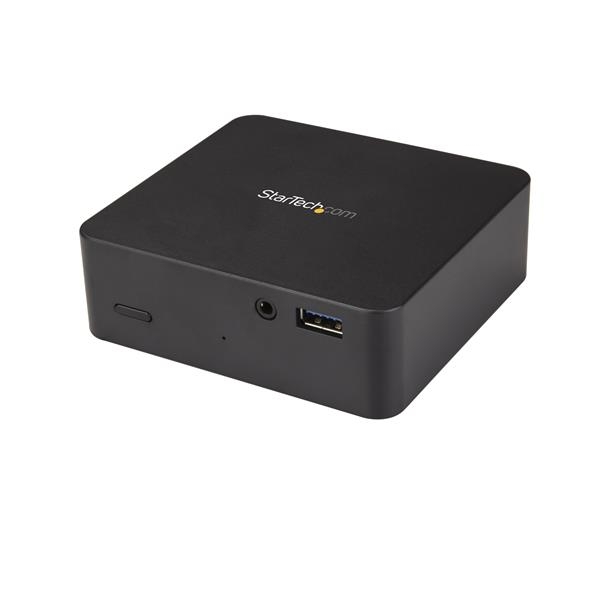

Startech Usb C Dock With Hdmi - 4k Hdmi - 85w Power Delivery / Charging - Windows / Mac - Laptop
| SKU: | 265157 |
|---|---|
| MPN: | DK30CHDPD Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Overview
This USB-C™ dock gives you all the connections you need to turn your USB-C enabled laptop or tablet into a fully capable workstation, with support for a single external 4K HDMI® monitor or ultrawide monitor. With USB Power Delivery 2.0 (85W), you can power and charge your laptop as you work, eliminating the need to use a separate power adapter with your laptop. It’s the perfect companion for your MacBook Pro or other Thunderbolt™ 3 equipped laptop or tablet.
Create a 4K HDMI workstation
The USB-C dock helps you maximize your workspace, ideal for smaller or shared work areas using one monitor. The dock expands the display capabilities of your laptop, connecting to an HDMI display with support for resolutions including: 4096x2160 @ 30Hz, 3840 x 2160 @ 30Hz, 2560x1600 @60 Hz, 1920 x 1200 @ 60Hz.
Create an immersive experience by connecting the USB-C dock to an ultrawide or ultrawide curved monitor with 21:9 aspect ratio (3440 x 1440p @ 60 Hz), to emulate a multi-display set-up and gain exceptional picture quality.
Ample connections
The dock provides four USB 3.0 (Type-A) ports to connect peripherals such as your mouse or keyboard. It also includes a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port (with PXE Boot support) and a combined 3.5 mm audio and microphone port.
Universal support
Compatible with Mac and Windows®, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.
The DK30CHDPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| PRODUCT NUMBERS | ||
|---|---|---|
| TechData Dis | 13301725 | |
| ASI | 217850 | |
| Ingram Micro USA | 5BK885 | |
| Synnex US | STA-DK30CHDPD | |
| UPC Code | 065030875608 | |
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 3 Years | |
| HARDWARE | ||
| 4K Support | Yes | |
| Bus Type | USB-C | |
| Chipset ID | Parade - PS176 Realtek - RTL8153 Realtek - RTS5411 C-Media - CM6533 | |
| Displays Supported | 1 | |
| Fast-Charge Port(s) | Yes | |
| Industry Standards | USB Power Delivery Specification Rev. 2.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 | |
| Interface | USB 3.0 | |
| PERFORMANCE | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) | |
| Maximum Digital Resolutions | HDMI - 4096x2160 @ 30Hz, 3840 x 2160 @ 30Hz, 2560x1600 @60 Hz, 1920 x 1200 @ 60Hz UltraWide - 3440 x 1440p @ 60 Hz | |
| PXE | Yes | |
| Type and Rate | USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes | |
| CONNECTOR(S) | ||
| Connector Type(s) | 1 - HDMI (19 pin) Female | |
| 1 - USB Type-C (24 pin) USB 3.0 Female | ||
| 1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female | ||
| 3 - USB Type-A (9 pin) USB 3.0 Female | ||
| 1 - Ethernet Gigabit Female | ||
| 1 - 3.5 mm Mini-Jack (4 Position) Female | ||
| SOFTWARE | ||
| OS Compatibility | Windows® 7, 8, 8.1, 10 Mac OS® 10.11 to 10.13 | |
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. | |
| Supports 4K resolution. A 4K-capable HDMI display is required to achieve 4Kx2K resolution. | ||
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps | ||
| System and Cable Requirements | USB-C enabled computer with an available USB Type-C port | |
| POWER | ||
| Center Tip Polarity | Positive | |
| Input Current | 2 A | |
| Input Voltage | 100 ~ 240 AC | |
| Output Current | 5 A | |
| Output Voltage | 20V DC | |
| Plug Type | N | |
| Power Consumption (In Watts) | 100W | |
| Power Delivery | 85W | |
| Power Source | AC Adapter Included | |
| ENVIRONMENTAL | ||
| Humidity | 5%~95% RH (Non-condensing) | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Black | |
| Enclosure Type | Plastic | |
| Product Height | 1.3 in [32 mm] | |
| Product Length | 3.9 in [98 mm] | |
| Product Weight | 7.1 oz [200 g] | |
| Product Width | 3.6 in [91 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 2.7 lb [1.2 kg] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - docking station | |
| 1 - 3.3 ft [1 m] USB-C cable | ||
| 1 - universal power adapter (NA/JP, ANZ) | ||
| 1 - quick-start guide | ||
