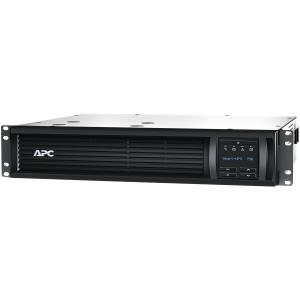

APC Smart-Ups 750VA LCD RM 2U 230V with SmartConnect Smt750Rmi2Uc

$678.00
SKU: 284706
MPN: SMT750RMI2UC Link
Manufacturer: https://www.apc.com
Brand: Apc
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
Untitled 1

SMT750RMI2UC Features

APC Smart-UPS 750VA LCD RM 2U 230V with SmartConnect
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, USB cable
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • Intuitive LCD interface
    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartConnect
    Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • SmartSlot
    Customize UPS capabilities with management cards.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Manageability

USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Serial connectivity
Provides management of the UPS via a serial port.
LED status indicators
Quickly understand unit and power status with visual indicators.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
Network manageable
Provides remote power management of the UPS over the network.
Disconnected battery notification
Warns when a battery is not available to provide backup power.

Availability

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adaptability

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Serviceability

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Resettable circuit breakers
Enables a quick recovery from overload events.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Marketing Features

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Smarter productivity  with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Safety

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Product Distribution

Andorra, Albania, Austria, Australia, Bosnia and Herzegovina, Belgium, Bulgaria, Switzerland, Serbia and Montenegro, Cyprus, Czech Republic, Germany, Denmark, Estonia, Spain, Finland, Fiji, France, United Kingdom, Gibraltar, Greece, Croatia, Hungary, Indonesia, Ireland, Israel, Iceland, Italy, Cambodia, South Korea, Liechtenstein, Lithuania, Luxembourg, Latvia, Moldova, Macedonia, Mongolia, Malta, Malaysia, Netherlands, Norway, New Zealand, Philippines, Poland, Portugal, Romania, Sweden, Singapore, Slovenia, Slovakia, Thailand, TP, Turkey, Vietnam
Untitled 1
Basic
Application/Usage: Network Device
Network Hub
POS Terminal
Power Equipment
Router
Server
Switch
Backup/Run Time (Full Load): 5.50 Minute
Brand Name: APC by Schneider Electric
Form Factor: Rack-mountable
Input Voltage Range: 160 V AC - 286 V AC
Input Voltage: 230 V AC
Load Capacity (VA): 750 VA
Load Capacity (Watt): 500 W
Network (RJ-45): Yes
Plug/Connector Type: IEC 60320 C14
Product Family: Smart-UPS
Product Type: Line-interactive UPS
Rack Height: 2U
Receptacles: 2 x IEC Jumper
4 x IEC 60320 C13
Waveform Type: Sinusoidal
Battery Information
Backup/Run Time (Full Load): 5.50 Minute
General Information
Brand Name: APC by Schneider Electric
Manufacturer Website Address: http://www.schneider-electric.com.au
Manufacturer: Schneider Electric SA
Product Line: Smart-UPS
Product Name: Smart-UPS 750VA Rack-mountable UPS
Product Type: Line-interactive UPS
Interfaces/Ports
Network (RJ-45): Yes
Miscellaneous
Environmentally Friendly: Yes
Physical Characteristics
Depth: 409 mm
Form Factor: Rack-mountable
Height: 86 mm
Rack Height: 2U
Weight (Approximate): 17.27 kg
Width: 432 mm
Power Description
Input Voltage Range: 160 V AC - 286 V AC
Input Voltage: 230 V AC
Load Capacity: 750 VA/500 W
Output Voltage: 220 V AC
230 V AC
240 V AC
Waveform Type: Sinusoidal
Technical Information
Application/Usage: Network Device
Network Hub
POS Terminal
Power Equipment
Router
Server
Switch
Plug/Connector Type: IEC 60320 C14
Receptacles: 2 x IEC Jumper
4 x IEC 60320 C13
Transfer Time: 10 ms
