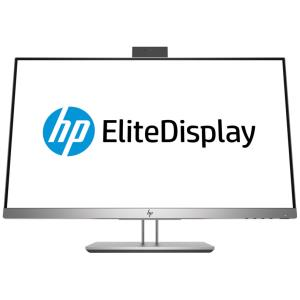

main product photo

Hp Elitedisplay E243D 23.8-Inch Docking Monitor 1Tj76Aa

Special Price $479.00 Regular Price $551.00
SKU: 273929
MPN: 1TJ76AA Link
Manufacturer: https://www8.hp.com/au/en/home.html
Brand: Hp
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
Make the most of your desk with streamlined USB-C™1, network, and accessory connectivity, plus a pop-up HD webcam, with the HP EliteDisplay E243d 23.8-inch Docking Monitor, our most advanced 23.8" docking display.

　

Maximum efficiency in a modern, minimalist footprint

　

Create a command center from a display and built-in docking station that’s ready to drive your workspace as soon as you plug in. Power your notebook and send and receive video over driverless USB-C™.1 Connect your wired network through the RJ-45.

　

Control your window to the world

　

Reveal more of your work and support virtually seamless tiling with a 60.45 cm (23.8”) diagonal IPS FHD screen and 3-sided micro-edge bezel. Daisy chain a second display2from one PC connection with a DisplayPort™ output.

　

Expand your view

　

Experience a virtually seamless dual-display setup with 3-sided micro-edge bezels when you daisy chain a second display from a single USB-C™ connection on your PC.5

Featuring

　

Immediate expansion

　

    • Save time by leaving your USB devices connected to one of the 4 USB 3.0 ports, and access your network through the RJ-45. Maintain legacy compatibility with VGA, HDMI, and DisplayPort™ out ports.

    　

    Find your comfort zone

    　

      • Work comfortably with adjustable tilt, height, and swivel settings. Use pivot rotation to conveniently customize portrait or landscape views.

    　

    Pair with your PC

    　

      • Do even more with an easy clean desk solution. Attach your HP EliteDesk Mini Desktop PC directly behind the display and power it through the USB-C™ connection.

    　

    Divide and conquer

    　

      • Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and helps deter theft by dimming a display that’s disconnected without approval.

    　

    Click or call for support

    　

      • Rest assured that your IT investment is supported by a three-year standard limited warranty.

Display specifications

　

Display size (diagonal)
60.45 cm (23.8")
Panel active area
52.7 x 29.64 cm
Aspect ratio
16:09 1
Native resolution
FHD (1920 x 1080 @ 60 Hz)
Resolutions supported
  • 1280 x 1024
  • 1280 x 720
  • 1280 x 768
  • 1280 x 800
  • 1440 x 900
  • 1600 x 900
  • 1680 x 1050
  • 1920 x 1080
  • 640 x 480
  • 720 x 400
  • 800 x 600
Pixel pitch
0.274 mm
Brightness
250 cd/m² 1
Contrast ratio
1000:1 static
5000000:1 dynamic 1
View angle
178° horizontal
178° vertical
Response time
7 ms gray to gray 1
Tilt and swivel angle
Swivel: ±45°
Tilt: -5 to +23°
Pivot rotation: 90°
Display features
Anti-glare
Anti-static
BrightView panel
In plane switching
Language selection
LED backlights
Low haze
On-screen controls
Pivot rotation
Plug and Play
User programmable
Physical security
Security lock-ready 3
VESA mount
  • 100 mm

Connectivity

　

Input connector
1 HDMI 1.4
1 VGA
1 USB Type-C™ (Alternative mode DisplayPort™ 1.2, power delivery up to 65 W)
1 USB Type-B 4,5
((with HDCP support for USB-C™ and HDMI) )
Ports
1 audio-in
1 headphone-out
1 RJ-45
1 USB 3.1 (fast charging, power delivery up to 7.5 W)
3 USB 3.1 (power delivery up to 4.5 W)
1 DisplayPort™ 1.2-out 1,5

Multimedia and Input Devices

　

Webcam
720p integrated HD with dual array microphone and LED

Dimensions and weight

　

Weight
6.2 kg
(With stand.)
Product dimensions without stand (W x D x H)
53.88 x 4.535 x 32.19 cm
(Without stand.)
Dimensions With Stand (W x D x H)
53.88 x 20.5 x 46.3 cm

Power and operating requirements

　

Power supply
  • Input voltage 100 to 240 VAC
Power consumption
  • 155 W (maximum)
  • 38 W (typical)
  • 0.5 W (standby)
Power consumption
42 kWh
Operating temperature range
5 to 35°C
Operating humidity range
20 to 80% non-condensing
Energy efficiency class
  • B
Environmental
  • Arsenic-free display glass
  • Low halogen
  • Mercury-free display backlights

Energy Efficiency

　

Energy efficiency class
  • B
Display size (diagonal)
60.45 cm (23.8")
Power consumption
42 kWh
Resolution (native)
FHD (1920 x 1080 @ 60 Hz)

Certification and compliance

　

Certifications and compliances
  • Australian-New Zealand MEPS
  • BSMI
  • BSMI AS/NZS 3548 Class B
  • CB
  • CCC
  • CE
  • cTUVus
  • EAC
  • FCC
  • ICES
  • ISO 9241-307
  • KC
  • KCC
  • Microsoft WHQL Certification (Windows 10, Windows 8.1 and Windows 7)
  • NOM
  • PSB
  • SmartWay Transport Partnership (NA)
  • TUV-S
  • UL
  • VCCI
  • Vietnam MEPS
  • WEEE
  • ISC
  • Low blue light
  • China Energy Label (CEL) Grade 3

What's included

　

Warranty
3 year limited warranty including 3 year of parts, labor, and next business-day onsite service. Terms and conditions vary by country. Certain restrictions and exclusions apply.
What's in the box
  • AC power cord
  • Documentation
  • HDMI cable
  • USB Type-C™ cable
  • USB Type-A to B cable
  • DC-DC cable
  • DC jack dongle
  • External power supplier
  • QSP
  • Product notice
1  All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
2  External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
3  Lock is sold separately.
4  1 USB Type-C™ with HDCP support.
5  Only one host PC should be connected to either USB Type-C™ port or DC OUT port for Power pass through. Connecting two Host PCs to the HP EliteDisplay E243d 23.8-inch Docking Monitor may result in system shutdown, loss of power, and the need to power-cycle the monitor’s AC supply.
Marketing TextMake the most of your desk with streamlined USB-C, network, and accessory connectivity, plus a pop-up HD webcam, with the HP EliteDisplay E243d 23.8 inch Docking Monitor. Create a command center from a display and built-in docking station thats ready to drive your workspace as soon as you plug in.
PI DateJan 2019
Brand NameHP
Manufacturer Web Sitehttp://www.hp.com
Product ModelE243d
Product LineEliteDisplay
Product TypeLED Monitor
Aspect Ratio16:09
Brightness250NIT
ColorAsteroid Bezel and Jack Black
Contrast Ratio1000:1
Dynamic Contrast Ratio5,000,000 : 1
Dot Pitch0.274mm
HDCP SupportYes
High Definition CompatibilityFullHD
LCD Backlight TechnologyLED
Resolution1920 x 1080
Response Time7ms
Screen Size23.8inch
Screen TypeIPS
Height AdjustableYes
PivotYes
TiltYes
SwivelYes
Depth (mm)45.4
Height (mm)321.9
Width (mm)538.8
Power Wattage38Watt
Scanning Frequency (Horizontal)80KHz
Scanning Frequency (Vertical)60Hz
Viewing Angle (Horizontal)178degree
Viewing Angle (Vertical)178degree
Other Features* 720p integrated HD with dual array microphone and LED
* Work comfortably with adjustable tilt, height, and swivel settings. Use pivot rotation to conveniently customize portrait or landscape views
* Experience a virtually seamless dual-display setup with 3-sided micro-edge bezels when you daisy chain a second display from a single USB-C connection on your PC
Warranty Information3 Years
