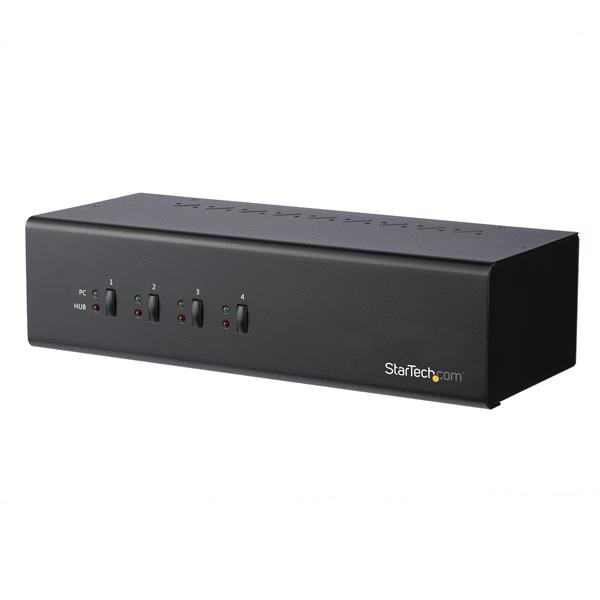

Startech 4-Port Dvi Kvm Switch - Dual Monitor - Taa Compliant Usb 3.0 Kvm Switch Sv431Dd2Du3A
| SKU: | 273957 |
|---|---|
| MPN: | SV431DD2DU3A Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
The TAA compliant Dual-Monitor DVI KVM Switch controls four multimedia computer systems from one dual-DVI monitor workstation.
Increase Productivity
The KVM switch supports four separate multimedia computer systems and the use of a dual DVI-D single-link monitor workstation, increasing productivity by enabling you to access more information at once.
Integrated USB 3.0 Hub
The 2-port hub that’s built into the USB 3.0 KVM switch shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected while supporting high-performance peripherals such as flash drives and video capture devices.
Full Multimedia Support
With support for separate stereo audio and microphones, the KVM switch box connects everything you need directly to your systems, saving you money and desk space.
Easy to Operate
The front-panel push-buttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while an optional buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 4-port DVI USB KVM switch is backed by a 2-year warranty and free lifetime technical support.
Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Audio | Yes | |
| Cables Included | No | |
| Daisy-Chain | Yes | |
| KVM Ports | 4 | |
| Number of Monitors Supported | 2 | |
| PC Interface | USB 3.0 | |
| PC Video Type | DVI | |
| Rack-Mountable | No | |
| PERFORMANCE | ||
| Auto Scan | 10, 20, 30, 40, 50, and 60 seconds | |
| DVI Support | Yes - Single Link | |
| Hot-Key Selection | Yes | |
| IP Control | No | |
| Maximum Analog Resolutions | 2048 x 1536 @ 85Hz | |
| Maximum Data Transfer Rate | 5 Gbps | |
| Maximum Digital Resolutions | 1920 x 1200 @ 60Hz | |
| On-Screen Display | No | |
| Port Selection Support | Push Button and Hotkeys | |
| Supported Resolutions | Minimum 640 x 480 | |
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Console Interface(s) | 2 - DVI-I (29 pin) Female Output | |
| 2 - USB Type-A (4 pin; HID Port) USB 1.1 Female Input | ||
| 2 - USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Female | ||
| 1 - 3.5 mm Mini-Jack (3 Position) Female Input | ||
| 1 - 3.5 mm Mini-Jack (3 Position) Female Output | ||
| Host Connectors | 8 - DVI-I (29 pin) Female Input | |
| 4 - 3.5 mm Mini-Jack (3 Position) Female Input | ||
| 4 - 3.5 mm Mini-Jack (3 Position) Female Output | ||
| 4 - USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps) Female | ||
| INDICATORS | ||
| LED Indicators | 4 - Red | |
| 4 - Green | ||
| POWER | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.8A | |
| Input Voltage | 100 ~ 240 AC | |
| Output Current | 2A | |
| Output Voltage | 9 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 18 W | |
| Power Source | AC Adapter Included | |
| ENVIRONMENTAL | ||
| Humidity | 0~90% RH, Non-condensing | |
| Operating Temperature | 0~40 degree C | |
| Storage Temperature | -20~60 degree C | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Black | |
| Enclosure Type | Steel | |
| Product Depth | 3.9 in [100 mm] | |
| Product Height | 2.6 in [66 mm] | |
| Product Length | 0.000 | |
| Product Weight | 2.9 lb [1.3 kg] | |
| Product Width | 10 in [253 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 10.6 oz [300 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - KVM switch | |
| 1 - universal power adapter (NA/JP, EU, UK, ANZ) | ||
| 1 - quick-start guide | ||
