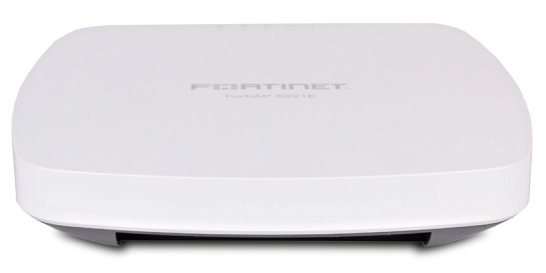

Fortinet Universal Indoor Wireless Ap - Dual Radi Fap-U221Ev-N-Nfr
| SKU: | 287652 |
|---|---|
| MPN: | FAP-U221EV-N-NFR Link |
| Manufacturer: | https://www.fortinet.com |
| Brand: | Fortinet |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
The Fortinet U221EV and U223EV access points support the latest 802.11ac Wave 1 standard, with a client association rate of up to 867 Mbps. These APs feature two 2x2:2 radios, supporting client devices transmitting up to two spatial streams.
- 802.11ac Wave 1
- Dual Radio 2.4 & 5 GHz
- 4 Interior/Exterior Antennas
- 2x2 MIMO
- Up to 300 + 867 Mbps
Universally Manageable Access Points
Fortinet’s FortiAP-U Series offers a wide range of Access Points capable of being managed by any of Fortinet’s controller and management options: Cloud, FortiOS, or WLAN Controller. Access Points are available across the performance spectrum up to the fastest 802.11ac Wave 2 4x4:4 devices.
Universal
Access Management
Ability to intelligently support stand-alone controllers (FortiWLC),
integrated security controllers (FortiGate) and cloud management
options, establish a new benchmark in flexibility, performance and
security.
Latest WiFi
technologies
802.11ac Wave 2 technology with data rates of up to 3.5 Gbps and
multi-user MIMO (MU-MIMO) improves client throughput and range.
Unmatched
Security Protection
Integrates with Fortinet’s Security Fabric providing unparalleled
cybersecurity protection at the network edge.
Specifications
| Hardware Type | Indoor AP |
| Number of Radios | 2 + 1 BT/BLE |
| Number of Antennas | 4 Internal + 1 BT/BLE internal |
| Antenna Type and Peak Gain | Patch: 3 dBi for 2.4 GHz, 4 dBi for 5 GHz |
| Frequency Bands (GHz)* | 2.400-2.4835, 5.150-5.250, 5.250-5.350, 5.470-5.725, 5.725-5.850 |
| Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (64 QAM) |
| Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) |
| Maximum Data Rate |
Radio 1: up to 300 Mbps Radio 2: up to 867 Mbps |
| Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
| Interfaces | 1x 10/100/1000 Base-T RJ45, 1x Type A USB |
| Power over Ethernet (PoE) | IEEE 802.3af or 802.3.at |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA and WPA2 with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power |
2.4 GHz: 25 dBm / 316 mW (2 chains combined)* 5 GHz: 23 dBm/ 200 mW (2 chains combined)* |
| Kensington Lock | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az |
| SSID Types Supported | Local-Bridge, Tunnel & Mesh |
| Per Radio Client Capacity | Up to 128 |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| 802.11ac Wave 2 MU-MIMO | No |
| Transmit Beam Forming (TxBF) | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interval | Yes |
| Wireless Monitoring Capabilities | |
| Rogue Scan Radio Modes | Background, Full-time |
| WIPS / WIDS Radio Modes | Background, Full-time (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 7.87 x 7.87 x 1.5 inches (200 x 200 x 40 mm) |
| Weight | 1.2 lbs (0.55 kg) |
| Package (shipping) Weight | 2.5 lbs (1.15 kg) |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Mount kits for Ceiling, T-Rail, and Wall |
| Environment | |
| Power Supply | SP-FAP200-PA-XX, GPI-115, or GPI-130 |
| Power Consumption (Max.) | 12.5 W |
| Humidity | 5% to 90% non-condensing |
| Operating Temperature | 32 to 122°F (0-50°C) |
| Storage Temperature | -40 to 158˚F (-40 to 70˚C) |
| Directives | Low Voltage Directive • RoHS2 |
| UL2043 Plenum Material | No |
| Mean Time Between Failures | >30 Years |
| IP Rating | - |
| Surge Protection Built In | - |
| Hit-less PoE Failover | No |
| Certifications | |
| WiFi Alliance Certified | Yes |
| DFS | FCC, IC, CE, Japan |
| Certifications | |
| Limited Lifetime Warranty | Yes |
