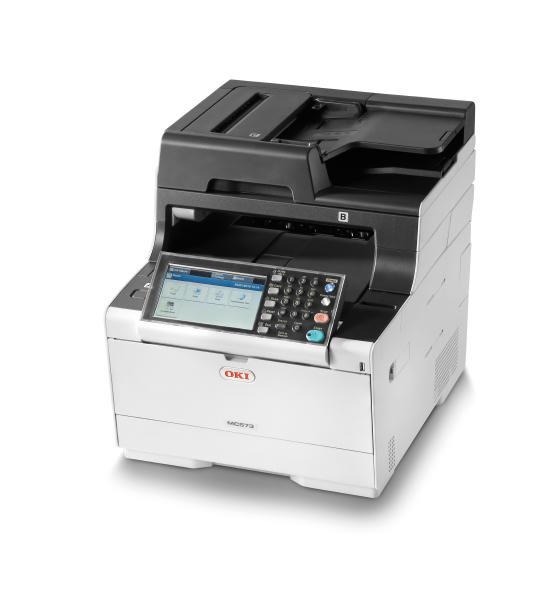

main product photo

Oki Mc573dn Colour A4 30 - 30ppm Network Airprint, Google Cloud Print, Duplex 350 Sheet +options

4-in-1 MFP with 7 inch Colour Touch Panel 46357104
$738.00
SKU: 227868
MPN: 46357104 Link
Manufacturer: http://www.oki.com/
Brand: Oki
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

Productivity and connectivity

Keeping productivity high and seamlessly connected

Important security features

Keep documents confidential and access stored print jobs when required

smart Extendable Platform (sXP)

Allows for connectivity to pull printing fleet and other devices

Simple to set-up, use and own

Low power consumption and duplex printing as standard

The MC573dn is perfect for businesses that need print, copy, scan and fax functions and high-quality, ultra-fast output. The device’s added memory, media flexibility, smart features and intuitive controls put it at the top of the MFP class.

MC562dnw Print Sample

Productivity and connectivity - Keeping productivity high and seamlessly connected

Perfect for businesses that need print, copy, scan and fax functions and high-quality, ultra-fast output. The device’s added memory, media flexibility, smart features and intuitive controls put it at the top of the MFP class.

  • High resolution 1200 x 1200dpi colour printing with print speeds of 30ppm, with duplex printing as standard
  • High definition LED colour scanner with speeds of 30ipm and a range of functions designed to improve workflow and productivity in the workplace
  • 1GB RAM memory for trouble-free printing of graphics-intensive documents
  • Gigabit Ethernet enables fast transfer of large colour files across the network
  • Mobile printing from smartphones and tablets, Google Cloud Print 2.0 ready, as well as being compatible with AirPrint by Apple Inc.
  • Wireless Direct feature offers safe simultaneous connection of wired and wireless networking
  • Optional Wireless LAN Module available

Mobile Printing >

Important security features - Keep documents confidential and access stored print jobs when required

Helping businesses to stay in control of printing output and cost, the MC573dn includes a wide range of cost and time-saving features.

  • Keep documents confidential with Private Print and optional Card Release, so users can view all print jobs before selecting which ones to print
  • Internet Protocol Security (IPSec) compliance, ensuring securing that documents are safely sent and received

smart Extendable Platform (sXP) – Allows for connectivity to pull printing fleet and other devices

The MC573dn gives businesses access to a wide range of new features. Connecting to existing pull printing fleets and third-party IT applications is simple, bringing the power of smart technology to any workgroup.

  • OKI's open architecture sXP for workflow integration and document management
  • Intuitive, customisable 7” colour LCD touch screen
  • Potential to run third-party applications on the device, such as PaperCut MF and Drivve Image
  • Access to document management software SENDYS Explorer LITE at no extra cost
  • SENDYS Output Manager option, allowing administrator to manager all users’ print jobs, reducing costs and environmental impact
  • Software development kit (SDK) available for rapid implementation of a custom solution

Simple to set-up, use and own - Low power consumption and duplex printing as standard

The MC573dn is easy to set-up and use with a range of eco-friendly features that save energy and help to lower running costs, including duplex printing as standard.

  • Video guidance for installation and changing consumables
  • When new features are available you can update the device via the OKI portal
  • Trouble-shooting on the device screen and via OKI Mobile Print app
  • Quiet mode ideal for smaller offices
  • Deep Sleep mode saves energy, Auto-Off mode automatically powers down to less than 0.5W when not in use
  • Toner Save to reduce costs, when printing draft or internal documents
  • Duplex printing reduces paper usage
  • LED technology means no moving parts for a longer life
  • Free consumables recycling programme
ype Desktop
Scanning Method Color CIS
Printing Technology Digital 4 LED Full-color Electrophotographic Printing Method
Input Capacity Tray 1 : 250 sheets
(Optional)Additional Tray : 530 sheets
Multi-purpose tray : 100 sheets
Scan Resolution Up to 600 x 600 dpi
Print Resolution Up to 1200 x 1200 dpi
Original Type Sheet
Original Size Flatbed: A4, A5, A6, B5, B6, Letter, Executive, Statement, Custom Size: Width 0-216 mm x Length 0-297 mm; ADF: A4, A5, A6, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Folio
Copy Paper Size A4, A5, A6, B5, B6, B6 Half, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Statement, Folio, 16K, Index Card (3" x 5") (75 x 125mm), Photo Size (4" x 6", 5" x 7") (100 x 150mm, 125 x 175mm), Envelopes, Postcard, Return postcard
Reduction / Enlargement 25 – 400 %
Maximum Copies 999 sheets
Copy Speed A4 30 cpm color, 30 cpm mono
First Copy Out Time Color: Approx. 12.0 seconds, Mono: Approx. 12.0 seconds
Warm-up Time Approx. 35.0 seconds from power-on
Approx. 28.0 seconds from power save
Power Consumption Operating: Max. 1,270W / Ave. 670W
Idle: 100W
Power Save: 20.0W
Deep Sleep: 1.5W
Auto-Off: 0.5W
Memory (Std./Max.) 1GB/1GB
Noise Level Operating :Approx. 56 dBA
Idle: < 37 dBA
Quiet Mode: < 52 dBA
Power save: Background level
Operating Environment Operating: 10 - 32 °C, 20 - 80 %RH
Storage: 0 - 43 °C, 10 - 90 %RH
No condensation
Dimensions(WxDxH) 427 x 576 x 472 mm
Weight(includes supplies) Approx. 31.0 kg
Duty Cycle Recommended: 6,000 pages/month
Maximum: 60,000 pages/month
In the Box Manuals, Starter toner cartridge x 4, Image Drum x 4, Power cable, DVD-ROM, Telephone Cable

Print

Print Speed A4 30 ppm color, 30 ppm mono
First Print Out Time Color: Approx. 7.5 seconds
Mono: Approx. 7.5 seconds
Print Resolution 600 x 600 dpi
1200 x 1200 dpi
Physical dot pitch: 1200 dpi
Interface 1000BASE-T/100BASE-TX/10BASE-T, (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed), USB 2.0 (High Speed) Host
Protocol TCP/IP
Printer Language PCL 6 (XL) emulation, PCL 5c emulation, PostScript 3 emulation, IBM ProPrinter emulation, Epson FX Emulation, XPS emulation, PDF v1.7 emulation
Supported OS Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.11, OS X 10.10, OS X 10.9, OS X 10.8, Linux
Memory (Std./Max.) 1GB/1GB
Font PostScript emulation 80 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts
Paper Size A4, A5, A6, B5, B6, B6 Half, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Statement, Folio, 16K, Index Card (3" x 5") (75 x 125mm), Photo Size (4" x 6", 5" x 7") (100 x 150mm, 125 x 175mm), Envelopes, Postcard, Return postcard, Custom Size: Width 64-216 mm x Length 90-1321 mm
Paper Weight Tray 1 : 64 - 176 gsm
(Optional)Additional Tray : 64 - 176 gsm
Multi-purpose tray : 64 - 220 gsm
Input Capacity Tray 1 : 250 sheets
(Optional)Additional Tray : 530 sheets
Multi-purpose tray : 100 sheets
Output Capacity Face Down : Max. 150 sheets
Face Up : Max. 100 sheets

Scan

Scan Resolution Max. 600 x 600 dpi
Scan Speed Max. 30 ipm Color, 30 ipm mono
Interfaces 1000BASE-T/100BASE-TX/10BASE-T, (Optional)Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed), USB 2.0 (High Speed) Host
Supported Protocol SMB, FTP(S), TWAIN, WIA2.0
Output Format Secure PDF, High compression PDF, PDF, JPEG, TIFF, XPS
Driver TWAIN, WIA2.0(Windows Vista or later), ICA(Mac OS X 10.6 or later)

Fax

Applicable Line PSTN, PBX
Interface RJ-11 x 2 (Line, Tel)
Transmission Resolution Normal: 8 dots/mm x 3.85 lines/mm
Fine/Photo: 8 dots/mm x 7.7 lines/mm
Extra Fine: 8 dots/mm x 15.4 lines/mm
Communication Speed Super G3: 33.6kbps
Encoding Method MH, MR, MMR, JBIG
Communication Mode ITU-TG3, Super G3
Transmission Time Approx. 2.0 sec. / page
Memory Max. 8,000 pages (256MB)
Other Function PC Fax, 1 touch Dial(40 locations), Speed Dial(1000 locations), F-Code Confidential FAX

Document feeder

Type Reverse Automatic Document Feeder (RADF)
Original Size A4, A5, A6, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Folio, Custom Size: Width 105-216 mm x Length 148-356 mm
Original Weight Simplex : 60 - 105 gsm
Duplex : 60 - 90 gsm
Capacity Max. 50 sheets
Original Exchange Speed Simplex 30 ppm color, 30 ppm mono
Duplex 14 ppm color, 14 ppm mono

Space required

MC573dn
MC573dn
MC573dn
Bringing secure document management and cost control within reach of small to medium-sized businesses and workgroups. If you thought secure document management was only possible for large corporates, think again. The MC573dn makes all the benefits of smart multifunction printers (MFPs) affordable for small to medium-sized businesses and workgroups. It also makes them easy to achieve with a 7" colour LCD touch screen and OKI's open architecture smart extendable platform (sXP) which gives access to document management and provides connectivity into a pull printing fleet. Plus a powerful engine enabling ultra-fast, high-quality colour printing.
⚫3 Year warranty, at no extra cost, if registered within 30 days of purchase
⚫Full customisable 7" colour LCD touch screen
⚫Impressive 30ppm print engine that gives true 1200 x 1200dpi print resolution
⚫30ipm colour scanning for busy workgroups
⚫1GB RAM memory for easy handling of graphics-intensive documents
⚫Citrix XenApp 7.6 compatibility - ideal for virtual network environment
⚫Gigabit Ethernet enables fast transfer of large colour files across the network
⚫Mobile printing from smartphones and tablets, Google Cloud Print 2.0 ready, as well as being compatible with AirPrint by Apple Inc.
⚫Maximum 1,410 sheet paper capacity with two optional trays
