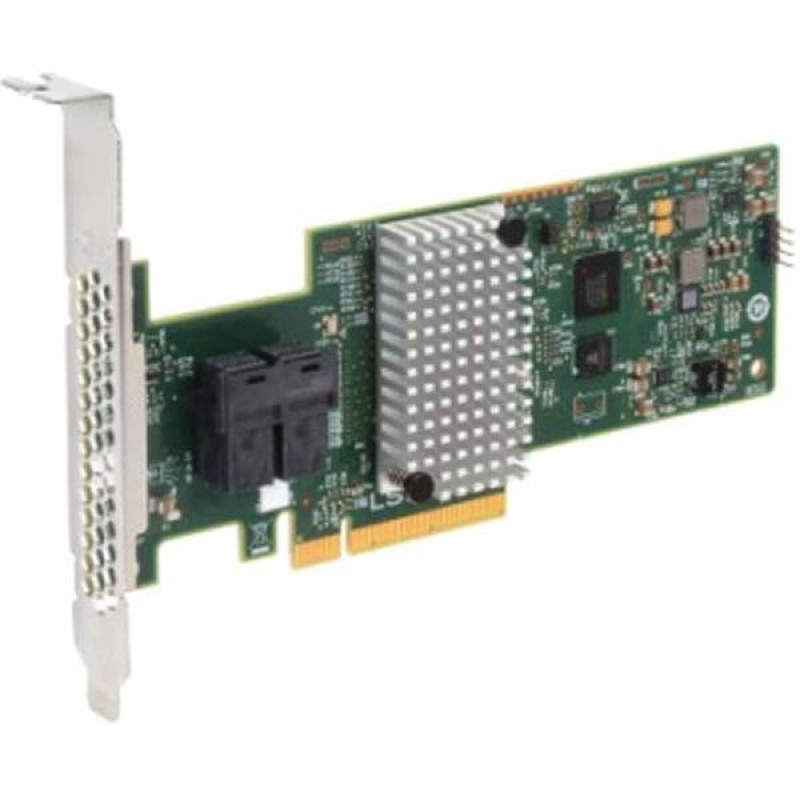

Lenovo N2215 Sas/ Sata Hba Foribm System X 47c8675
| SKU: | 207864 |
|---|---|
| MPN: | 47C8675 |
| Manufacturer: | http://www.lenovo.com |
| Brand: | Lenovo |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
The N2215 SAS/SATA HBA for IBM System x is an ideal solution for System x servers that require high-speed internal storage connectivity. This eight-port host bus adapter supports direct attachment to SAS and SATA internal HDDs and SSDs. With a low-profile form-factor design, the N2215 SAS/SATA HBA offers two x4 internal mini-SAS HD connectors.
| Actual Weight | 3.10 oz |
|---|---|
| Compatibility Notes | LSI SAS3008 12 Gbps controller PCI low profile, half-length - MD2 form factor PCI Express 3.0 x8 host interface Eight internal 12 Gbps SAS/SATA ports (support for 12, 6, or 3 Gbps SAS speeds and 6 or 3 Gbps SATA speeds) Up to 12 Gbps throughput per port Two internal x4 HD Mini-SAS connectors (SFF-8643) Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported) Optimized for SSD performance High-performance IOPS LSI Fusion-MPT architecture Advanced power management support Support for SSP, SMP, STP, and SATA protocols End-to-End CRC with Advanced Error Reporting T-10 Protection Model for early detection of and recovery from data corruption Spread Spectrum Clocking for EMI reductions |
| Connectivity | |
| Connector | Mini SAS HD 36-pin 4x (SFF-8643) |
| Connector Type | SAS |
| Slot Type | PCI-Express 3.0 |
| Contents | adapter, documentation |
| General | |
| Adapter Type | Host bus adapter |
| Performance | |
| Data Transfer Rate | 12 GB/s |
| Physical Dimensions | 2.7"h x 0.7"w x 6.7"d |
| Ports/Connectors | (2) x4 HD Mini-SAS (internal) |
| UNSPSC | 43201500 |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
Vendor Info
The N2215 SAS/SATA HBA is a 12Gb SAS/SATA host bus adapter for connectivity to internal storage. This eight-port host bus adapter supports direct attachment to SAS and SATA internal HDDs and SSDs. With a low-profile form-factor design, the N2215 SAS/SATA HBA offers two x4 internal mini-SAS HD connectors.
The N2215 SAS/SATA HBA has the following features and specifications:
- LSI SAS3008 12 Gbps controller
- PCI low profile, half-length - MD2 form factor
- PCI Express 3.0 x8 host interface
- Eight internal 12 Gbps SAS/SATA ports (support for 12, 6, or 3 Gbps SAS speeds and 6 or 3 Gbps SATA speeds)
- Up to 12 Gbps throughput per port
- Two internal x4 HD Mini-SAS connectors (SFF-8643)
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
- Optimized for SSD performance
- High-performance IOPS LSI Fusion-MPT architecture
- Advanced power management support
- Support for SSP, SMP, STP, and SATA protocols
- End-to-End CRC with Advanced Error Reporting
- T-10 Protection Model for early detection of and recovery from data corruption
- Spread Spectrum Clocking for EMI reductions
