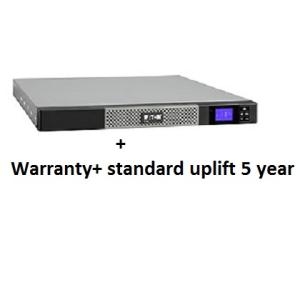

EATON 5P1550IR+ UPS SERVICE (TOTAL 5 YEARS) BUNDLE INCLUDES: ADVANCE REPLACEMENT OF UPS EATON
| SKU: | 200996 |
|---|---|
| MPN: | 5P1550IR-WPS-5YR |
| Manufacturer: | http://www.eaton.com/Eaton/index.htm |
| Brand: | Eaton |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
General
Topology Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration Rack 1U
Part Number 5P1550iR
Rating (VA/Watts) 1550/1100
Dimensions (H x W x D, mm) 43.2 x 438 x 554
Weight (kg) 19.4
Warranty 3 years on electronics, 2 years on batteries
Contents
(Ships with the following items) 5P UPS
Eaton Intelligent Power Software CD
USB cable
Serial cable
Safety guide
Quick start guide
CD with 10-language user manual
Electrical Input
Connection
(1) IEC-320-C14
C14
Input Voltage Without Using Batteries 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries 47 to 70Hz (50 Hz system), 56.5 to
70Hz (60 Hz system), 40Hz in low-sensitivity mode
Electrical Output
Voltages 230 V (+6/-10 %) (Adjustable to 200V / 220V / 230V / 240V)
Output Receptacles
(6) IEC-320-C13
C13
Remotely controlled sockets 2 groups C13 (10 A) output receptacles, grouped 2+1
Output Frequency 50/60 Hz +/- 0.1 % (autosensing)
Battery
Runtime
(Minutes)Load (Watts)Battery runtimes are approximate and may vary with
equipment, configuration, battery age, temperature, etc.
Mouseover graph for detailed runtime values
Battery Management ABM® & temperature compensated charging method (user
selectable), automatic battery test, deep discharge protection
Cold start (No mains power) Yes
Communications
User Interface 3 LEDS + Multilingual LCD : access to measures, alarm messages
and customization
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and
RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote
ON/OFF and Remote Power Off
Communications Card Slots 1 slot for Network-MS card, ModBus-MS or Relay-MS
cards
Environmental & Standards
Audible Noise < 40 dBA
Operating Temperature 0 to 40?C
Safety markings IEC/EN 62040-1
EMC Markings IEC/EN 62040-2 class B (EMC), IEC/EN 62040-3 (performance), C-Tick
Approvals CE, CB report
Quality Designed, manufactured and marketed under ISO9001 & ISO14001 quality
system
Vendor Info
| Marketing Text | This is a Bundle sku and components are: * Eaton 5P 1550i Rack1U * Warranty+ standard uplift 5 year: 5 series Line InteractiveUPS 1.25 - 2kVA The Eaton 5P is a Line interactive, density optimised (up to 1550VA in 1U) power protection for IT & Telecom environment. Wide power management capabilities offering point-to-point and network supervision. |
| PI Date | Apr 2015 |
| Brand Name | Eaton |
| Manufacturer Web Site | http://www.eaton.com |
| Product Type | Uninterruptible Power Supply |
| Input Connection | 1 x IEC-320 C14 |
| Output Connection | 6 x IEC 320 C13 |
| Input Voltage | 160 - 294Volt |
| Output Voltage | 230Volt |
| Power Rating | 1550VA |
| Output Frequency | 50 - 60Hz |
| Waveform | Sinewave |
| Depth (mm) | 554.0 |
| Height (mm) | 43.2 |
| Width (mm) | 438.0 |
| Weight (Kg) | 19.4 |
| Language Support | Multilingual |
| Other Features | * Input frequency Range Without Using Batteries : 47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode * User Interface : 3 LEDS + Multilingual LCD : access to measures, alarm messages and customization |
| Rack Height | 1U |
| Operating Temperature | 0 - 40°C |
