Eaton 5PX3000IRT2UAU + UPS SERVICE (TOTAL 5 YEARS) BUNDLE INCLUDES: ADVANCE REPLACEMENT OF UPS
EATON COVERS ALL LOGISTICS COSTS FOR REPLACEMENT UNITS 5X8 EATON CUSTOMER SERVICE CENTRE ACCESS 5PX3000IRT2UAU-WPS-5YR
$3,411.00
| SKU: | 207083 |
|---|---|
| MPN: | 5PX3000IRT2UAU-WPS-5YR |
| Manufacturer: | http://www.eaton.com/Eaton/index.htm |
| Brand: | Eaton |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼

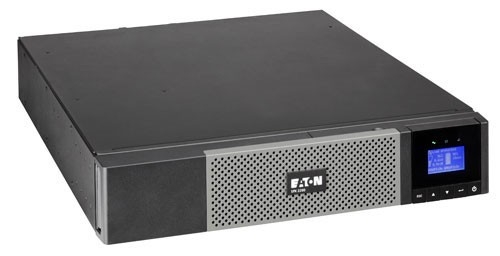

Eaton 5PX UPS
5PX3000IRT2UAU
The Eaton 5PX Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With a next-generation intuitive LCD display, energy consumption metering down to the outlet group level, and up to 99% efficiency, the 5PX is the perfect UPS to protect modern IT equipment.
Eaton 5PX UPS - Features
- Energy consumption metering down to the outlet group level
- Intuitive LCD screen displays all the information you need in one glance
- 5PX can provide up to 99% efficiency, reducing cooling and utility costs
- Delivered with Eatons Intelligent Power Software compatible with all major OS including virtu-alization software
- 0.9 power factor to protect more servers from one UPS
- Protects you with a three-year warranty on electronics (2 years on batteries)
Technical Specifications
| General | |
| Topology | Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) |
| Configuration | Tower/Rack 2U |
| Rating (VA/Watts) | 3000/2700 |
| Dimensions (H x W x D, mm) | 86.2 x 441 x 647 |
| Weight (kg) | 38.08 |
| Warranty | 3 years on electronics, 2 years on batteries |
| Electrical Input | |
| Connection |  (1) C20 |
| Input Voltage Without Using Batteries | 160V-294V (adjustable to 150V-294V) |
| Input frequency Range Without Using Batteries | 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Electrical Output | |
| Voltages | 230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V) |
| Output Receptacles |  (8) C13,  (1) C19 |
| Remotely controlled sockets | 2 groups of 2 x IEC C13 (10 A) |
| Output Frequency | 50/60 Hz +/- 0.1 % (autosensing) |
| Battery | |
| Battery Management | ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Communications | |
| Communication Ports | 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off |
| Communications Card Slots | 1 slot for NMC Minislot card or NMC ModBus/JBus or MC Contacts/Serial |
| Environmental & Standards | |
| Audible Noise | < 50 dBA |
| Operating Temperature | 0 to 40C |
| Performance - Safety - EMC | IEC/EN 62040-1-1 (Safety), IEC/EN 62040-2 (EMC), IEC/EN 62040-3 (Performance), C-Tick |
| Approvals | CE, CB report, TV |
Vendor Info
▼
| Marketing Text | This is a bundle sku and components are : * Eaton 5PX 3000VA2700W 2U Rack Tower UPS * Warranty+ Standard Uplift 5 Year: 5 Series Line Interactive UPS 2.2 - 3kVA The Eaton 5PX Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With a next-generation intuitive LCD display, energy consumption metering down to the outlet group level, and up to 99% efficiency, the 5PX is the perfect UPS to protect modern IT equipment. |
| PI Date | Apr 2015 |
| Brand Name | Eaton |
| Manufacturer Web Site | http://www.eaton.com |
| Product Type | Uninterruptible Power Supply |
| Input Connection | 1 x IEC-320-C20 |
| Input Voltage | 160 - 294Volt |
| Output Voltage | 230Volt |
| Power Rating | 3000VA |
| Output Frequency | 50 - 60Hz |
| Waveform | Sinewave |
| Depth (mm) | 647.0 |
| Height (mm) | 86.2 |
| Width (mm) | 441.0 |
| Weight (Kg) | 38.1 |
| Other Features | * Topology: Line-Interactive High Frequency * Communications Card Slots: 1 slot for NMC Minislot card or NMC ModBus/JBus or MC Contacts/Serial * Remotely controlled sockets 2 groups of 2 x IEC C13 (10 A) |
| Rack Height | 2U |
| Operating Temperature | 0 - 40°C |
| Warranty Information | 3 Year |
