SSG-6029P-E1CR12H

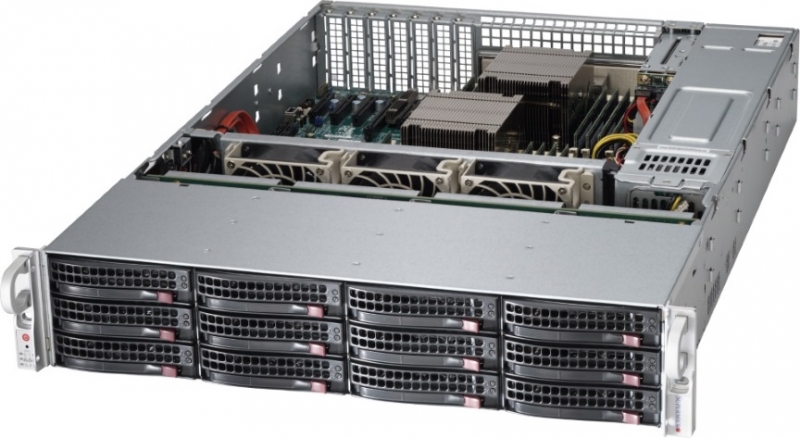

SuperServer 6029P-E1CR12H (Black)

Motherboard


Super X11DPH-T

Processor/Cache

CPU
Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors ,
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores
Up to 28 Cores with Intel® HT Technology

System Memory

Memory Capacity
16 DIMM slots
Up to 2TB 3DS ECC L/RDIMM, up to DDR4-2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset
Intel® C622 chipset
SAS
SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID
RAID 0, 1, 5, 6, 10, 50, 60
SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
ASPEED AST2500 BMC

Input / Output

LAN
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
4 USB 3.0 ports (rear)
1 Type A
Video
1 VGA port
Serial Port / Header
1 Fast UART 16550 port / 1 Header

System BIOS

BIOS Type
256Mb AMI UEFI

Management

Software
Intel® Node Manager
IPMI 2.0
NMI
SPM, SUM
SuperDoctor® 5
Watchdog

PC Health Monitoring

CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors


Chassis

Form Factor
2U Rackmount
Model
CSE-826BE1C4-R1K23LPB

Dimensions

Width
17.2" (437mm)
Height
3.5" (89mm)
Depth
24.8" (630mm)
Gross Weight
61 lbs (27.7 kg)
Available Colors
Black

Front Panel

Buttons
Power On/Off button
System Reset button
LEDs
Power status LED
Hard drive activity LED
Network activity LEDs
System Information LED
Power fail LED

Expansion Slots

PCI-Express
3 PCI-E 3.0 x16 slot
4 PCI-E 3.0 x8 slots
Slot 2 & 3 occupied by controller and JBOD expansion port

Drive Bays

Hot-swap
12 Hot-swap 3.5" SAS3/SATA3 drive bays
Optional
2 Optional Onboard NVMe M.2

Backplane

SAS3 12Gb/s expander storage backplane, w/ 12x SAS3 3.5" drive slots

System Cooling

Fans
3 Hot-swap 8cm redundant PWM cooling fans

Power Supply (76mm Width)

1200W Redundant Power Supplies with PMBus
Total Output Power
1000W/1200W
Dimension
(W x H x L)
76 x 40 x 336 mm
Input
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
200-240Vdc / 8.5-7A (for CCC only)
+12V
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
Max: 4A / Min: 0A
Output Type
19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+
UL/cUL/CB/BSMI/CE/CCC
Titanium Level
[ Test Report ]

Operating Environment

RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
