Lenovo Thinksystem 2.5" S4600 240gb Ms Sata Ssd 7sd7a05723
| SKU: | 265459 |
|---|---|
| MPN: | 7SD7A05723 Link |
| Manufacturer: | https://www.lenovo.com/au/en/ |
| Brand: | Lenovo |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Abstract
The Intel S4600 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
This product guide provides essential presales information to understand the S4600 SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4600 SSDs and consider their use in IT solutions.
Change History
Changes in the December 12 update:
- Updated the ThinkSystem server support table with SR570, SR590, SR860 and SR950 support
Introduction
The Intel S4600 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
The Intel SSD S4600 drives with 3 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases.

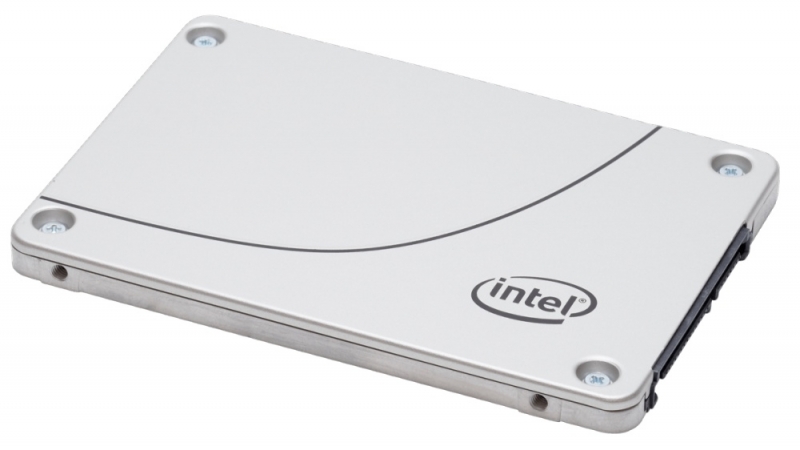

The Intel S4600 Enterprise Mainstream SATA solid-state drive is shown in the following figure.
Figure 1. Intel S4600 Mainstream SATA SSD
Did you know?
By combining the Intel 3D NAND TLC Flash Memory technology and Intel’s latest controller, the design of Intel S4600 Mainstream SATA SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for endurance and IOPS/watt.
Rigorous testing of Intel S4600 Mainstream SATA SSDs by Lenovo through the ServerProven® program ensures a high degree of storage subsystem compatibility and reliability. Providing additional peace of mind, these drives are covered under Lenovo warranty.
Specifications
| Drive Performance | |
|---|---|
| Maximum Read Transfer Rate: | 500 MB/s |
| Maximum Write Transfer Rate: | 260 MB/s |
| General Information | |
|---|---|
| Brand Name: | Lenovo |
| Manufacturer Part Number: | 7SD7A05723 |
| Manufacturer Website Address: | http://www3.lenovo.com/au/en |
| Manufacturer: | Lenovo Group Limited |
| Product Name: | ThinkSystem 2.5" Intel S4600 240GB Mainstream SATA 6Gb Hot Swap SSD |
| Product Type: | Solid State Drive |
| Interfaces/Ports | |
|---|---|
| Drive Interface Standard: | SATA/600 |
| Drive Interface: | SATA |
| Network & Communication | |
|---|---|
| Wireless LAN: | No |
| Physical Characteristics | |
|---|---|
| Depth: | 100 mm |
| Drive Type: | Internal |
| Drive Width: | 2.5" |
| Height: | 7 mm |
| Hot Swappable: | Yes |
| Weight (Approximate): | 63 g |
| Width: | 70 mm |
| Power Description | |
|---|---|
| Operating Power Consumption: | 3.10 W |
| Technical Information | |
|---|---|
| Storage Capacity: | 240 GB |
