Ergotron Workfit Single Hd Monitor Kit 97-906
| SKU: | 230650 |
|---|---|
| MPN: | 97-906 Link |
| Manufacturer: | http://www.ergotron.com/Home/tabid/36/language/en-AU/Default.aspx |
| Brand: | Ergotron |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Description
Upgrade your WorkFit to hold a larger LCD above the desktop. Ergotron 97-906 offers 5" (13 cm) of height adjustment and tilt. Easily lift and tilt the screen to proper height for unsurpassed ergonomic comfort. For use with WorkFit-T and WorkFit-PD products.

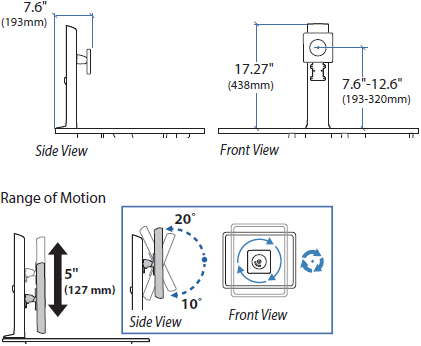

Technical Drawing
Technical Specifications
| | | | | | | |
| LCD Size | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 30" | 16 - 28 lbs 7.3 - 12.7 kg | 5" 13 cm | 30° | - | 90° | MIS-D/E/F |
Product Information
| Part Number | 97-906 (replaces 97-665) |
| Description | WorkFit Single HD Monitor Kit (black) |
| Includes |
|
| Compatible | With WorkFit-T and WorkFit-PD products |
| Weight Capacity | 16 - 28 lbs (7.3 - 12.7 kg). When added to WorkFit-T, overall capacity of the WorkFit-T decreases from 35 lbs (15.9 kg) to 28.4 lbs (12.9 kg) |
| Mounting Patterns | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm hole pattern, the VESA Bracket Adaptor Kit (97-474) can be ordered separately |
| Product Weight | 6.6 lbs (3.6 kg) |
| Shipping Dimensions | 25.2" X 5.0" x 6.9" (64 x 13 x 17 cm) |
| Shipping Weight | 9 lbs (4.1 kg) |
| Warranty | Five (5) years |
Benefits
- Holds display above worksurface, freeing up space
- Cost-effective height-adjustable mounting solution
- Simple installation and effortless operation
- Patented CF motion technology provides premium ease-of-use display adjustment
- Increase viewing comfort by reducing eye, back and neck strain
Specifications
| Model | 97-906 |
| Manufacturer | Ergotron |
| Part Number | 97-906 |
| UPC | 698833048988 |
| Color | Black |
| Monitor Size | Up to 30" |
| Weight Capacity | 16–28 lbs (7.3–12.7 kg) |
| Lift | (13 cm) 5 in |
| Tilt | 30 degree |
| Rotation | 90 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm) |
| Weight | 6.6 lbs (3 kg) |
| Shipping Dimensions | 25.2" X 5.0" x 6.9" (64 x 13 x 17 cm) |
| Shipping Weight | 9 lbs (4.1 kg) |
| Warranty | Five (5) years |
