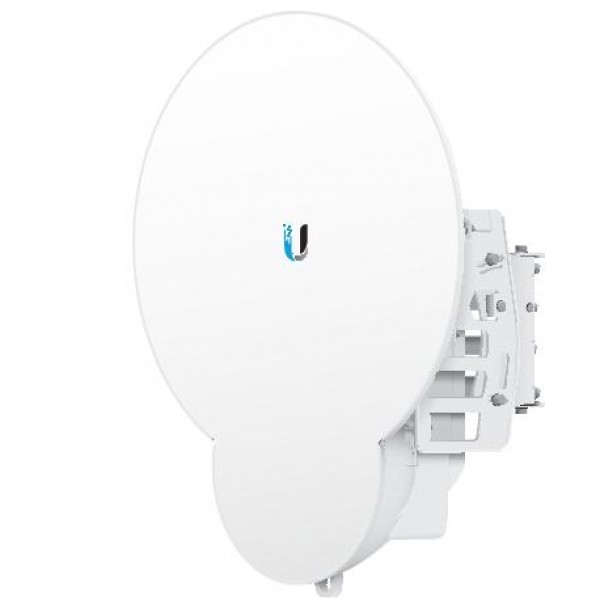

Ubiquiti Airfiber 2gbps+ Backhaul 24ghz Af-24-hd
| SKU: | 232380 |
|---|---|
| MPN: | AF-24HD-AU Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Revolutionary Performance
Featuring the world’s best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
Proven Links: 20+ km
The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range – up to 20+ km – among 24 GHz products and allows for constellation threshold extension.
Low-Latency Carrier Backhaul
The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
24 GHz Unlicensed Band
The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
Specifications
Model Comparison
 AF5 |  AF5U |  AF24 |  AF24HD | |
|---|---|---|---|---|
| Frequency | Mid‑Band 5 GHz | High-Band 5 GHz | 24 GHz | 24 GHz |
| Throughput | 1.2+ Gbps | 1.2+ Gbps | 1.4+ Gbps | 2 Gbps |
| Range | 100+ km | 100+ km | 13+ km | 20+ km |
Vendor Info
Ubiquiti AirFiber, 2Gbps+ Backhaul, 24GHz. The airFiber 24HD offers best-in-class performance and range. Its INVICTUS custom silicon dramatically improves wireless performance. The AF-24HD model supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps. The airFiber AF-24/AF-24HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range among 24 GHz products and allows for constellation threshold extension. Performing as a carrier-class network backhaul, airFiber® delivers robust FDD performance in full-duplex mode with 0.2 microsecond latency
The airFiber 24HD also features robust mechanical assembly. An independent lab has tested the airFiber mechanical assembly to meet MIL-STD-810G, a rigorous United States MIL-STD (Military Standard) that defines a variety of challenging environmental conditions. The mechanical assembly has also undergone vibration testing using an extended version of IEC 60068-2-6, an environmental standard of the IEC (International Electrotechnical Commission).
ACMA EIRP limit at 24 GHz is 100mW (20 dBm)
