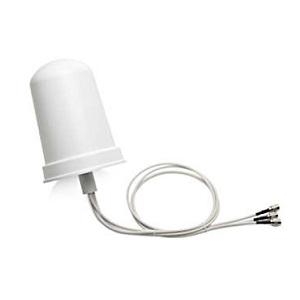

Cisco 2.4 Ghz 4 Dbi 802.11n Omni Wall Mount Antenna In Air-ant2440nv-r=
$417.00
| SKU: | 242499 |
|---|---|
| MPN: | AIR-ANT2440NV-R= Link |
| Manufacturer: | http://www.cisco.com/ |
| Brand: | Cisco |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
An omnidirectional antenna is designed to provide a 360-degree radiation pattern. This type of antenna is used when coverage in all directions from the antenna is required.
Cisco Aironet 2.4-GHz MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2440NV-R)
This document outlines the specifications for the Cisco Aironet 2.4-GHz MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2440NV-R) and provides instructions for mounting it. The antenna operates in the 2.4 GHz frequency range and is designed for indoor or outdoor use.
Specifications
▼
| Basic | |
|---|---|
| Antenna Gain: | 4 dBi |
| Application/Usage: | Wireless Data Network |
| Brand Name: | Cisco |
| Product Family: | Aironet |
| Product Type: | Antenna |
| General Information | |
|---|---|
| Brand Name: | Cisco |
| Manufacturer Part Number: | AIR-ANT2440NV-R= |
| Manufacturer Website Address: | http://www.cisco.com/c/en_au |
| Manufacturer: | Cisco Systems, Inc |
| Product Line: | Aironet |
| Product Model: | AIR-ANT2440NV-R= |
| Product Name: | Aironet AIR-ANT2440NV-R= MIMO Antenna |
| Product Type: | Antenna |
| Interfaces/Ports | |
|---|---|
| Connector Type: | RP-TNC |
| Number of Connectors: | 1 |
| Miscellaneous | |
|---|---|
| Additional Information: |
|
| Application/Usage: | Wireless Data Network |
| Physical Characteristics | |
|---|---|
| Diameter: | 160 mm |
| Height: | 218.4 mm |
| Weight (Approximate): | 603.3 g |
| Technical Information | |
|---|---|
| Antenna Gain: | 4 dBi |
| Directivity: | Omni-directional |
| Frequency Band Type: | UHF |
| Frequency: | 2.40 GHz to 2.48 GHz |
| Polarization: | Linear Vertical |
Vendor Info
▼
| Marketing Text | An omnidirectional antenna is designed to provide a 360-degree radiation pattern. This type of antenna is used when coverage in all directions from the antenna is required. |
| PI Date | Dec 2012 |
| Brand Name | Cisco |
| Manufacturer Web Site | http://www.cisco.com/ |
| Product Type | Antenna |
| Typical Application | Indoor and Outdoor |
| Antenna Type | Omnidirectional Antenna |
| Frequency | 2402 - 2484MHz |
| Gain | 4dBi |
| Polarization | Linear |
| VSWR | 2:1 |
| Horizontal/H-Plane | Omni-directional |
| Vertical/E-Plane | 36degree |
| Cable Length | 0.91meter |
| Cable Type | Plenum Rated |
| Connector | 3 x RP-TNC |
| Connector Gender | Male |
| Height (mm) | 218.0 |
| Other Features | * Omnidirectional, 3 element Wall Mount * Mounting : Wall mount |
