Cisco Aironet 1815w Series With Mobility Express Air-ap1815w-z-k9c
| SKU: | 252694 |
|---|---|
| MPN: | AIR-AP1815W-Z-K9C Link |
| Manufacturer: | https://www.cisco.com/ |
| Brand: | Cisco |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
With a sleek design and small form factor, the Cisco Aironet 1815w Access Point brings a full slate of Cisco high-performance functionality to multiple-dwelling-unit deployments.
Product Overview

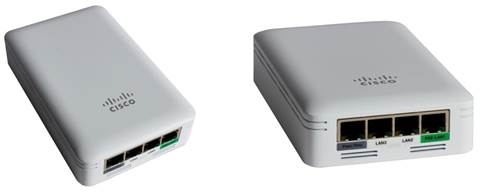

The Cisco® Aironet® 1815w Access Point (Figure 1) offers a compact, wall plate–mountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments.
Packing 802.11ac Wave 2 wireless standards support and Gigabit Ethernet wired connectivity into a sleek device, the 1815w is built to take full advantage of existing cabling infrastructure while blending into the visual footprint. This combination provides best-in-class performance while reducing total cost of ownership.
Features and Benefits
By adhering to the 802.11ac Wave 2 standard, the 1815w provides a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.
In recent years corporate users have increasingly preferred wireless access as their form of network connectivity, due to its convenience. With this shift, there is an expectation that wireless should not slow down users’ day-to-day activities, but should enable a high-performance experience while allowing users to move about freely. The 1815w delivers industry-leading performance with highly secure and reliable wireless connections that provide a robust, mobile end-user experience.
Specifications
| Feature | Benefit |
| MU-MIMO | Multiuser (MU) multiple-input multiple-output (MU-MIMO) allows simultaneous data transmission to multiple 802.11ac Wave 2–capable clients to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This was typically referred to as single-user MIMO (SU-MIMO). |
| Gigabit Ethernet ports | Three local Gigabit Ethernet ports are available to securely connect wired devices to the network. Traffic from wired devices can be tunneled back to a wireless LAN controller (for compatible controllers) or be locally switched by the access point. One of these Ethernet ports can also provide Power over Ethernet (PoE) out to power a device such as an IP phone or a security camera. |
| Cisco Mobility Express solution | Flexible deployment through the Cisco Mobility Express solution is ideal for small to medium-sized deployments that require 50 or fewer access points. Easy setup allows the 1815w to be deployed on networks without a physical controller. |
| Integrated Bluetooth 4.1 | Integrated Bluetooth low-energy (BLE) 4.1 radio for location and asset tracking (future availability). |
| Item | Specification | ||||||||
| Authentication and security | ● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) ● 802.1X, RADIUS authentication, authorization and accounting (AAA) ● 802.11r ● 802.11i | ||||||||
| Software | ● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4 or later ● Cisco Mobility Express | ||||||||
| Maximum clients | ● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point | ||||||||
| 802.11ac | ● 2x2 single-user/multiuser MIMO with two spatial streams ● Maximal ratio combining (MRC) ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic shift diversity (CSD) support | ||||||||
| Ethernet ports | ● Authentication with 802.1X or MAC filtered ● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to wireless LAN controller | ||||||||
| Bluetooth (future Availability) | ● Integrated Bluetooth 4.1 (including BLE) radio ● Maximum transmit power: 4 dBm ● Antenna gain: 2 dBi | ||||||||
