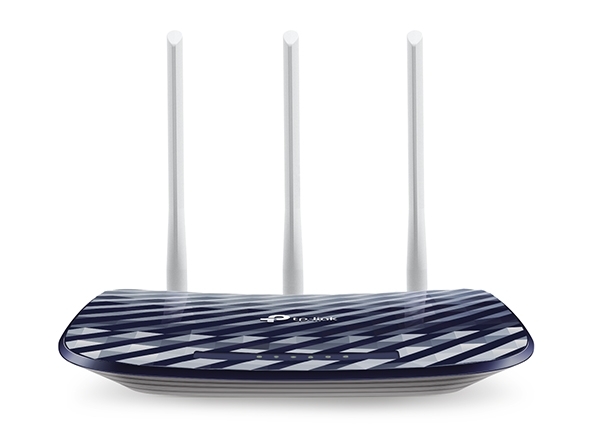

main product photo

TP-Link Router: Ac750 Wireless Dual Band Router (300+433) Mbps 1X 10/ 100 Wan 4X 10/ 100 Lan Archer C20

$52.00
SKU: 276358
MPN: Archer C20 Link
Manufacturer: https://www.tp-link.com
Brand: Tp-link
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare
HARDWARE FEATURES
Interface 4 10/100Mbps LAN ports
1 10/100Mbps WAN port
Button WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
External Power Supply 12VDC /1A
Dimensions ( W x D x H ) 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna 2 × 2.4GHz Antennas
1 × 5GHz Antenna
Antenna Type Three dual band fixed antennas
Compatibility NBN - Fibre to the Premises (FTTP)
NBN - Fibre to the Home (FTTH)

For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 433Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity 5GHz:
11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:
-62dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
Management Access Control
Local Management
Remote Management
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management
Control, Host List,
Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filtering/MAC Address Filtering/Domain Filtering
IP and MAC Address Binding
Protocols Supports IPv4 and IPv6
Guest Network 2.4GHz guest network × 1
5GHz guest network × 1
OTHERS
Certification CE, FCC, RoHS
Package Contents AC750 Wireless Dual Band Router Archer C20
Power Supply Unit
Ethernet Cable
Quick Installation Guide
Box Dimensions (W X D X H) 14 x 8.8 x 2.7 in. (357x223x68mm)
System Requirements Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux
Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browsers
Cable or DSL or Fiber Modem/Terminal
Subscription with an Internet Service Provider (for Internet access)
Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty Limited 3-Year Warranty

For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
