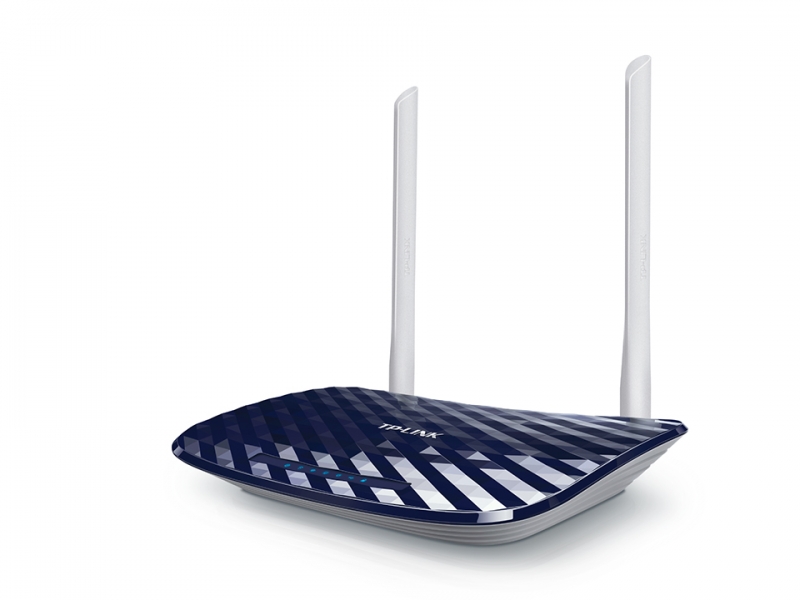

Tp-link Archer C20 Ac750 750mbps Wireless Dual Band Router 2.4ghz 300mbps 5ghz 433mbps 4x Lan 1x

WAN 1x USB 2x Antennas NBN Ready WPS Archer C20
$55.00
SKU: 244634
MPN: Archer C20 Link
Manufacturer: http://www.tp-link.com/
Brand: Tp-link
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare

AC750 Wireless Dual Band RouterArcher C20

  • Supports 802.11ac standard - the next generation of Wi-Fi
  • Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
  • 3 external antennas provide stable omnidirectional signal and superior wireless coverage

AC 750

Wireless Dual Band Router

802.11ac - The Next Generation of Wi-Fi

TP-Link’s Archer C20 comes with the next generation Wi-Fi standard – 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.

  • 802.11ac
  • 5GHz
  • 433Mbps
  • 802.11n
  • 2.4GHz
  • 300Mbps

733Mbps Dual Band
Connections for Lag-Free Work

With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.

  • 5GHz
  • 2.4GHz

Stable Omnidirectional Signal and Superior Coverage

With 3 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.

Easy Setup and Use

Set up the Archer C20 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

HARDWARE FEATURES
Interface 4 10/100Mbps LAN ports
1 10/100Mbps WAN port
　
Button WPS/Wi-Fi Button
Reset Button
Power On/Off Button
　
Antenna 2 × 2.4GHz Antennas
1 × 5GHz Antenna
External Power Supply 9V/0.6A(EU), 9V/0.85A(US)
Dimensions ( W x D x H ) 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 433Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity 5GHz:
11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:
-62dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
　
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
Management Access Control
Local Management
Remote Management
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management
Control, Host List,
Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
　
Protocols Supports IPv4 and IPv6
Guest Network 2.4GHz guest network × 1
5GHz guest network × 1
OTHERS
Certification CE, RoHS
　
Package Contents AC750 Wireless Dual Band Router Archer C20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Box Dimensions (W X D X H) 14 x 8.8 x 2.7 in. (357x223x68mm)
System Requirements Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux
Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browsers
Cable or DSL or Fiber Modem/Terminal
Subscription with an Internet Service Provider (for Internet access)
　
Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TP-Link Archer C20 AC750 750Mbps Wireless Dual Band Router 2.4GHz 300Mbps 5GHz 433Mbps 4xLAN 1xWAN 1xUSB 2xAntennas NBN Ready WPS

Supports 802.11ac standard - the next generation of Wi-Fi
Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
2 external antennas provide stable omnidirectional signal and superior wireless coverage
USB port - share a printer locally and files & media with networked devices or remotely via FTP server

HARDWARE FEATURES
Interface 4 10/100Mbps LAN ports
1 10/100Mbps WAN port
1 USB 2.0 port
Button WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
Antenna 2 × 2.4GHz Antennas
1 × 5GHz Antenna
External Power Supply 12VDC /1A
Dimensions ( W x D x H ) 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna Type Two dual band fixed antennas
Compatibility NBN - Fibre to the Premises (FTTP)
NBN - Fibre to the Home (FTTH)

For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 433Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity 5GHz
11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm
11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm,
11n HT20: -71dBm, 11n HT40: -69dBm
2.4GHz
11g 54M: -76dBm
11n HT20: -74dBm, 11n HT40: -71dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
