Avgear Hdbt/ Hdmi 4 X 4 Matrix Switch (AVG.CS4K44.V3)
$2,059.00
| SKU: | 293314 |
|---|---|
| MPN: | AVG.CS4K44.V3 |
| Manufacturer: | http://avgear.com.au/ |
| Brand: | AVGEAR |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
DETAILS

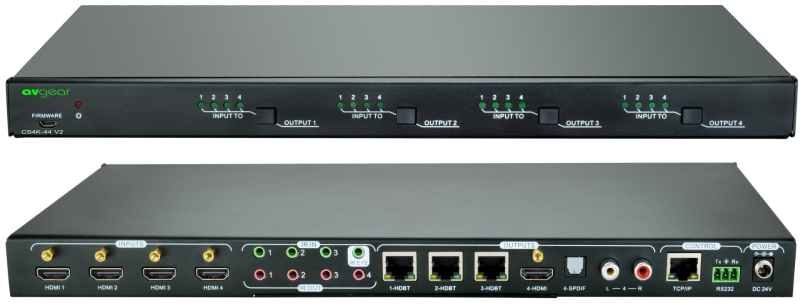

AVGEAR | AVG-CS4K-44-V3 | HDBT/HDMI 4 X 4 MATRIX SWITCH
This 4K 4×4 HDBaseT Matrix with 3 Receivers. It features 4 HDMI inputs, 1 HDMI output with audio breakout and 3 HDBaseT outputs. The de-embedded audio can be output from SPDIF and L/R connector.
FEATURES
- Supports HDMI resolutions up to 4K@60Hz 4:4:4, including 1080P 3D video
- Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications
- Can transmit 4K signals to distances up to 131 feet (40 meters) and 1080P signals to distances up to 229 feet (70 meters) over a single CATx cable.
- Features three HDBaseT outputs and includes three receivers.
- Supports the 24V PoC feature, allowing the receivers to draw their power from the matrix over the CATx cable.
- Includes a local HDMI output with corresponding digital optical S/PDIF and stereo L/R analog outputs.
- Smart EDID management for various applications and customised settings.
- Controllable via RS232, IR and TCP/IP.
Specifications
▼
| Input | 4 HDMI |
| Video-Input Connector | Female HDMI |
| Video-Input Resolution | Up to 4Kx2K@60Hz 4:4:4 |
| Video Output | 3 HDBaseT, 1 HDMI |
| Video Output Connector | 3 RJ45, 1 Type-A female HDMI |
| Video Output Resolution | HDBaseT: Up to 4Kx2K@60Hz 4:4:4 |
| HDMI Version | Up to 2.0 |
| HDCP Version | Up to 2.2 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, and DTS-HD Master Audio pass-through |
| Audio | |
| Audio Output | 1 SPDIF, 1 L/R |
| Audio Output Connected | 1 Toslink connector, 1 5pin phoenix plug |
| Frequency Response | 20Hz - 20KHz, ±3dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V - 16dB Headroom above - 10dBV (316mV) nominal consumer line level signal |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | 1> 80dB, 20Hz – 20KHz bandwidth |
| Crosstalk Isolation | > 70dB, 10KHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) |
| Frequency Response Deviation | < ± 0.5dB 20Hz – 20KHz |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) |
| Stereo Channel Separation | >70dB@1KHz |
| Control | |
| Control Port | 1 firmware, 3 IR in,1 IR rec, 4 IR out, 1 TCP/IP, 1 RS232. 1 EDID |
| Control Connector |
1 Micro-USB, 8 3.5mm jacks, 1 RJ45, 1 3-pin terminal block,1 4-pin DIP switch |
| General | |
| Transmission Standard | HDBaseT |
| Transmission Distance |
1080P@60Hz ≤ 230 feet (70
meters), 4K@60Hz ≤ 131 feet (40 meters) |
| Operation Temperature | -5 ~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | Input: AC100~240V, 50/60Hz; Output: 24V DC 2.71A |
| Maximum Power Consumption | 58watts |
| Dimension (W x H x D) | 436.4mm x 44.0mm x 236.5 mm |
| Net weight | 1.9Kg |
HDBaseT Receiver
| Receiver | |
| Input | 1 HDBT |
| Input Connector | 1 RJ45 |
| Output | 1 HDMI |
| Output Connector | 1 Female type-A HDMI |
| Control | 1 IR in, 1 IR out, 1 RS232 |
| Control Connector | 2 3.5mm jack, 1 3-pin terminal block |
| General | |
| Maximum Video Resolution | 4K×2K@60Hz 4:2:0, including 1080p@60Hz |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080p signal to 70m, 4K signal to 40m |
| Bandwidth | 18Gbps |
| HDMI Version | Up to 2.2 |
| Power Consumption | 14 watts Max |
| Operating Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -25 ~5℃ |
| Relative Humidity | 10% ~ 90% |
| Power Supply |
Output Power: 12VDC 2A, Input Power: 100~240VAC, 50/60Hz |
| Dimension (W x H x D) | 115mm x 16mm x 84mm |
| Net Weight (g) | 153g |
Vendor Info
▼
AVGear | AVG-CS4K-44-V3 | HDBT/HDMI 4 x 4 Matrix Switch This 4K 4Ã4 HDBaseT Matrix with 3 Receivers. It features 4 HDMI inputs, 1 HDMI output with audio breakout and 3 HDBaseT outputs. The de-embedded audio can be output from SPDIF and L/R connector. Features Supports HDMI resolutions up to 4K@60Hz 4:4:4, including 1080P 3D video Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications Can transmit 4K signals to distances up to 131 feet (40 meters) and 1080P signals to distances up to 229 feet (70 meters) over a single CATx cable. Features three HDBaseT outputs and includes three receivers. Supports the 24V PoC feature, allowing the receivers to draw their power from the matrix over the CATx cable. Includes a local HDMI output with corresponding digital optical S/PDIF and stereo L/R analog outputs. Smart EDID management for various applications and customised settings. Controllable via RS232, IR and TCP/IP. Warranty 1-year limited warranty. Why 4Cabling? Australiaâs leading importer & wholesaler of 19â server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning-fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
