SPECIFICATIONS

Video Input
Input	1 HDMI
Input Connector	1 female type A HDMI 2.0
Video Output
Output	2 HDMI
Output Connector	2 female type A HDMI 2.0
Video General
Max data rate	18 Gbit/s
Max Resolution	4Kx2K@60Hz 4:4:4
HDCP	Compliant with HDCP2.2 and is backwards compatible with HDCP1.4
EDID	In-built EDID management
General
Temperature	0 ~ 55℃
Reference Humidity	10% ~ 90%
Power Consumption	4.5 W (Max)
Power Supply	Input: 100V – 240V AC Output: DC 5V 2A
Weight	97g
Dimensions (W*H*D)	102 x 11 x 70mm

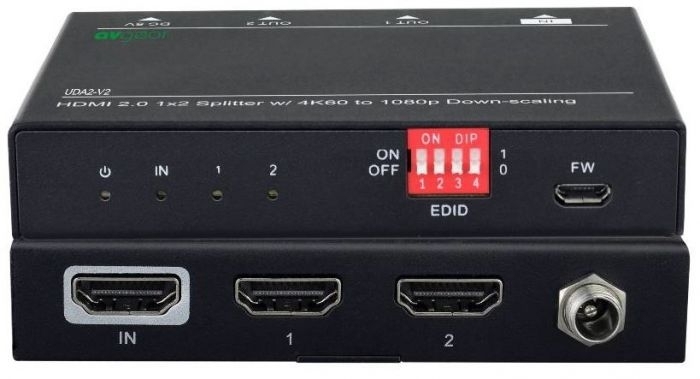

AVGear | AVG-UDA2-V2 | HDMI2.0 2 WAY SPLITTER The AVG-UDA2-V2 is a 4K HDMI splitter with the ability to transmit an HDMI or DVI source to 2 displays simultaneously. Compliant with HDMI2.0 & HDCP2.2, the AVG-UDA2-V2 provides comprehensive resolution capacities up to 4K, 1080p & 3D. Features 2 simultaneous HDMI outputs HDMI2.0 & HDCP2.2 compliant, and backwards compatible with previous versions Transmits 4Kx2K HDMI up to 10m Max. Resolution 4Kx2K@60Hz 4:4:4 High bandwidth: 18Gbps HDCP compliant Auto-identify input resolution Supports EDID management, automatically adopts the resolution of the first connected display Intuitive indicator for connection status & input HDCP compliance status Easy firmware update 1-year limited warranty. Why 4Cabling? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning-fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
