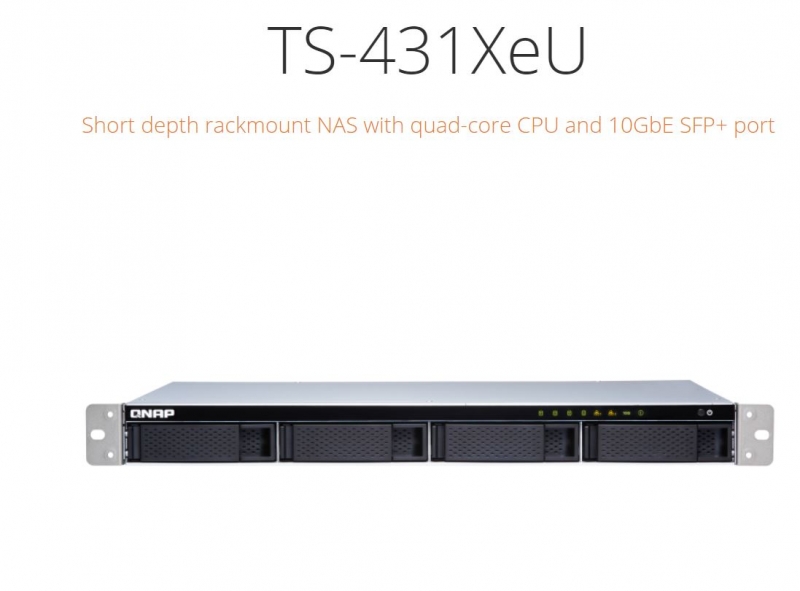

Qnap Ts-431Xeu-2G Nas 4Bay (No Disk) Al-314 2Gb Usb Gbe(2) 10Gbe Sfp+(1) 1U 3 Years Warranty Ts-431Xeu-2G
| SKU: | 279059 |
|---|---|
| MPN: | TS-431XeU-2G Link |
| Manufacturer: | https://www.qnap.com |
| Brand: | Qnap |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Processor AnnapurnaLabs, an Amazon company, Alpine AL-314 Quad-Core 1.7 GHz
Hardware Encryption Accleration
Yes
System Memory 1 x 2GB SO DIMM DDR3-1600
Maximum Memory 1 x 8GB SO DIMM DDR3-1600
Memory Slots 1
Hard Drive Tray 4
Drive Interface SATA 6 Gb/s, HDD or SSD
Drive Type 3.5-inch or 2.5-inch
10GbE LAN 1 x 10 Gigabit SFP+ port
GbE LAN 2 x Gigabit RJ45 LAN port
USB 4 x USB 3.0
Storage expansion
1x UX-800U-RP and 1x UX-1200U-RP
2x UX-800U-RP
1x UX-800U-RP or UX-1200U-RP
Up to 24 drives are supported.
Fan 3 x 4 cm system fan (12V DC)
Power Supply 100W, 100-240V AC, 50/60Hz, open frame
LED Indicators HDD1, HDD2, HDD3, HDD4, LAN1, LAN2, 10GbE, STATUS
Buttons Power, Reset
Other I/O Kensington security slot, console port
System Warning Buzzer
Form Factor 1U
Dimension (H x W x D) 44 x 439 x 291 mm
Weight 4.15 kg (net); 5.78 kg (gross)
Operating Temperature 0 to 40 degree of Celsius
Relative Humidity 5 to 95 % non-condensing, wet bulb: 27 degree of Celsius
Noise Level; Sound Level (dB)* 20.3
Power Consumption HDD standby: 12.42
In operation: 30.99
(With 4 x2TB HDDs installed)
Specifications
| CPU | AnnapurnaLabs Alpine AL-314 32-bit ARM® Cortex-A15 quad-core 1.7GHz processor |
| CPU Architecture | 32-bit ARM |
| Floating Point Unit | |
| Encryption Engine | |
| System Memory | 2 GB SODIMM DDR3 (1 x 2 GB) |
| Maximum Memory | 8 GB (1 x 8 GB) |
| Memory Slot | 1 x SO-DIMM DDR3 |
| Flash Memory | 512MB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit/ 5 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
| Jumbo Frame | |
| USB 3.0 port | 4 |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-4, Status, USB, LAN1-3 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 44 × 439 × 291 mm |
| Weight (Net) | 4.15 kg |
| Weight (Gross) | 5.78 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Open-frame 100W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz |
| Power Consumption: HDD Sleep Mode | 12.42 W |
| Power Consumption: Operating Mode, Typical |
30.99 W
With drives fully populated
|
| Fan | 3 x 4 cm system fan (12V DC) |
| Sound Level | 20.3 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot |
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
