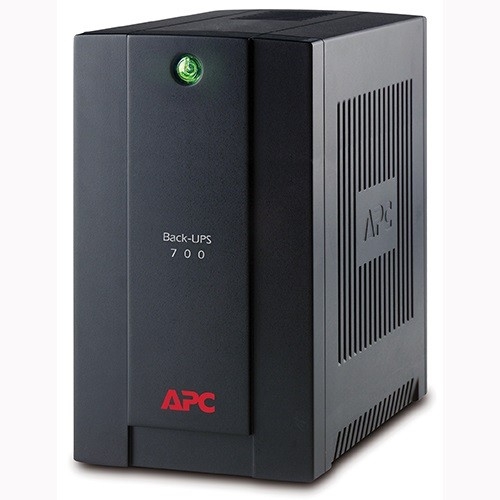

BX700U-AZ Features
Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes.
USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port.
Telephone dataline surge protection Provides protection of connected equipment from power surges traveling on telephone lines.
Automatic Voltage Regulation (AVR) Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
LED Indicators Provide easy-to-read status of the unit and utility power conditions.
Audible alarms Provides notification of changing utility power and UPS power conditions
Back-UPS Features & Benefits
Protection
Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes.
Surge only outlets Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Availability
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Serviceability
Resettable circuit breaker Easy recovery from overloads; no need to replace a fuse.
Manageability
Audible alarms Provides notification of changing utility power and UPS power conditions
LED status display Quickly understand unit and power status with visual indicators.
Safety
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Output
Output Power Capacity 390 Watts / 700 VA
Max Configurable Power 390 Watts / 700 VA
Nominal Output Voltage 230V
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Topology Line Interactive
Waveform Type Stepped approximation to a sinewave
Output Connections
(3) Australian (Battery Backup)
Input
Nominal Input Voltage 230V
Input Frequency 50 Hz +/- 3 Hz
Input Connections
Australian/Chinese
Cord Length 4 feet (1.22 meters)
Input voltage range for main operations 140 - 300V
Input Breaker Capacity 7 A
Type of Input Protection Required 3-pole breaker
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 6 hour(s)
Replacement Battery
(Service center technician only) APCRBC110
Energy Use/Efficiency
Load Efficiency
25% 87.8%
50% 93.2%
75% 95.1%
100% 95.9%

Hover over the line on the graph above to view the efficiency at any desired load
Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
View Enlarged Graph
Communications & Management
Interface Port(s) USB
Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating 273 Joules
Data Line Protection RJ-11 Modem/Fax protection
Physical
Maximum Height 7.87 inches (200 mm)
Maximum Width 4.53 inches (115 mm)
Maximum Depth 10.08 inches (256 mm)
Net Weight 13.23 lbs. (6.00 kg)
Shipping Weight 14.11 lbs. (6.40 kg)
Shipping Height 10.83 inches (275 mm)
Shipping Width 11.61 inches (295 mm)
Shipping Depth 13.39 inches (340 mm)
Master Carton Units 2.00
Master Carton Weight 28.44 lbs. (12.90 kg)
Color Black
Environmental
Operating Environment 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 - 104 °F (-15 - 40 °C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-30000 feet (0-9000 meters)
Audible noise at 1 meter from surface of unit 45.00 dBA
Conformance
Approvals RCM, TelePermit
Standard warranty 2 years repair or replace
Sustainable Offer Status
RoHS Compliant
REACH REACH: Contains No SVHCs
