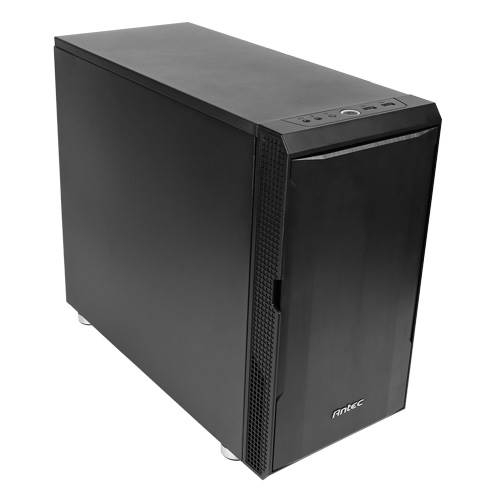

main product photo

Antec P5 Micro Atx Case Sound Dampening. 5.25" X 1 3.5” Hdd X 2 / 2.5” Ssd X 2 P5

$89.00
SKU: 266868
MPN: P5 Link
Manufacturer: https://antec.com/
Brand: Antec
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare
P5
Ultimate Silent
Micro-ATX case
ABOUT

The P5 micro-ATX case is engineered to ensure an easy building experience - capable of supporting your high end PC components and your ideal hardware configurations without breaking the bank.

Front panel with a brushed metallic effect

NET WEIGHT: 6.5kgs
GROSS WEIGHT: 7.2kgs

The hinged front panel and side panels are lined with advanced, sound-absorbing bitumen and noise-insulating foam, so performance and silence are in perfect balance.

I/O Ports
Flexible Interior Layout
A
Motherboard Support: Micro-ATX, ITX
B
Maximum CPU Height: 155 mm
C
Supports VGA Cards up to: 360 mm
D
Ample Routing Holes for Cable Management
E
Max PSU Length: 200 mm
F
Front Radiator Space ≤ 70mm Thickness with Fan
Cooling Options
Functional Design Features
SPECIFICATIONS
Case Specification
Dimensions 475 x 195 x 395mm (DxWxH)
Form Factor Mini Tower
Materials Steel + Plastic
Mainboard Support Micro-ATX, ITX
I/O Ports USB3.0 x 2, MIC/AUDIO(HD), Power, Reset
Side Panel Sound Dampening Panel
Expansion & Drive Bays
Expansion Slots 4
5.25" 1
3.5" / 2.5" (convertible) 2
2.5" 4
Fan Support
Front 2 x 120mm or 1 x 140mm
Rear 1 x 120mm
Included Fan(s) 1 x 140mm Fan in Front & 1 x 120mm Fan in Rear
Radiator Support
Front ≤ 240mm (up to 70mm Thickness with Fan)
Rear ≤ 120mm
Clearance
Max GPU Length ≤ 360mm
Max CPU Cooler Height ≤ 155mm
Max PSU Length ≤ 200mm
Miscellaneous
Dust Filters Front / Bottom
Net Weight 6.5Kgs
Gross Weight 7.2Kgs
Warranty 2 years
UPC# 0-761345-80012-9
The P5 micro-ATX case is engineered to ensure an easy building experience--capable of supporting your high end PC components and your ideal hardware configurations without breaking the bank.

Flexible interior layout:
5.25” ODD x 1
3.5” HDD x 2 / 2.5” SSD x 2
2.5” SSD x 4

Motherboard Support: Micro-ATX, ITX, Mini-ITX
Supports VGA cards up to: 360 mm
Maximum CPU height: 155 mm
Max PSU length: 200 mm
Ample routing holes for cable management
Front Radiator Space ≤ 70mm thickness with fan

Cooling system :
Front: 2 x 120mm or 1 x 140mm / Up to 240mm radiator (Max thickness with fan: 70mm)
Rear: 1 x 120mm / Up to 120mm radiator
Included Fans: 1 x 140mm in front & 1 x 120mm in rear

*Includes a 1-to-3 fan splitter cable
Connect three fans through a single fan header, for a simplified building experience
