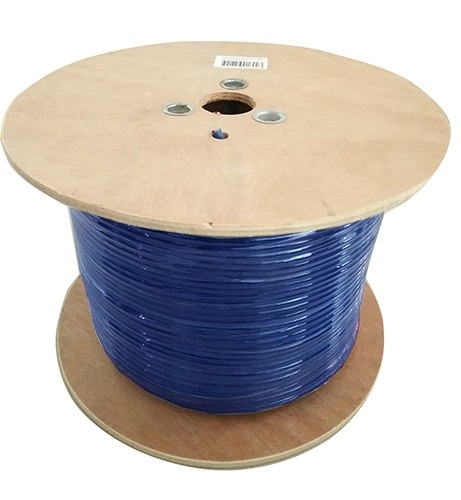

CAT6A cables support networking at gigabit speeds and are backwards compatible with CAT5E cables. Colour coded blue for immediate and easy identification.

Item A
Conductor Construction(mm) :1/0.508±0.005
Material :Bare Copper
Cabling OD (mm) :0.508
Insulation Material :HDPE
OD(mm) :0.90±0.05
Avg. Thickness (mm) :0.18
Color :1、2、3、4
Cores Twisted :Yes
Drain Construction(mm) -----
Material -----
Al Constructive Side -----
Overlap Rate -----
Mylar Overlap Rate -----
Assemble Cabling OD (mm) 5.00 (Ref.) + Filler
Mylar Overlap Rate -----
Al Constructive Side -----
Drain Construction(mm) -----
Material -----
Braid Construction(mm) -----
Material -----
Coverage -----
Jacket Material :PVC (Bright)
OD(mm): 6.20±0.20
Avg. Thickness (mm): 0.6
Color:BLUE (PVC001-6027)PT287C
Jet Print Color: BLACK

Electrical Characters:
1. Voltage Rating: 30V Temperature Rating: 60℃
2. Dielectric Strength: AC-500V/MIN
3. Insulation resistance: 100M (OHMS * KM MIN at 20℃）

Physical Characters:
Test Object Jacket
