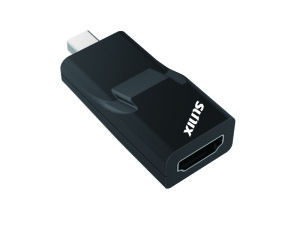

Sunix Dp1.2 To Hdmi1.4b Mini Displayport To Hdmi Dongle D2h23n0
$23.00
| SKU: | 269672 |
|---|---|
| MPN: | D2H23N0 Link |
| Manufacturer: | http://www.sunixusa.com/ |
| Brand: | Sunix |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
SUNIX D2H23N0 Mini DisplayPort to HDMI dongle offers a cost-effective HDMI/Mini DisplayPort link, letting you connect an HDMI display to a device with a Mini DisplayPort output while saving the expense of upgrading the monitor for compatibility. With portable pocket size and DisplayPort bus power source, it supports PC resolutions of up to 4K Ultra HD and HDTV up to 2160p. This high-resolution adapter offers plug and play functionality to provide an audio and video conversion without software or drivers.
- Connect a HDMI-capable display to a Mini DisplayPort-equipped PC or Mac® computer.
- Converts audio and video to any device display enabled with HDMI® technology.
- DisplayPort 1.2 Dual Mode v1.1 Type 1 SPEC.
- Compliant with HDMI 1.4b specification with 4K Ultra HD (2160p) resolution and stereoscopic 3D.
- Plug and play, no software to install or external power needed.
- Certified by CE, FCC, VCCI, BSMI and, RoHS.
*Display 4K resolution conditions:
-Please make sure your display and graphics card support 4K resolution.
-Please make sure your DisplayPort is compliant with DisplayPort 1.2 Dual Mode v1.1 Type 1 SPEC.
(DisplayPort v1.1 Type 2 support 1080p full HD resolution only)
Specifications
▼
| Model | D2H23N0 | |
| Description | Mini DisplayPort to HDMI Dongle | |
| Input Interface | DisplayPort 1.2 Dual Mode / 1.1 Type 1 Mini DisplayPort Male | |
| Output Interface | HDMI 1.4b Standard HDMI Female | |
| Display Resolution | VGA | 640×480 |
| SVGA | 800×600 | |
| XGA | 1024×768 | |
| 720p | 1280×720 | |
| WXGA+ | 1280×768 | |
| WXGA | 1280×800 | |
| SXGA | 1280×1024 | |
| WXGA+ | 1366×768 | |
| SXGA+ | 1400×1050 | |
| UXGA | 1600×1200 | |
| WSXGA+ | 1680×1050 | |
| 1080p | 1920×1080 | |
| WUXGA | 1920×1200 | |
| QXGA | 2048×1152 | |
| WQXGA | 2560×1600 | |
| 2160p | 3840×2160 | |
| Audio | Yes (audio pass-through) | |
| Housing | ABS | |
| Power | DisplayPort Bus power 250mW @ 3.3VDC | |
Environment | Operation temp. 0 °C ～ 40 °C (32-104°F) Operation humidity: < 85% non-condensing Storage temp. -10 °C ～ 85 °C (14~176°F) | |
| Dimension | 53.55L x 22W x 13.2H mm | |
| Weight | 15g (0.5oz) | |
| Compliance | EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3 US: FCC Part 15 Class B TAIWAN: BSMI: CNS13438 JAPAN: VCCI | |
