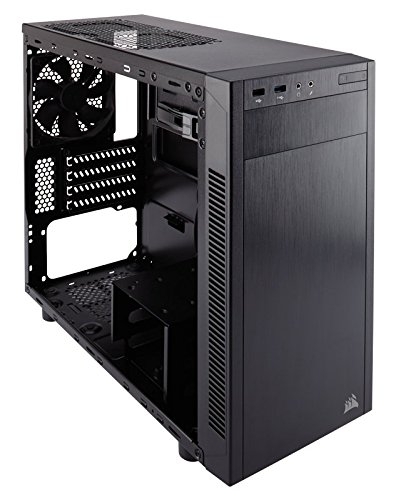

Corsair 88r Mid-tower Atx Case Usb3.0+ 2.0 1x12cm Fan Matx Cc-9011086-ww(88r)

Special Price $105.00 Regular Price $121.00
SKU: 219017
MPN: CC-9011086-WW Link
Manufacturer: http://www.corsair.com/en-au
Brand: Corsair
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate

Compact, Elegant, and Easy to Build

The Carbide Series 88R microATX mid tower has all the modern features you need, with SSD compatibility, USB 3.0, and room for full sized graphics cards and power supplies. Room for five 120mm fans offers you excellent cooling potential and the clean, modern design and large window make the case as beautiful as it is functional.

The 88R also fits up to a 240mm front panel radiator if you're upgrading to liquid cooling, and the various tool free drive and cable routing options means your build will be fast and easy.


Elegant, modern design

The 88R is both professional enough for the office, and customizable enough for any home PC build.




Front support for 240mm radiators

The front-mounted 240mm dual radiator mount makes it easier to upgrade your CPU or GPU to liquid cooling.




USB 3.0 front panel port

It's easy to connect modern high-speed peripherals.




Tool-free 3.5" and 5.25" drive installation with easy SSD support

Installing or upgrading your storage no longer has to start with finding your screwdriver. And since the 88R has built-in mounts for high-performance 2.5" SSD drives, no separate adapter is necessary.




Direct airflow to the top GPU

The smart design channels air directly to your graphics card to provide it with the cooling it needs for intense gaming.



Up To five fan mounts, and one included 120mm fan

A 120mm fan gets your cooling off the ground, and extra mounts provide added expandability.


Thumbscrew side panels

Access your system's components with the twist of your fingers.




Flush-mounted side panel window

If you take pride in your work, you can show it off.


Cable routing channels and holes

Builds are further simplified and aesthetics improved with easy cable organization.


Modern internal layout

The modernized interior makes building your dream PC easier while improving overall performance.










Warranty
Two years
Weight
4.8kg
Case Form Factor
Mid-Tower
Dimensions
448mm x 198mm x 378mm
Case Motherboard Support
Mini-ITX, MicroATX
Maximum GPU Length
383mm
Maximum CPU Cooler Height
150mm
Maximum PSU Length
160mm
Case Expansion Slots
4
Case Drive Bays
(x1) 5.25in
(x2) 3.5in
(x2) 2.5in
Case Material
Steel
Case Power Supply
ATX (not included)
External Connections
(x1) USB 3.0
(x1) USB 2.0
(x1) Headphone Port
(x1) Microphone Port
Fan Mount Locations
Front: (x2) 120mm
Top: (x2) 120mm
Rear: (x1) 120mm
Fans Included
Rear: (x1) 120mm
Radiator Mount Locations
Front: 120/240mm
Rear: 120mm
Compatible Corsair Liquid Coolers
H55, H60, H75, H80i, H100i, H105


















Contents and Specifications

Package contents

  • Carbide Series 88R MicroATX Mid-Tower Case
  • Accessory kit
  • Warranty and Support Information

Compatibility

  • MicroATX and Mini-ATX motherboards


Technical specifications

  • Front support for 240mm radiators: Upgrade your CPU or GPU to liquid cooling with support for a 240mm front radiator
  • USB 3.0 Compatible: USB 3.0 front panel port for modern high-speed peripherals
  • SSD Support: Built-in mounts for high-performance 2.5" SSD drives
  • Direct Airflow to Top GPU: Direct airflow gives your GPU added cooling for intense gaming sessions
  • Up To Five Fan Mounts and One Included 120mm Fan: A 120mm fan gets your cooling off the ground, and extra mounts provide added expandability



  • Tool-free 3.5" and 5.25" Drive Installation: Builds are made easier with tool-free drive installation
  • Thumbscrew Side Panels: No tools are needed to easily access the inside of your case
  • Flush-Mounted Side Panel Window: The side panel window showcases your PC's components
  • Cable Routing Channels and Holes: Builds are further simplified and aesthetics improved with easy cable organization
  • Modern Internal Layout: The interior makes building your dream PC easier and improves overall performance
