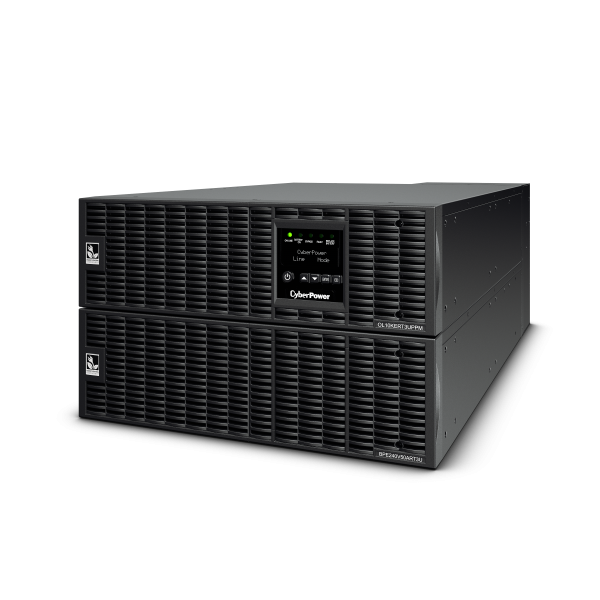

main product photo

Cyberpower Online Series 10000Va/ 10000W Rack/ Tower Online Ups - OL10000ERT3UP

2 Yrs Adv. Replacement Warranty Incl. Int. Battery (Ol10000Ert3Up) Ol10000Ert3Up
$8,018.00
SKU: 276535
MPN: OL10000ERT3UP Link
Manufacturer: https://www.cyberpower.com
Brand: Cyberpower
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
Untitled 1

CyberPower OL10000ERT3UP guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output with additional ECO Mode to conserve power and save on energy costs. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and Emergency Power Off (EPO) switch to allow users to shut off UPS immediately during emergency. To extend battery lifetime, the UPS adopts Smart Battery Management (SBM) to enhance battery charging process and achieve a lower total cost of ownership. This model also features detachable LCD display panel to relocate the panel for convenient monitoring, and RJ11/RJ45 port to provide data line protection against surge and spike. The PowerPanel® Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

FEATURES

  • Online (Double Conversion) UPS Topology
  • ECO Mode
  • Generator Compatible
  • Backfeed Protection Connector
  • Overload Protection
  • Maintenance Bypass Switch
  • Critical/Non-critical Load Outlets
  • Zero Transfer Time
  • Smart Battery Management (SBM)
  • Hot-swappable Batteries
  • Extended Battery Module (EBM)
  • Surge and Spike Protection
  • EMI and RFI Filtration
  • Phone/Fax/Modem/DSL/Network Protection
  • LCD Status Display
  • Detachable LCD Panel
  • Emergency Power Off (EPO) Port
  • PowerPanel® Management Software
  • SNMP/HTTP Remote Management Capability (Optional)
  • Rack/Tower Convertible Configurations
Untitled 1

GENERAL

Phase
Single Phase
UPS Topology
Online Double Conversion
Energy Saving Technology
Online ECO Mode Efficiency > 97%
Active PFC Compatibility
Yes

INPUT

Generator Compatibility
Yes
Nominal Input Voltage ( Vac )
200
208
220
230
240
Input Voltage Range ( Vac )
180 ~ 280
Adjustable Voltage Range ( Vac )
0~25% Load for 120 ~ 139 Vac
0~50% Load for 140 ~ 159 Vac
0~75% Load for 160 ~ 179 Vac
0~100% Load for 180 ~ 280 Vac
Input Frequency ( Hz )
50 ± 10
60 ± 10
Input Frequency Detection
Auto-sensing
Rated Input Current ( A )
52
Input Power Factor
0.99
Backfeed Protection Connector
Yes
Input Connector Type
Hardwire Terminal Block
Detachable Power Cord Plug Type
Hardwire Terminal Block

OUTPUT

Capacity (VA)
10000
Capacity (Watts)
10000
On Battery Waveform
Pure Sine Wave
On Battery Voltage(s) ( Vac )
200 ± 2%
208 ± 2%
220 ± 2%
230 ± 2%
240 ± 2%
Output Voltage Setting
Configurable
On Battery Frequency ( Hz )
50 ± 0.5%
60 ± 0.5%
Output Frequency Setting
Configurable
Power Factor
1
ECO Mode Voltage Tolerance
± 10 %
± 15 %
Overload Protection
Internal Current Limiting , Circuit Breaker
Overload Protection (Line Mode)
105~125% Load for 1 min, 125~150% Load for 10 sec
Overload Protection (Battery Mode)
105~130% Load for 10 sec, 130~150% Load for 2 sec
Overload Protection (Bypass Mode)
Circuit Breaker
Crest Factor
3 : 1
Harmonic Distortion (Linear Load)
THD＜3%
Harmonic Distortion (Non-linear Load)
THD＜5%
Internal Bypass
Automatic Bypass , Manual Bypass
Maintenance Bypass
Yes
Outlet(s) - Total
11
Outlet Type
IEC C13 x 8 　
IEC C19 x 2 　
Hardwire Terminal Block x 1
Outlet(s) - Battery & Surge Protected
11
Outlet(s) - Critical Load (CL)
6
Outlet(s) - Non-Critical Load (NCL)
5
Typical Transfer Time ( ms )
0

BATTERY

Runtime at Half Load ( min )
11
Runtime at Full Load ( min )
4
Typical Recharge Time ( Hours )
5
Start On Battery
Yes
Smart Battery Management (SBM)
Yes
User-replaceable
No
Hot-swappable
Yes
Battery Type
Sealed Lead-acid
Battery Cartridge
RBP0072
RBP Quantity ( pcs )
2
Battery Quantity (Each RBP) ( pcs )
10
Battery Voltage (Each RBP) ( V )
120
Single Battery Capacity ( AH )
12 V 9 AH
Extended Battery Module (EBM)
BPE240V50ART3U (Built-in Charger)
Max. EBM Quantity ( pcs )
10

SURGE PROTECTION & FILTERING

Surge Suppression ( Joules )
2430
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out

MANAGEMENT & COMMUNICATIONS

LCD Panel
Yes
Detachable LCD Panel
Yes
LCD Orientation
Rotatable LCD panel
LCD Information Display
Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log
LCD Setting & Control
Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning , Communication , Event & Log , Security Setting , Language
LED Indicators
Power On , Line Mode , Battery Mode , Bypass Mode , Battery Capacity , Low Battery , Overload , UPS Fault , Wiring Fault , Replace Battery , ECO On/Off
HID Compliant USB Port(s)
1
Serial Port
Combo (RS232 + Dry Contact)
Dry Contact (with Relay)
Yes
Emergency Power Off (EPO) Port
Yes
GENERALUPS Topology: Online Double ConversionEnergy Saving Technology: Online ECO Mode Efficiency > 95%Active PFC Compatibility: YesINPUTGenerator Compatibility: YesNominal Input Voltage (Vac): 200/208/220/230/240 Input Voltage Range (Vac): 180 ~ 280Input Frequency (Hz): 50 ± 10 60 ± 10Input Frequency Detection: Auto-sensingRated Input Current (A): 50Input Power Factor: 1.0Backfeed Protection Connector: YesInput Connector Type: Hardwire Terminal BlockOUTPUTCapacity (VA): 10000Capacity (Watts): 10000On Battery Waveform: Pure Sine WaveOn Battery Voltage(s) (Vac): 200 ± 2%/208 ± 2%/220 ± 2%/230 ± 2%/240 ±2%Output Voltage Setting: ConfigurableOn Battery Frequency (Hz): 50 ± 0.5% 60 ± 0.5%Overload Protection: Internal Current Limiting, Circuit BreakerOutlet(s) – Total: 11Outlet Type: Hardwire Terminal Block x1/IEC C19 x 2/IEC C13 x8Outlet(s) - Battery & Surge Protected: 11Outlet(s) – Critical Load (CL): 6Outlet(s) – Non –Critical Load (NCL): 5Typical Transfer Time (ms): 0BATTERYRuntime at Half Load (min): 11Runtime at Full Load (min): 4Typical Recharge Time (Hours): 5Start on Battery: YesSmart Battery Management (SBM): YesUser-replaceable: YesHot-swappable: YesBattery Type: Sealed Lead-acidReplacement Battery Pack: RBP0072RBP Qty (pcs): 2Battery Qty (Each RBP) (pcs): 10Battery Voltage (Each RBP) (V):120Single Battery Capacity (AH): 12V9AHExtended Battery Module (EBM):BPE240V50ART3UMax EDM Qty:10
