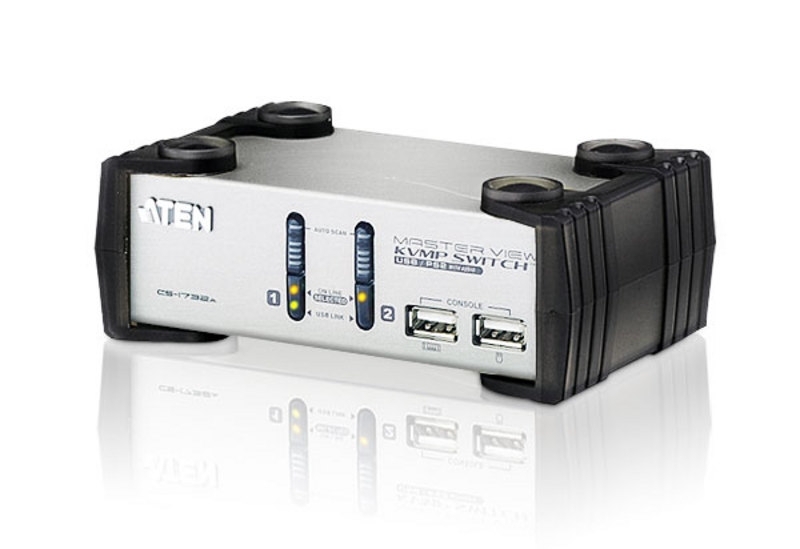

Aten 2 Port Usbkvmp Switch With Audio And Usb 1.1 Hub Cs1732Ac-At

$148.00
SKU: 271908
MPN: CS1732AC-AT Link
Manufacturer: https://www.aten.com/
Brand: Aten
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
2-Port USB KVMP Switch
CS1732A 2 Port KVM Switch has built-in USB on each of the front and rear panels and audio signal connectors. It allows users to control the computer and peripheral devices via a signal console at ease.


Patent NO. : CN ZL 01260527.1 ,TW 081926 ,US 6464197 ,TW I220489 ,TW 203183 ,US 6957287 ,CN ZL 02301203.X ,TW I220476 ,DE 202004004227.4 ,US 7047344 ,CN ZL 99213861.2 ,TW 174875 ,US 6564275

Features
One USB console controls 2 computers and two additional USB devices
2 port USB Hub built in
Dual interface supports computers with PS/2 or USB keyboards and mice
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
With speaker and microphone support
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
Auto PS/2 and USB interface detection
Buzzer On/Off via hotkey
Keyboard and mouse emulation for error free booting
Computer selection via front panel pushbuttons and hotkeys
Superior video quality - up to 2048 x 1536; DDC2B
Firmware upgradable
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers
Package Content
1x 2-Port USB KVMP Switch
2x USB KVM Cables
1x USB-to-PS/2 Converter
1x Firmware Upgrade Cable
1x User Manual
1x Quick Start Guide
Computer Connections 2
Port Selection Hotkeys, Pushbutton
USB Port/Audio Port Selection Hotkey
Connectors Console Ports Keyboard 1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Black)
Mouse 1 x USB Type A Female (White)
Speaker 1 x Mini Stereo Jack Female(Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
KVM Ports Keyboard/Video/Mouse 2 x SPHD-15 Female (Yellow)
Speaker 2 x Mini Stereo Jack Female (Green)
Microphone 2 x Mini Stereo Jack Female (Pink)
USB Hub 2 x USB Type A Female (Black)
F/W Upgrade 1 x RJ11 Female (Black)
Power 1 x DC Jack
Switches Port 2 x Pushbutton
F/W Upgrade 1 x Slide
LEDs On Line/ Selected 2 (Orange)
USB Link 2 (Green)
Emulation Keyboard/Mouse USB
Video 2048 x1536; DDC2B
Scan Interval 1~99 seconds
Power Consumption DC5V, 1.2W
Environment Operating Temp. 0~50C
Storage Temp. -20~60C
Humidity 0~80% RH, Non-densing
Physical Properties Housing Metal
Weight 0.49 kg
Dimensions ( L x W x H ) 14.00 x 8.70 x 5.50 cm
