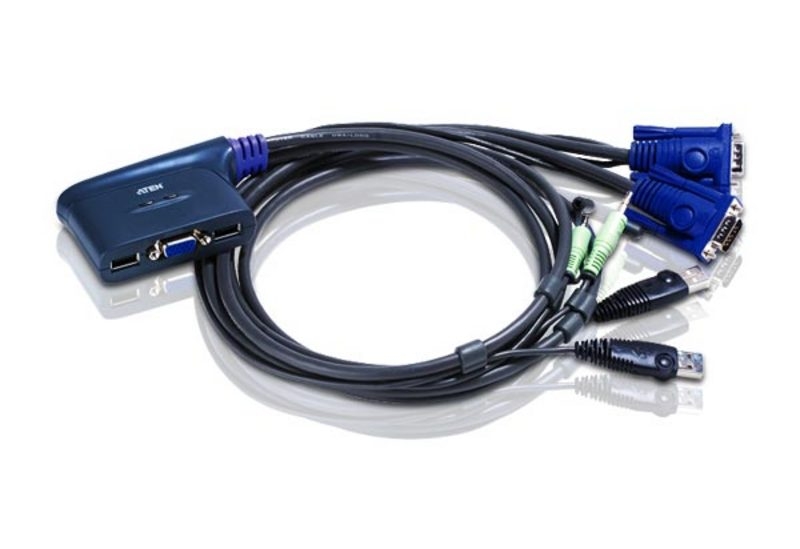

Aten 2 Port Usb Vga / Audio Cable Kvm Switch Support Audio, 0.9m Cable. Support Audio, Video Dynasync
, Mouse emulation, Keyboard emulation CS62US-AT
$72.00
| SKU: | 241517 |
|---|---|
| MPN: | CS62US-AT Link |
| Manufacturer: | http://www.aten.com/ |
| Brand: | Aten |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
- One USB console controls two USB computers
- Compact design, built-in 0.9 m cables
- Hotkey selection for OS and keyboard language
- Computer Selection via hotkey and USB mouse NEW!
- Multiplatform support - Windows, Linux, Mac, Sun
- Video DynaSync ™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse driver NEW!
- USB mouse port can be used for USB hub and USB peripheral sharing*
- Supports gaming keyboards NEW!
- Supports multifunction and wireless keyboards and mice NEW!
- All-in-one design
- With speaker support
- Superior video quality – up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Non-powered
- Sun/Mac keyboard support and emulation*
Specifications
▼
| Computer Connections | 2 |
| Port Selection | Hotkey, Mouse |
| Connectors | |
| Console Ports | 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) |
| KVM Ports | 2 x USB Type A Male (Black) 2 x HDB-15 Male (Blue) 2 x Mini Stereo Plug Male (Green) |
| LEDs | |
| Selected | 2 (Green) |
| Cable Length | |
| Computer | 0.9 m (3 ft) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 2048 x 1536, DDC2B |
| Scan Interval | 5 seconds |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.28 kg ( 0.62 lb ) |
| Dimensions (L x W x H) | 8.75 x 6.08 x 2.80 cm (3.44 x 2.39 x 1.1 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Vendor Info
▼
Our total USB solution. Link two USB computers to one USB console for a complete USB system compatible with all operating platforms: PC, Mac and Sun.
- One USB console controls two USB computers
- Compact design, built-in 0.9 m cables
- Hotkey selection for OS and keyboard language
- Computer Selection via hotkey and USB mouse NEW!
- Multiplatform support - Windows, Linux, Mac, Sun
- Video DynaSync ™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse driver NEW!
- USB mouse port can be used for USB hub and USB peripheral sharing*
- Supports gaming keyboards NEW!
- Supports multifunction and wireless keyboards and mice NEW!
- All-in-one design
- With speaker support
- Superior video quality – up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Non-powered
- Sun/Mac keyboard support and emulation*
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
CS-62US
